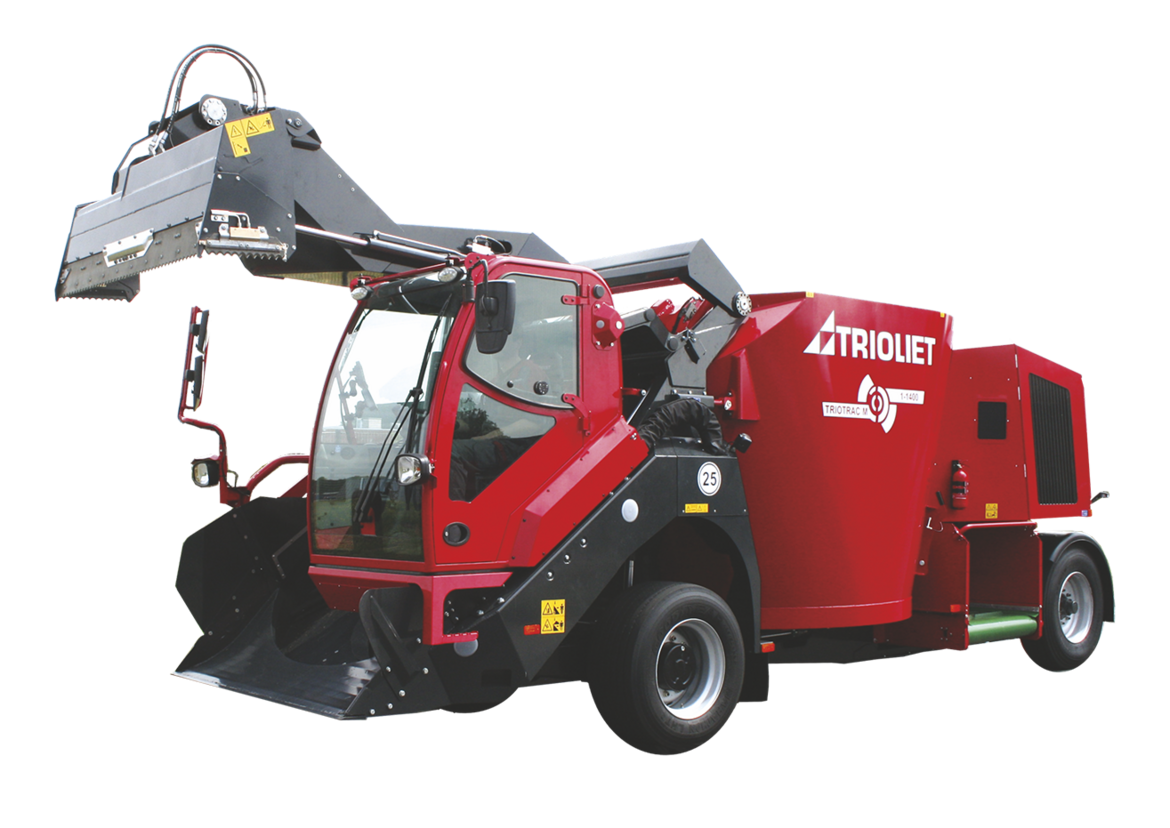

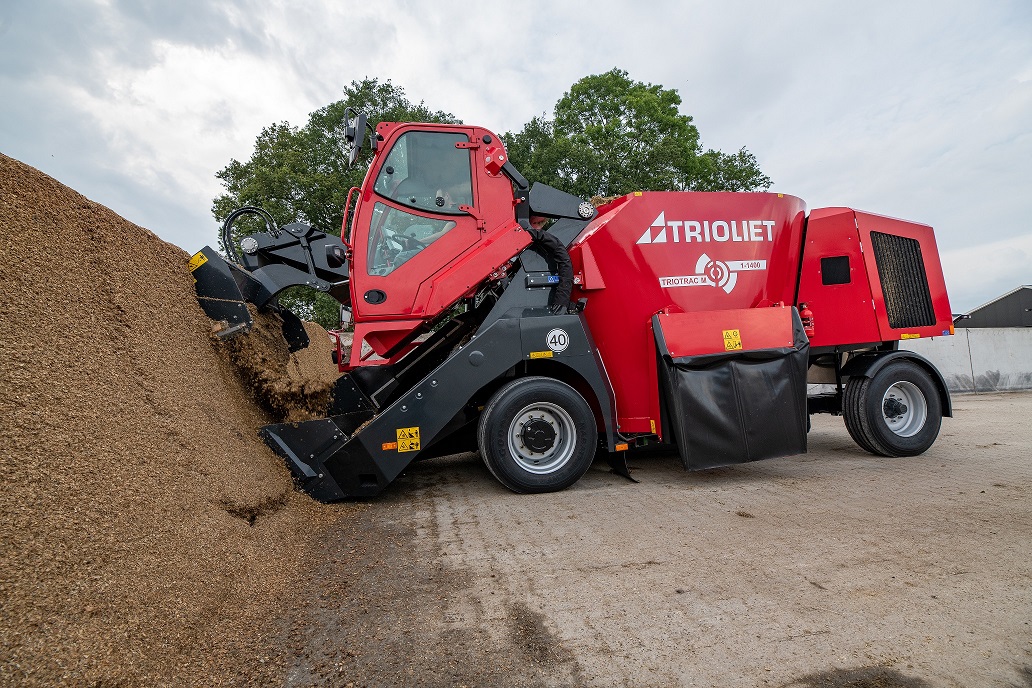

Triotrac M self-propelled feed mixer with loading rotor

    The Triotrac M is a compact self-propelled feed mixer with a single vertical auger. The feed is loaded into the loading rotor using a cutting/loading system, where it is simultaneously transported to the mixing tub. The compact self-propelled feed mixer is extremely agile, making it suitable for low buildings and cramped yards. A small turning circle paired with four-wheel steering makes the Triotrac M especially easy to manoeuvre between buildings and in silage pits. The Triotrac M is available in 14 and 17 m3.

    attributes

    Capacity 14 and 17 m³
    Discharge type Side discharge doors or discharge at the rear
    Model Self-propeller

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video

      Standard features

      • Long Life mixing auger with 22mm flighting and 25mm wings
      • Choice of discharge by a cross belt conveyor in the back or two side discharge doors in the mixing tub
      • Four-wheel drive front-wheel drive
      • Steered rear axle
      • Max. speed 35 km/h
      • In height adjustable cab for optimum view
      • Silo facing by cutting with curve correction for a vertical, clean and tight silo face without undercutting
      • Wear resistant loading rotor with variable speed regulation
      • Hydrostatic driven front axle with internal multi-disc brakes and hydraulic suspension
      • Comfortable cab with air-suspensioned seat, folding side-window, heating, radio, screen wipers all around, front shield heating
      • Optimally formed mixing chamber with a hydraulically driven vertical Twin Stream auger with variable speed regulation
      • Air suspension seat
      • Triotronic 7600T weighing computer with touch screen
      • Reverse safety camera and alarm signal
      • Joystick operation in armrest, programmable load- and discharge modes (to preset machinefunctions for different ingredients, rations and different stables)
      • 1,85 m width cutting frame (U-shape)
      • Rimote system by WiFi
      • Heated windscreen and electrically adjustable and heated mirrors
      • Trioform auger knives

      Technical specifications

      Triotrac M 1400 AL 1400 ZK 1700 AL 1700 ZK
      Capacity m3 14 14 17 17
      Length m 8,06 7,46 8,06 7,46
      Width m 2,55 2,82 2,55 2,82
      Height m 2,80 2,80 3,20 3,20
      Silage cutting heigth max. m 4,50 4,50 4,50 4,50
      Silage cutting width m 1,85 1,85 1,85 1,85
      Silage cutting depth m 0,40 0,40 0,40 0,40
      Max. speed for yard use km/h 20 20 20 20
      Max. speed during road transport km/h 35 35 35 35
      Tyre size, front 385/65
      R 22.5
      385/65
      R 22.5
      385/65
      R 22.5
      385/65
      R 22.5
      Tyre size, rear 315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
