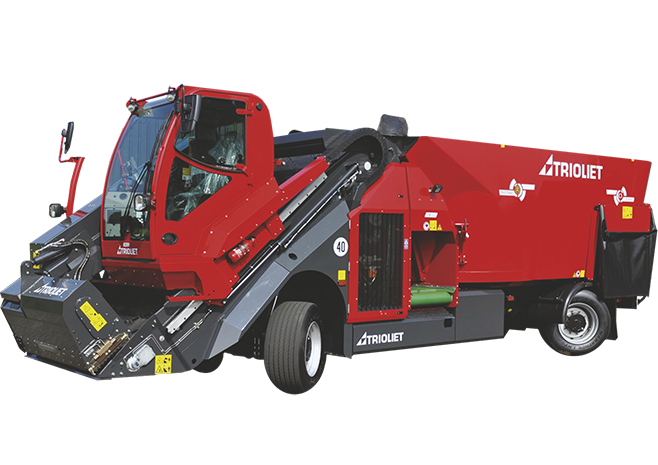

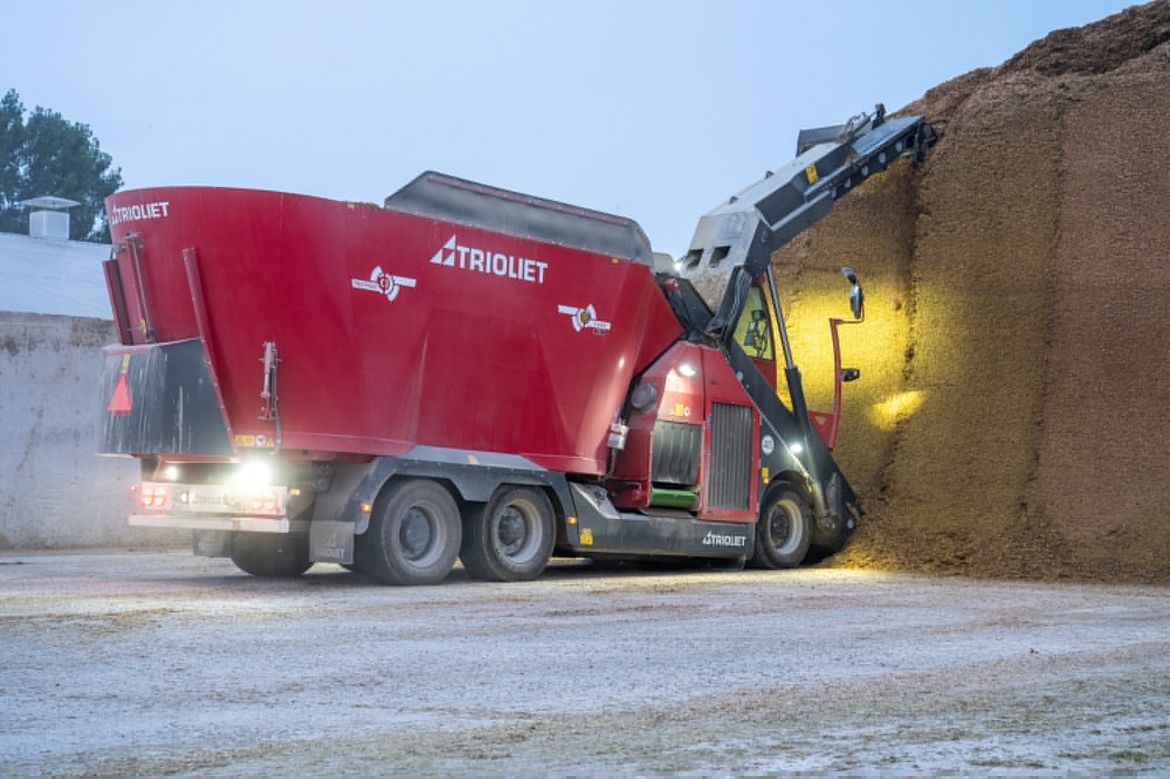

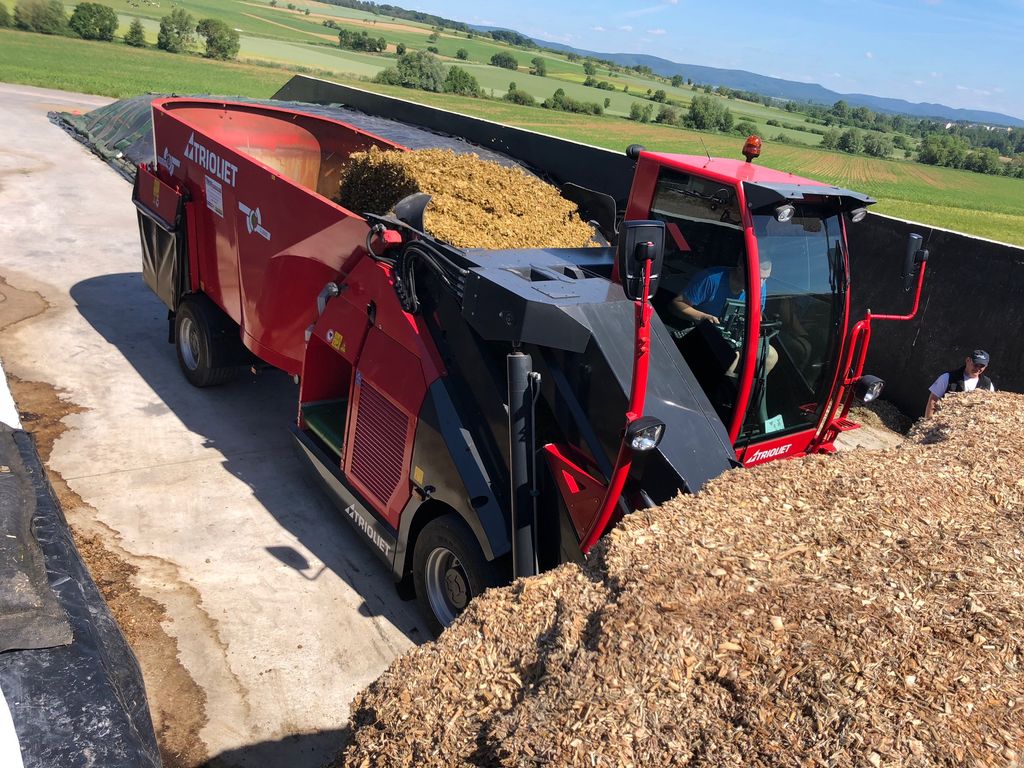

Triotrac self propelled feed mixer

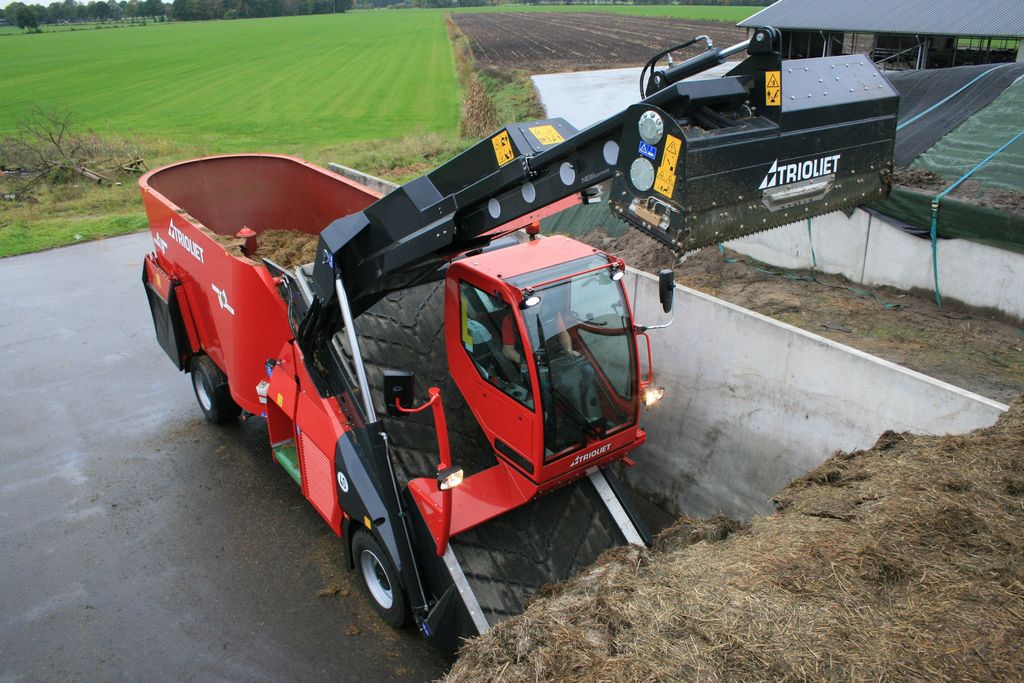

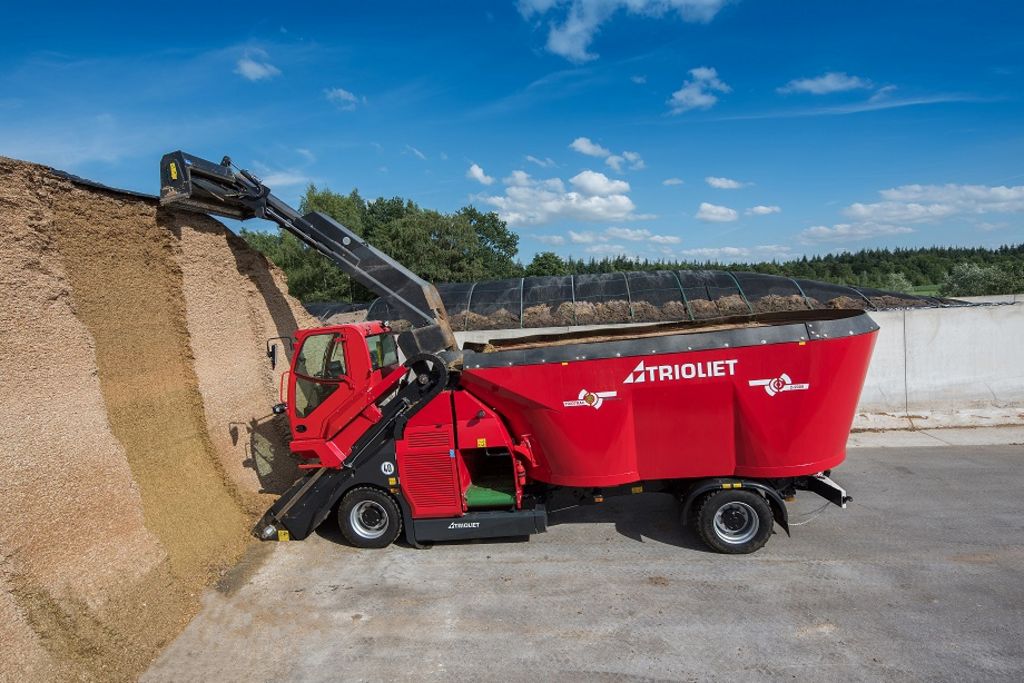

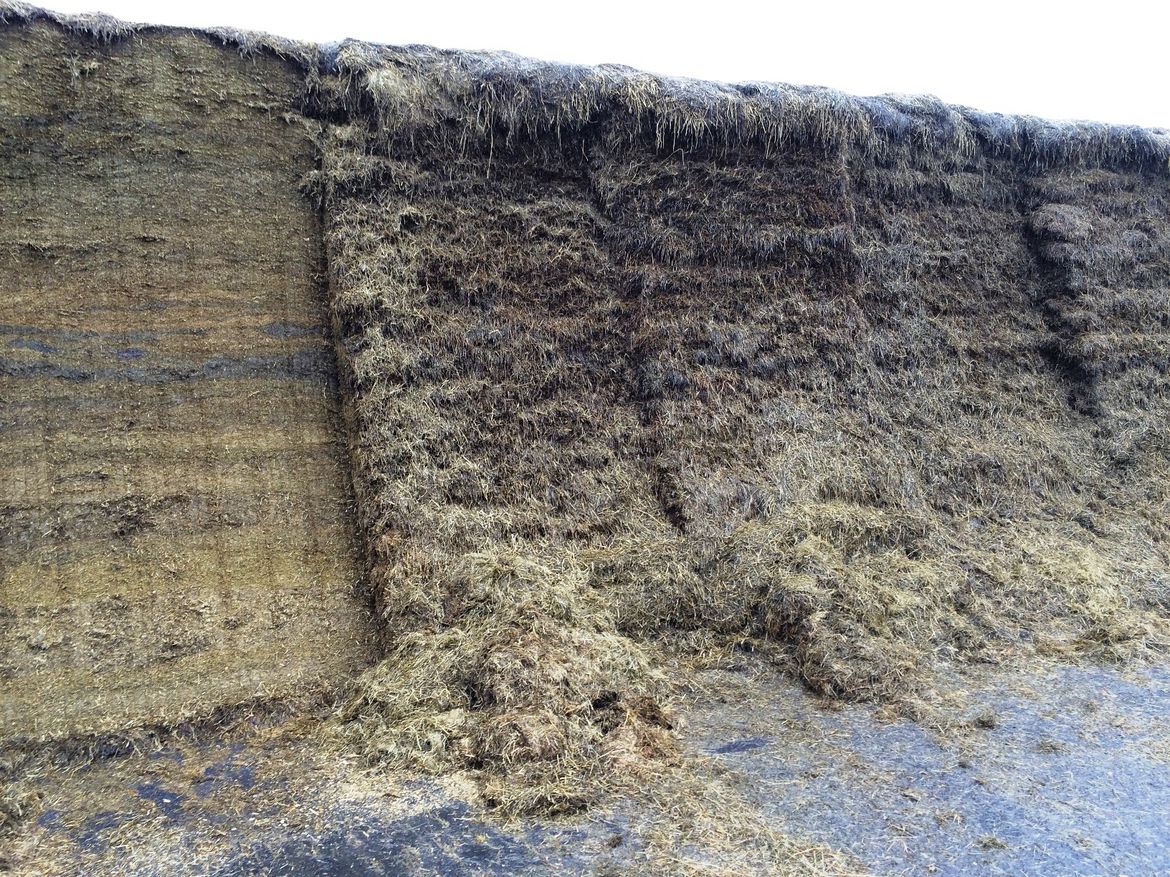

    The Triotrac is renowned for its huge capacity. It can cut and load up to 2,500 kg of grass silage per minute with silage extraction up to 6 metres high. The machine guarantees exceptional results day in, day out. Some of our clients use the self-propelled mixer wagon for up to ten hours a day. The Triotrac self-propelled feed mixer is available with a discharge unit at the front or rear and in 17, 20 and 24 m³ capacities. The cutting and loading system is unique and leaves the feed structure intact, which offers a sizeable (financial) advantage. Learn more about the advantages of silage extraction with the knives / cutting system.


    Capacity 17-24 m³
    Discharge type Front, side or rear discharge
    Model Self-propelled

    Choice of discharging units

      Explanation of abbreviations

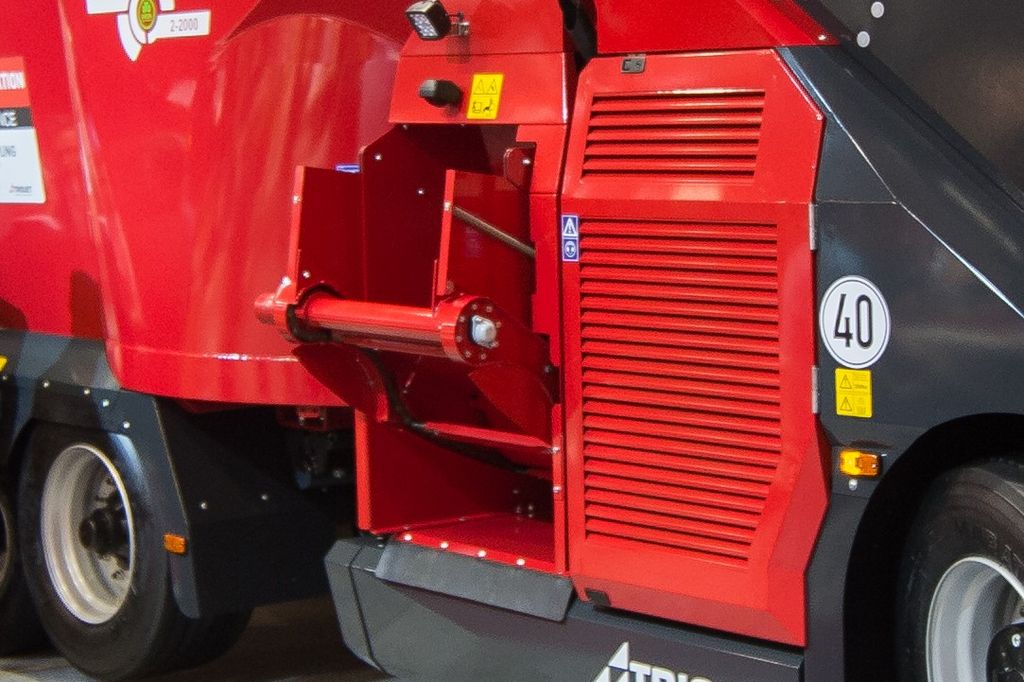

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

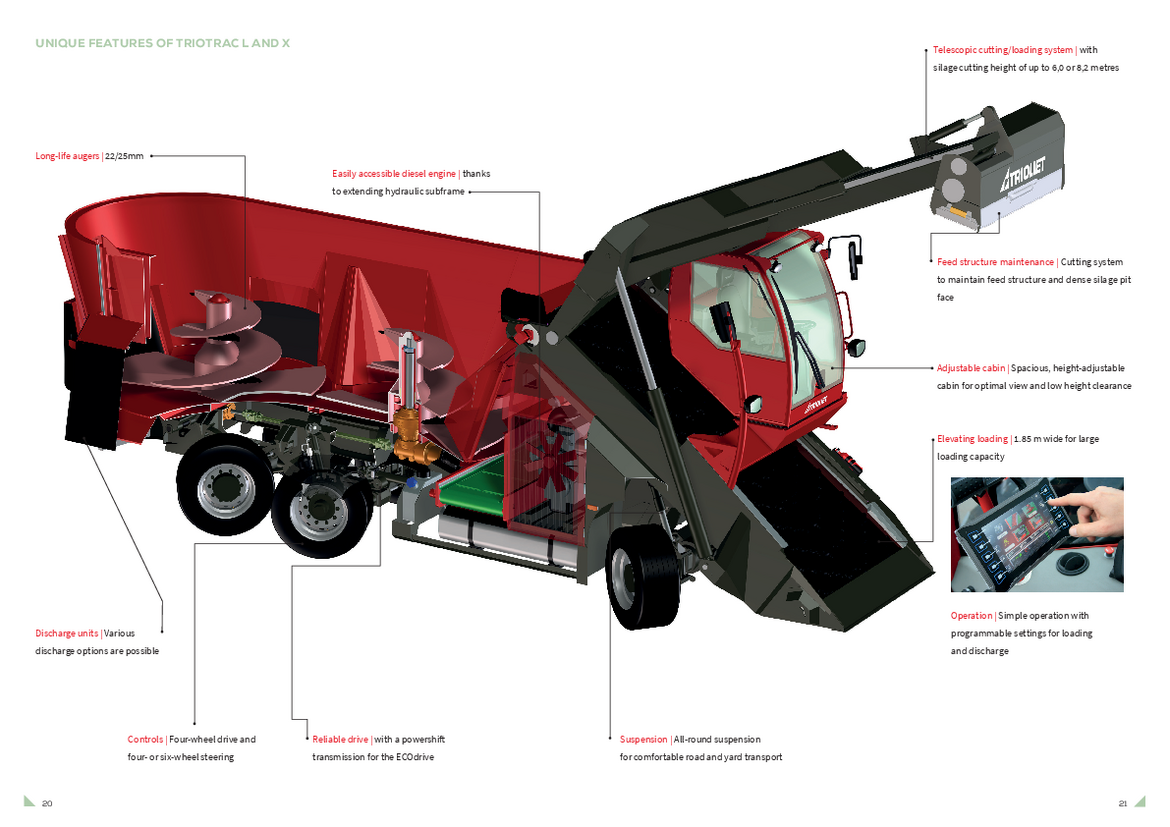

      Standard features

      • Two hydrostatically driven vertical Twin Stream mixing augers with continuously variable speed control

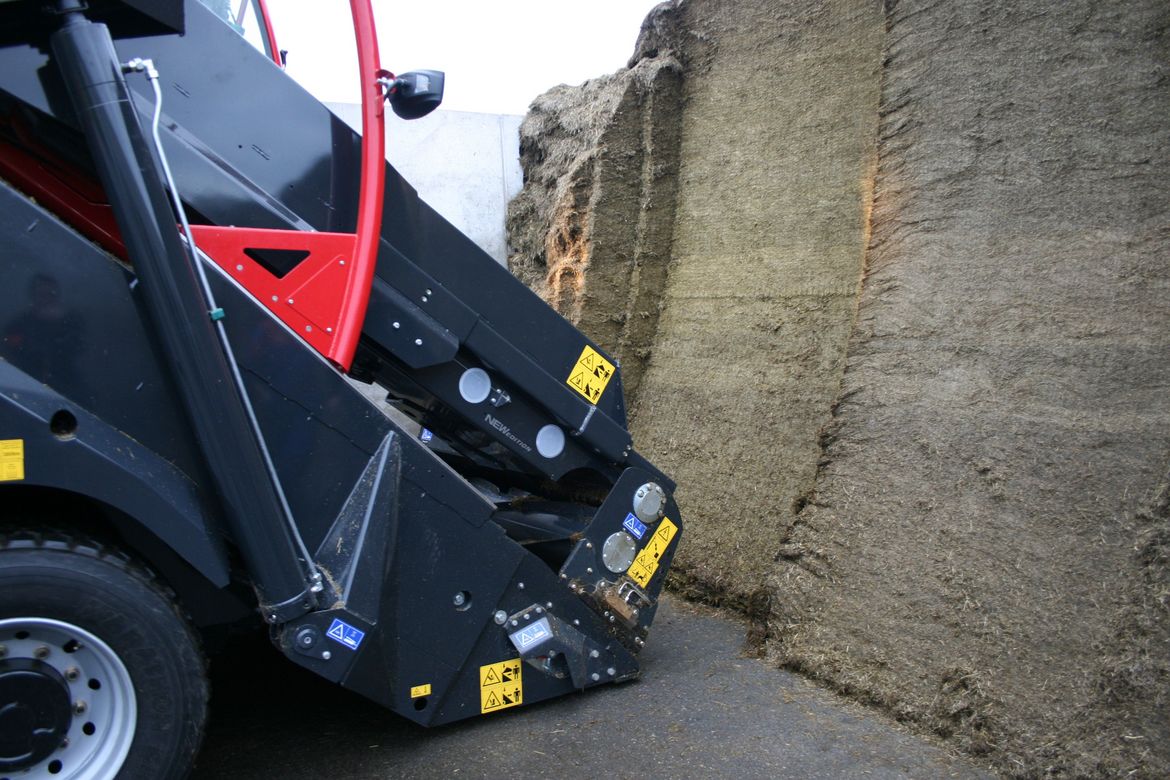

      • U-shaped cutting head with integrated loading conveyor
      • Telescopic loading arm with cutting curve correction for a smooth silage pit without any overhang on the pit face
      • 1.85 m wide elevating conveyor belt with continuously variable speed control
      • Hydrostatic drive with powershift transmission for ECOmode for road transport, for example
      • Hydraulic front suspension and parabolic spring rear suspension
      • 4-wheel drive and 4-wheel steering
      • Turbo diesel engine
      • Work lights on all sides
      • Comfortable cabin with opening side window, radio, windscreen wipers, automatic climate control with air conditioning
      • Rear-view camera
      • Heated windscreen and electrically adjustable heated mirrors
      • Acoustic reversing signal
      • Trioform auger knives
      • Cleanfix engine cooling system with temperature-sensitive control and radiator cleaning
      • Cross conveyor belt with speed control at the front of the mixing tub

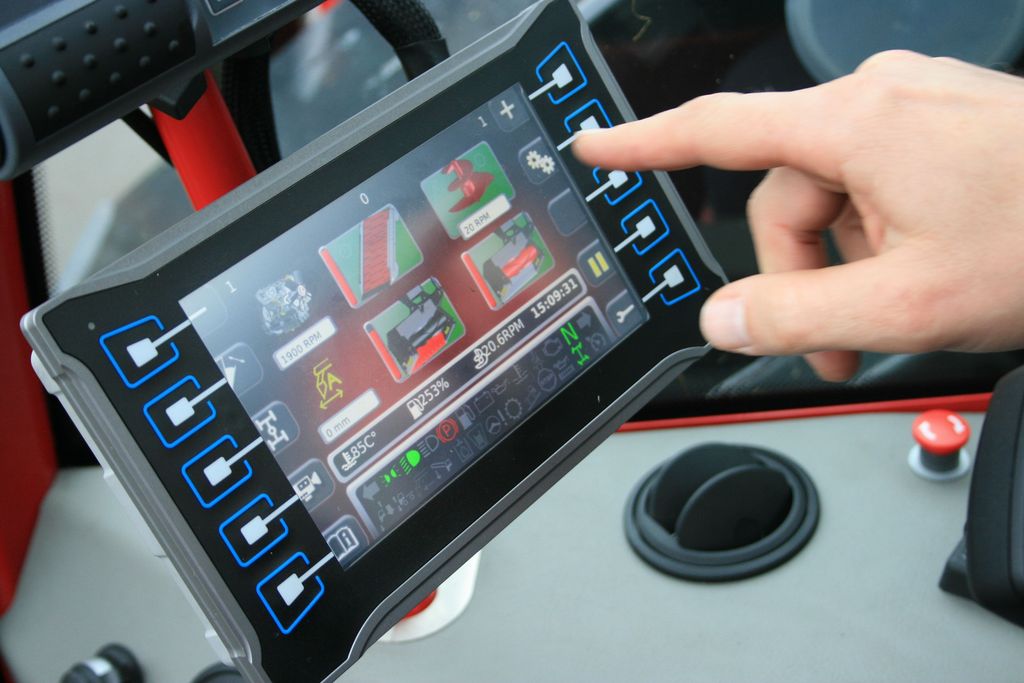

      • Programmable weighing computer with touchscreen (Triotronic 7600T)
      • Hydraulic height-adjustable cabin
      • Joystick control, programmable loading and discharge settings
      • Cruise control
      • Remote services

      Technical specifications

      Triotrac  1700 2000 2400
      Capacity m3 17 20 24
      Length m 9,70 10,20 10,25
      Width m 2,44 2,44 2,44
      Height m 2,95 2,95 3,30
      Silage cutting heigth max. m. 6,00 6,00 6,00
      Silage cutting width m.  1,85 1,85 1,85
      Silage cutting depth m. 0,40 0,40 0,40
      Max. speed for yard use km/h 20 20 20
      Max. speed during road transport km/h 40 40 40
      Tyre size 435/50
      R 22.5
      R 22.5
      R 22.5
