UKW 3500 self-loading feeder

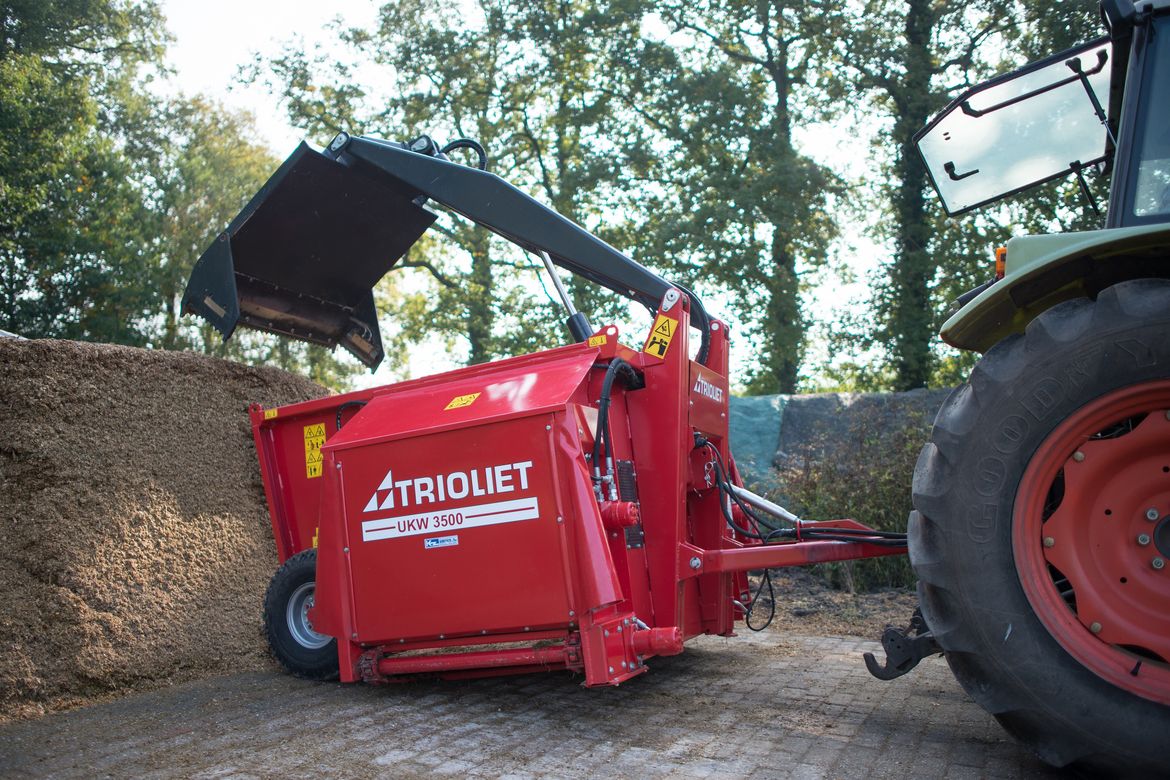

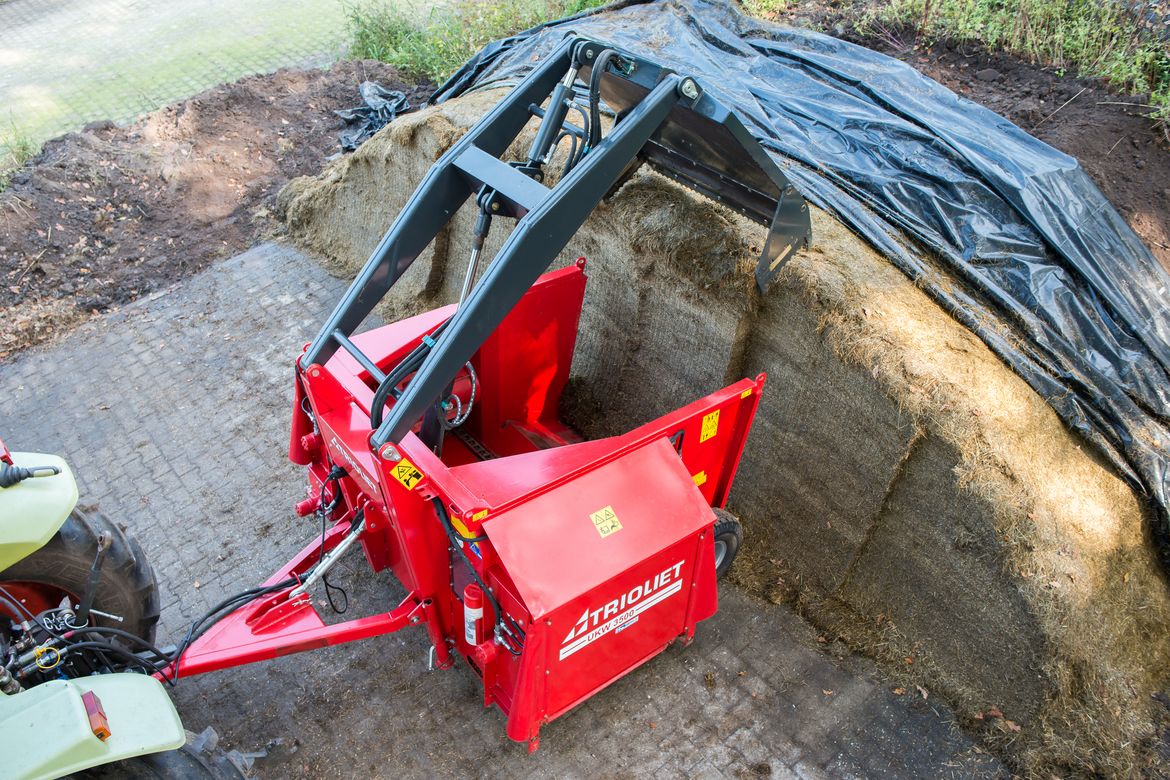

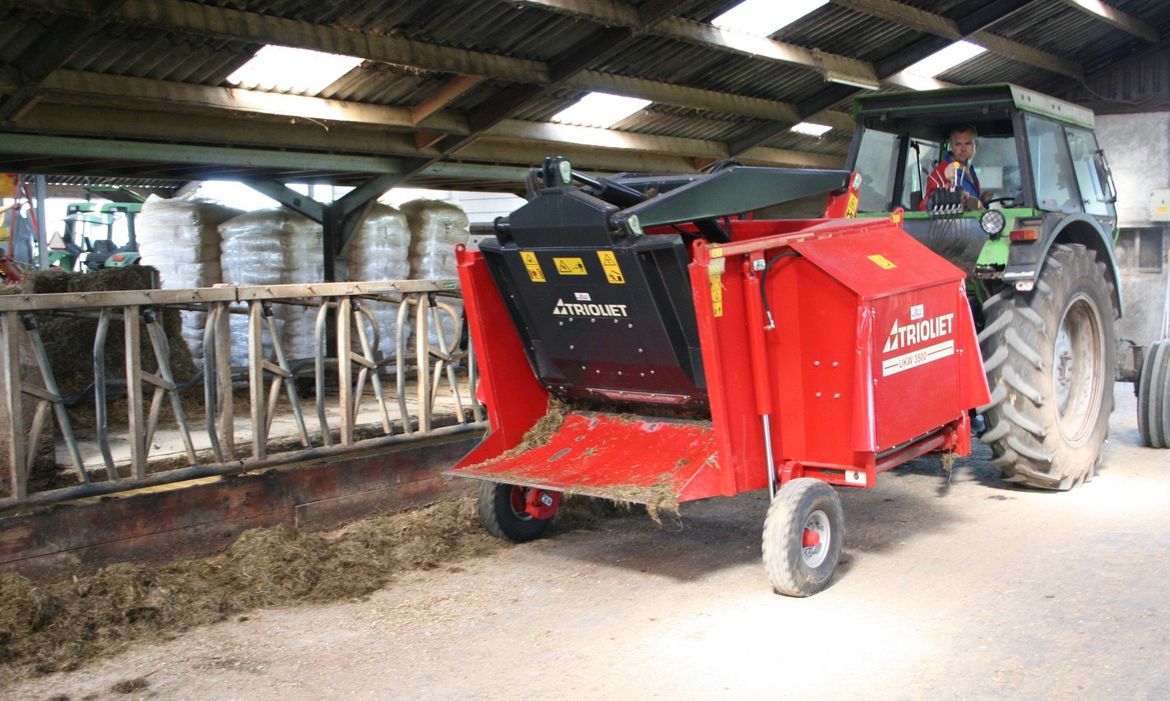

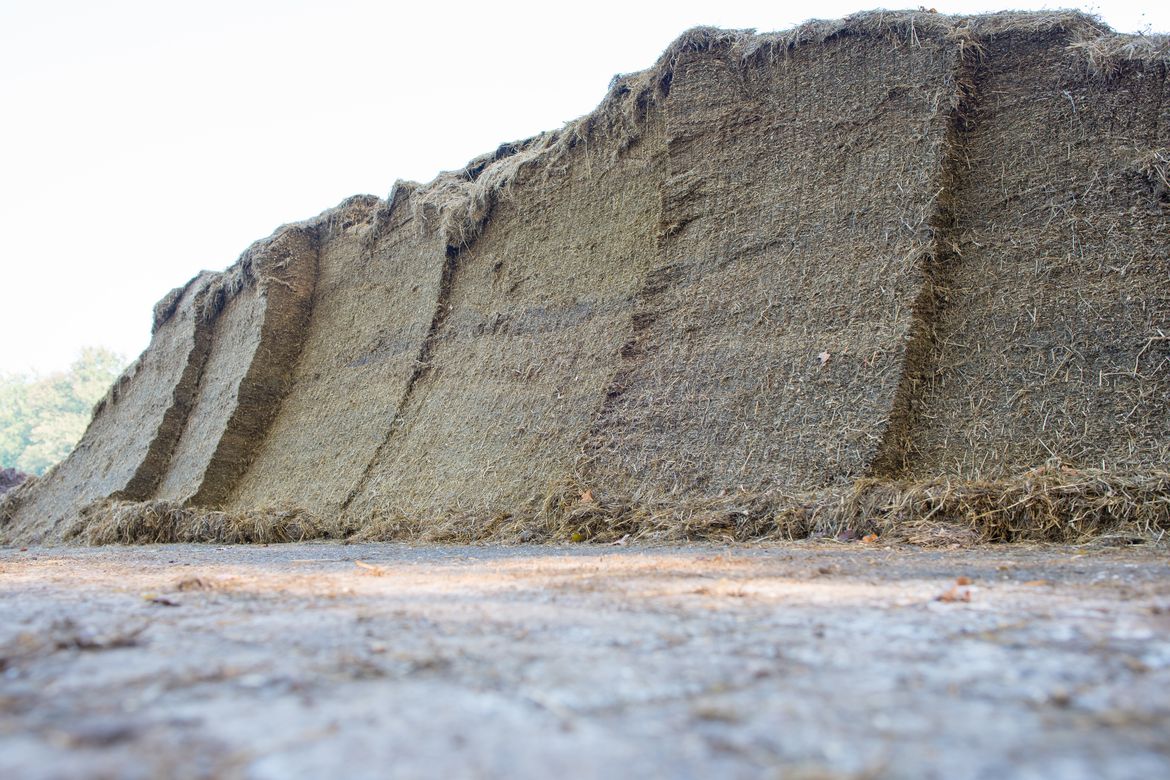

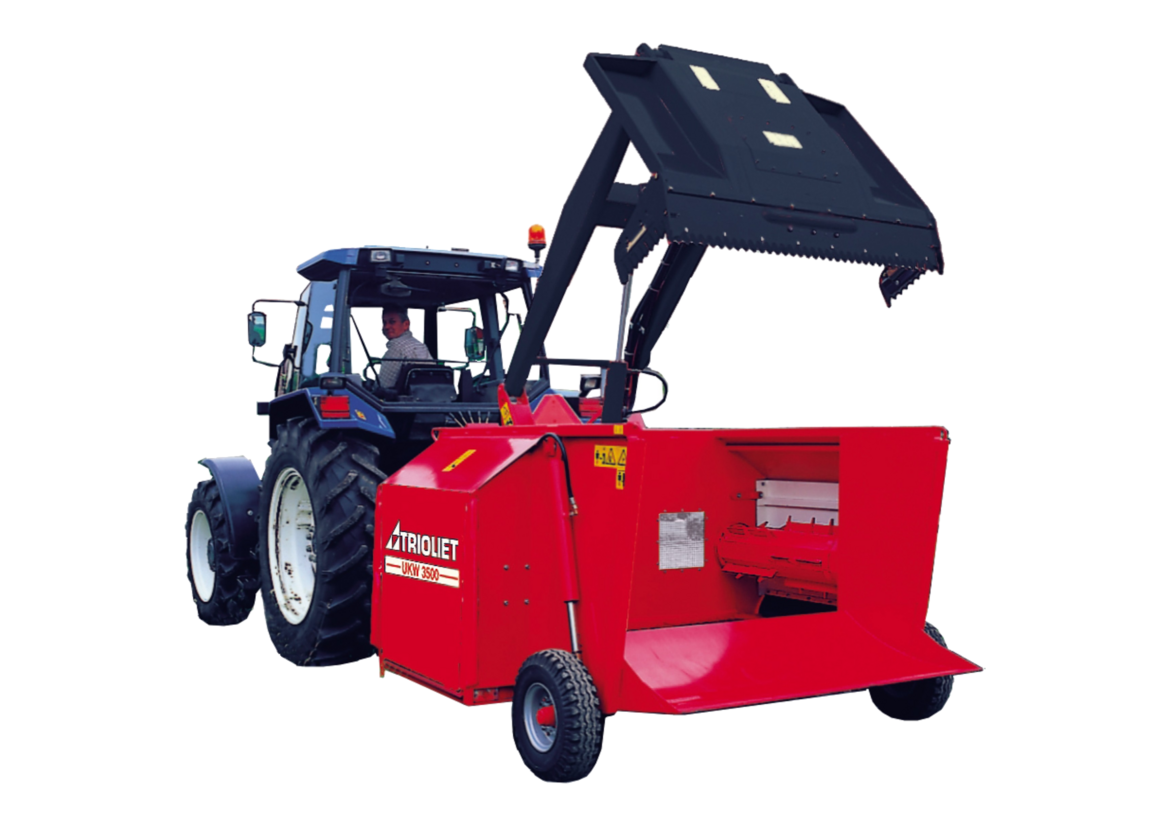

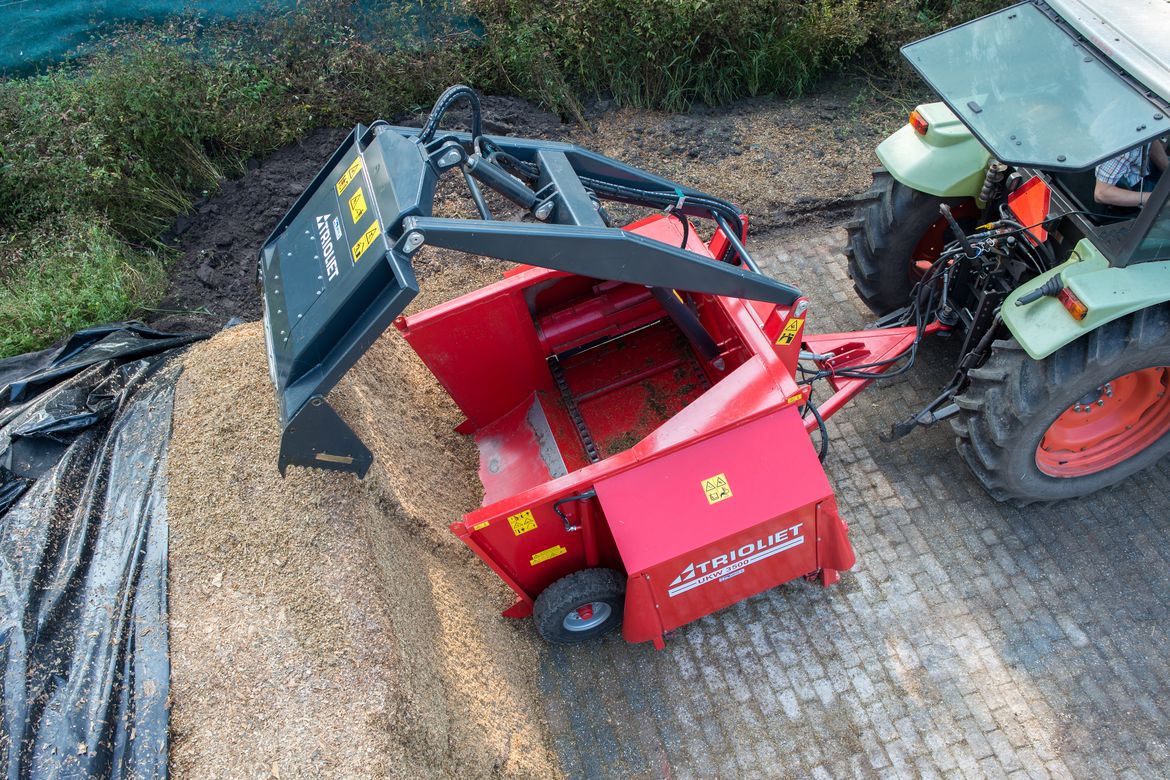

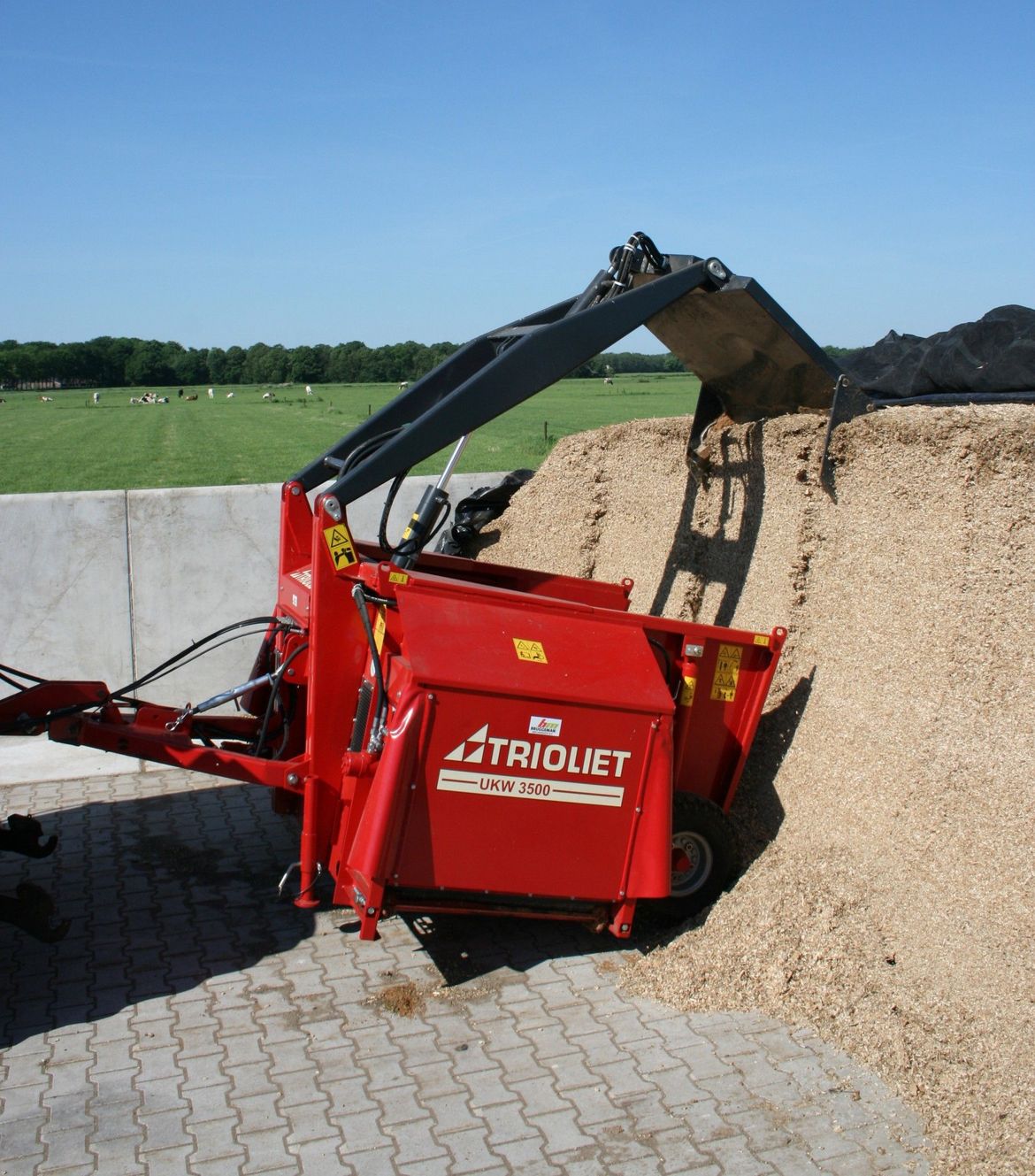

    The UKW is a self-loading feeder with a volume of 3 or 5.5 m3. Where a silage stack stands at least 2 metres high, its U-shaped cutting board will cut a silage block measuring approximately 1 m3 . The manoeuvrability of this compact machine makes it ideal for use in combination with a lightweight tractor in U-shaped stalls and in stalls with narrow feeding alleys. The UKW 500 is designed to deal with the heaviest types of grass silage.

    attributes

    Capacity 3 m³
    Discharge type Side discharge door

    Photos

    Video

    Standard features

    • Double single loading arm
    • Fully protected side-doors
    • Side-protection roller
    • Step-less speed regulation

    Technical specifications

    UKW 3500
    Capacity m3 3,00
    Length m 3,40
    Width m 2,29
    Height m 1,60
    Max. payload . kg 2.150
    Discharge height (max.) m 0,50
    Silage cutting height (max.)* m 3,30
    Width of cutting system m 0,50
    Net weight in kg.  1.410

    * With raised wagon
