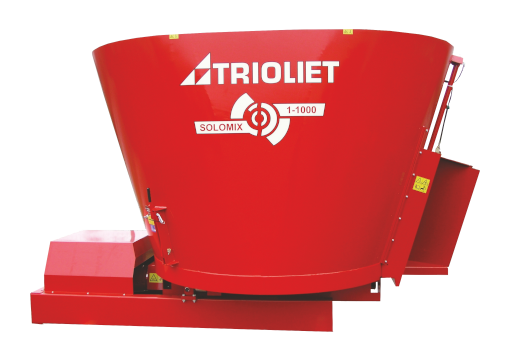

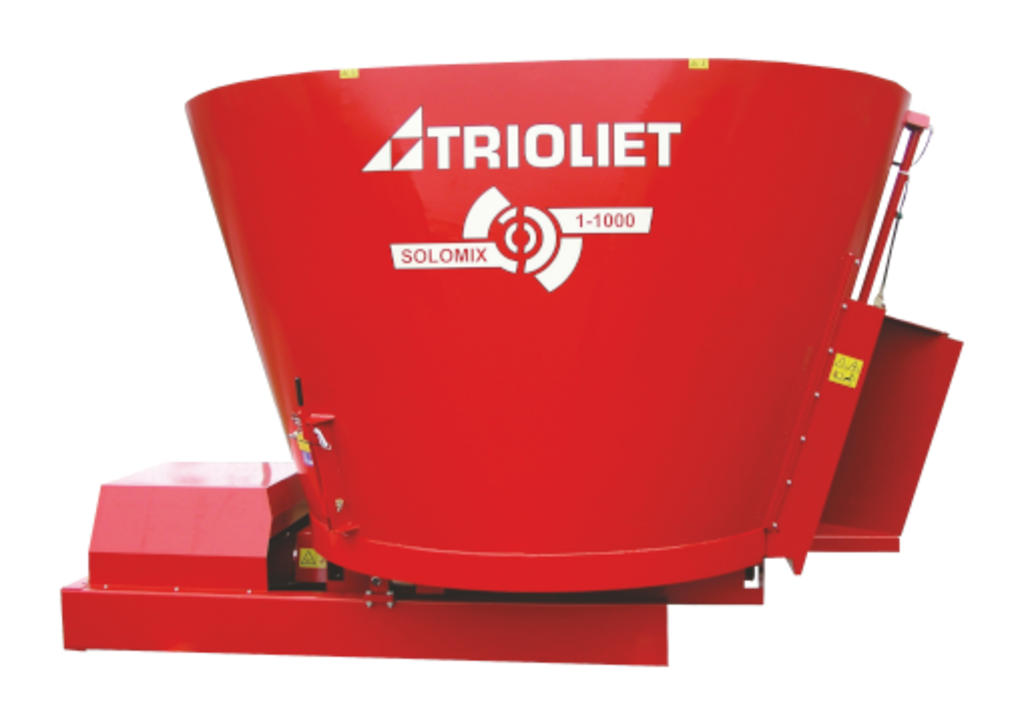

Solomix 1 stationary feed mixer for Biogas

    The challenge facing every biogas producer is to generate as much energy as possible with a minimum amount of input. Generating a positive yield is not always easy, however. A major factor is the type of delivery system used to transport the residual feed to the digester. Trioliet supplies stationary mixers with vertical augers and capacities ranging from 10 to 80 m³. The Solomix 1 STAT Biogas features 1 auger and is available in volumes ranging from 10-18 m³.

    attributes

    Capacity 10-18 m³

    Photos

    Video

    Standard features

    • The machine is equipped with one discharge door as standard
    • One mixing auger with planetary drive mechanism driven by an electric motor
    • Mixing augers with 15 mm winding / 18 mm auger wings
    • Three height-adjustable supports with the option to install weigh bars
    • Two manually operated counter knives
    • The discharge door is positioned directly opposite the drive side
    • Trioform auger knives

    Technical specifications


    Solomix 1 Biogas
    1000 1200 1400 1800
    Capacity m3 10 12 14 18
    Length (excl. motor) m 3.32 3.43 3.70 3.70
    Length (incl. motor) m 4.22 4.22 4.33 4.33
    Width m 2.29 2.29 2.44 2.44
    Height* m 2.45 - 2.75 2.65 - 2.95 2.70 - 3.00 3.30 - 3.60
    Nett weight kg.** 3.500 3.900 4.000 4.300
    Maximum payload kg. 5.000 6.000 7.000 9.000
    Number of auger knives  5 5 9 9
    Auger diameter mm Ø 2200 Ø 2200 Ø 2440 Ø 2440
    Required electrical installation Soft-start device / Freq. drive Soft-start device / Freq. drive Soft-start device / Freq. drive Soft-start device / Freq. drive
    Required electric motor power kW*** 15 18.5 22 30


    * The height of the supports can be adjusted by 300 mm
    ** Nett weight = excl. motor frame and electric motor
    *** Indicated required electric motor power valid up to max. payload
