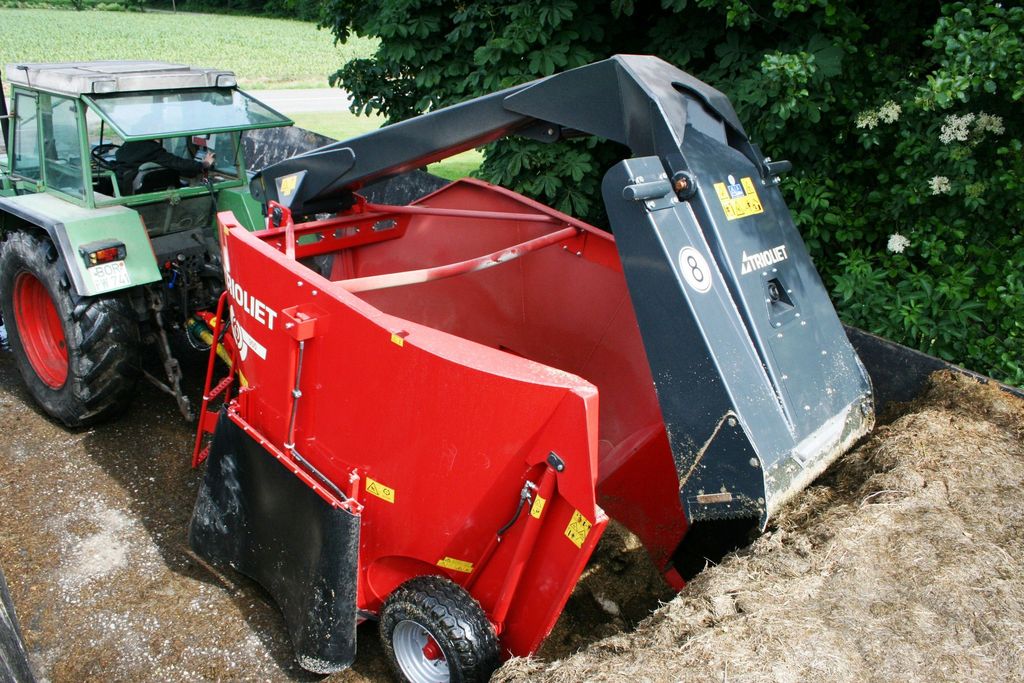

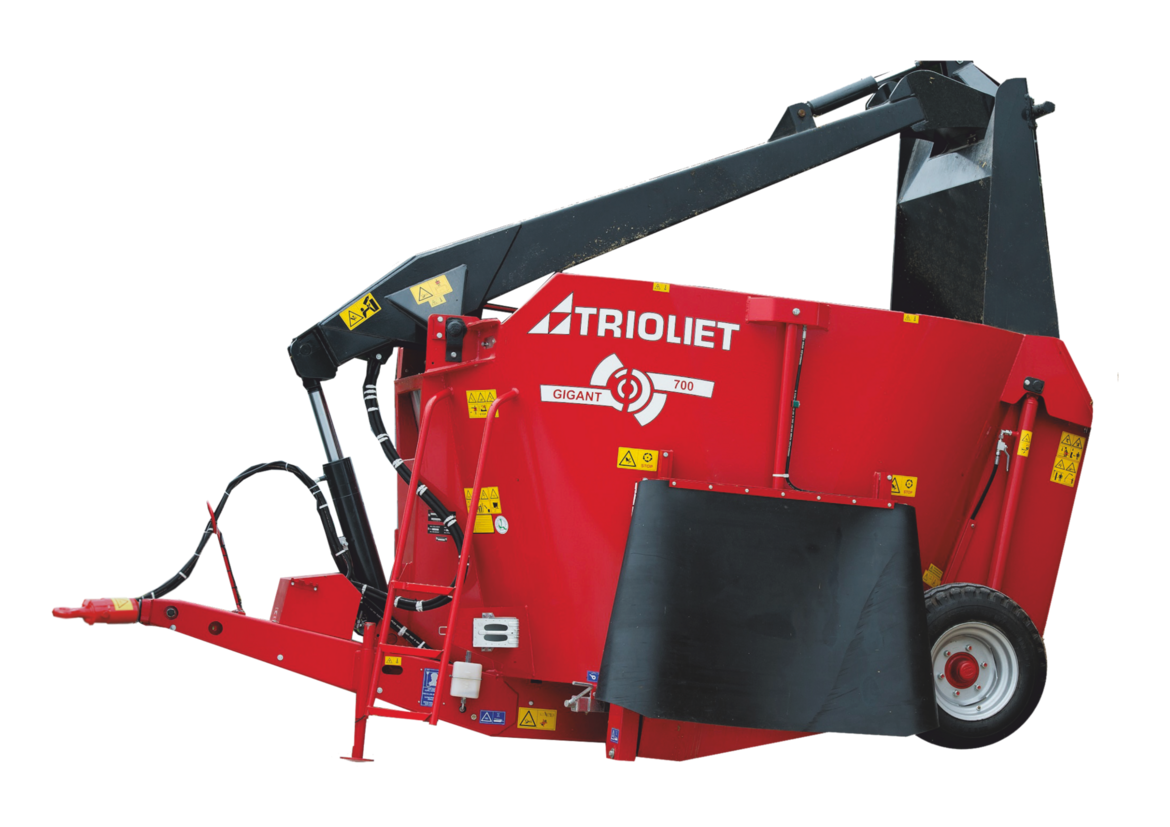

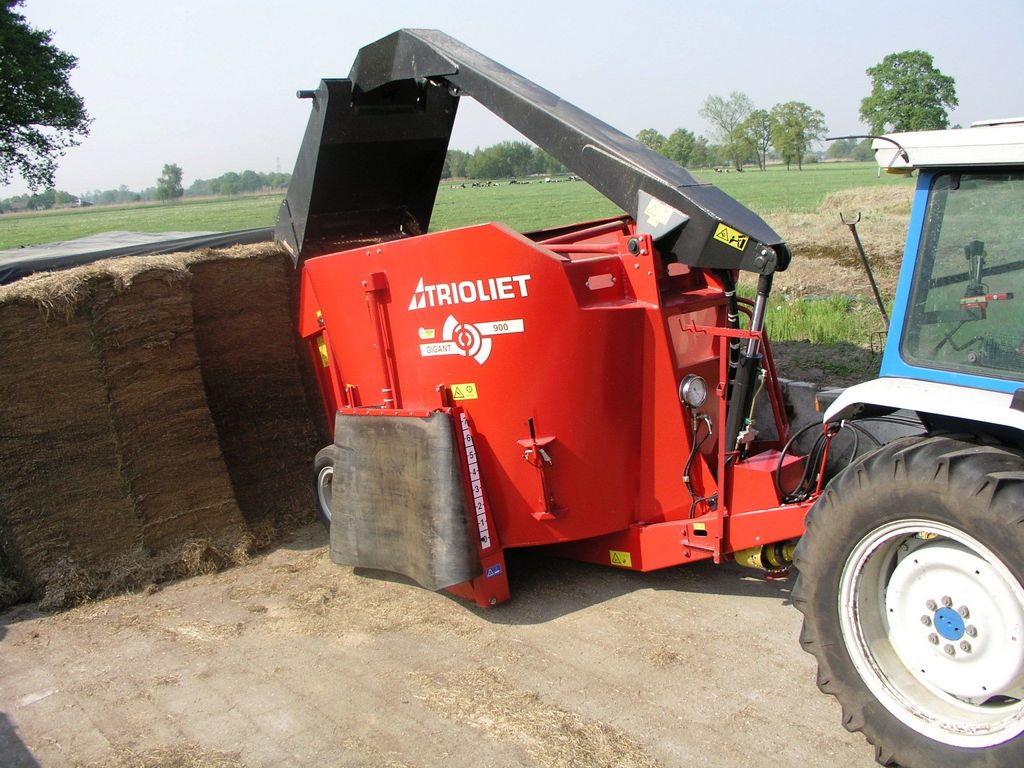

Gigant self-loading diet feeder

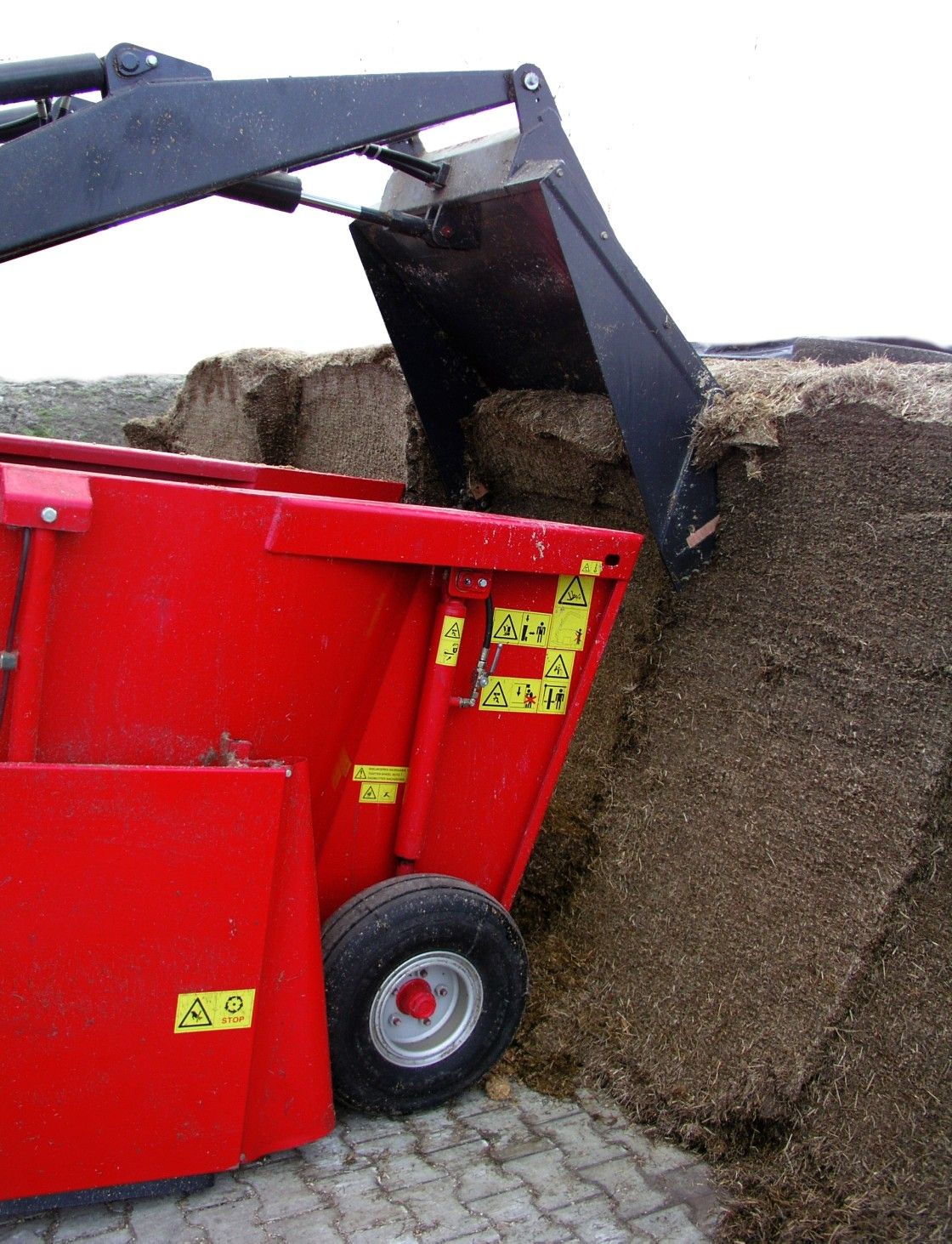

    The Gigant self-loading mixer wagon has an enormous loading capacity and preserves the structure and nutritional value of your feed. Its robust cutting board or grab allows easy loading of even large round or square bales and its unique cutting and loading system ensures that feed is cut from the silage without any loss of structure. In short, this is a compact, cost-saving feed mixer. The Gigant is available in volumes of  5, 7 and 9 m3.

    attributes

    Capacity 5-9 m³
    Discharge type Side discharge doors
    Model Selfloading

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • One vertical auger (15 mm flighting / 18 mm wings)
      • One restrictor blade
      • Wide-angle PTO shaft
      • Two wheels
      • Hydraulic loading arm
      • Adjustable drawbar for top connection (500) with 40 mm drawbar eye
      • Fixed drawbar for top connection (700-900) with 40 mm drawbar eye
      • Electric operation
      • Two side discharge doors with steel door covers
      • U-form hydraulic cutting system
      • with hydraulic brakes (700/900)
      • Trioform auger knives short

      Technical specifications

      Gigant 500 700 900
      Capacity m3 5 7 9
      Length m 3,99 4,74 4,94
      Width m 2,14 2,28 2,48
      Height m 2,41 2,61 2,75
      Discharge height m 0,55 0,70 0,70
      Maximum cutting height m 3,50 3,90 4,30
      Width of U-shaped cutting frame m 1,23 1,23 1,23
      Tractor power requirement HP (kW) 48 (35) 62 (45) 68 (50)
      Tyre size (2 x) 6.50-10 10.0/75-15.3 10.0/75-15.3
