Triomix (S) 1 self-loading diet feeder

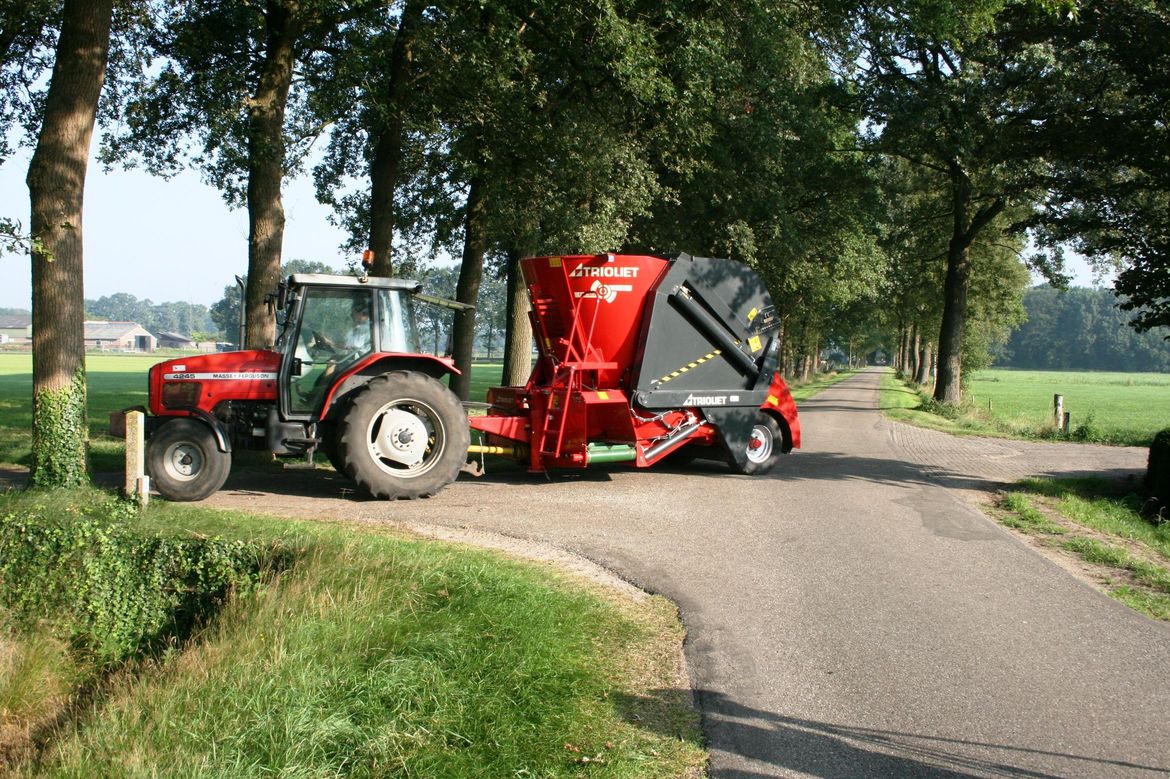

    The Triomix silage cutter and diet feeder is an economically appealing machine. This self-loading feed mixer permits just a single person and a single tractor to perform the entire loading, mixing and discharge process. The Triomix features a moving cutting knife and a purpose-designed cutting and loading system that guarantees minimum wastage during cutting and which maintains the structure of the feed. Thanks to its compact form and the excellent view to the rear from the tractor, the robust Triomix is very easy to manoeuvre. The Triomix is also available with a shear blade (Triomix S).

    attributes

    Capacity 8-12 m³
    Discharge type Front discharge
    Model Selfloading

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • One vertical Twin Stream auger (15 mm flighting / 18 mm wings)
      • One restrictor blade
      • Wide angle PTO-shaft
      • Hydraulic loading system
      • Adjustable and reversible drawbar with 40 mm drawbar eye

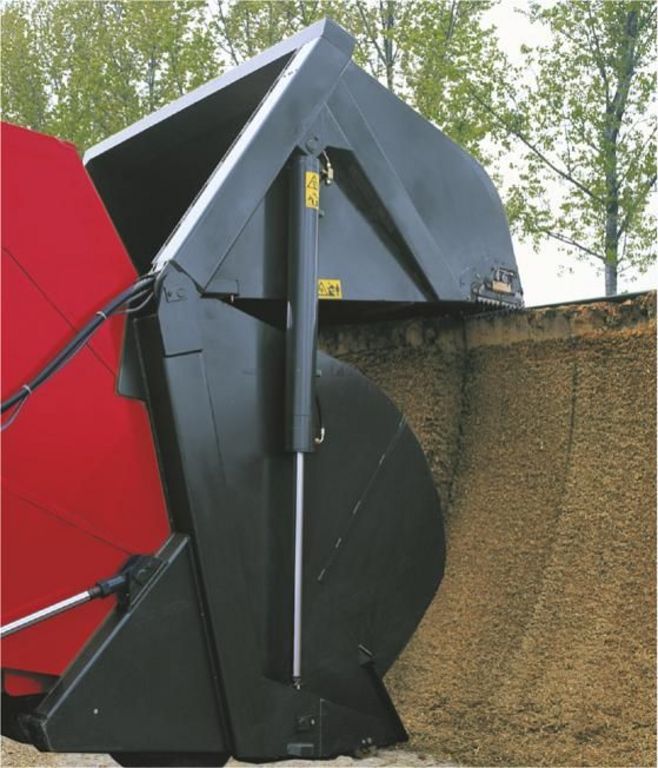

      • U-form frame with hydraulic cutting knife system
      • Front conveyor belt (w=0,75 m)
      • Two large single wheels
      • Electric operation
      • Wear ring
      • Sealing brush at loading board
      • With hydraulic brakes
      • Trioform auger knives short

      Technical specifications

      Triomix 1  800 1000 1200   Triomix S1 800 1000 1200
      Capacity m3 8 10 12     8 10 12
      Length m 4.98 5.16 5.16     4.98 5.16 5.16
      Width m 2.41 2.61 2.61     2.45 2.65 2.65
      Height m 2.81 2.82 3.02     2.76 2.76 3.07
      Discharge height m 0.54 0.55 0.55     0.55 0.55 0.55
      Maximum cutting height m 3.15 3.15 3.60     2.90 2.90 3.70
      Width of U-shaped cutting plate m 2.04 2.24 2.24     2.04 2.24 2.24
      Tractor power requirement HP (kW) 68 (50) 75 (55) 82 (60)     68 (50) 75 (55) 82 (60)
      Tyre size (2 x) 285/70
      R 19.5

      295/60
      R 22.5

      295/60
      R 22.5
          295/60
      R 22.5
      295/60
      R 22.5
      295/60
      R 22.5
