Vertifeed self-loading mixer wagon

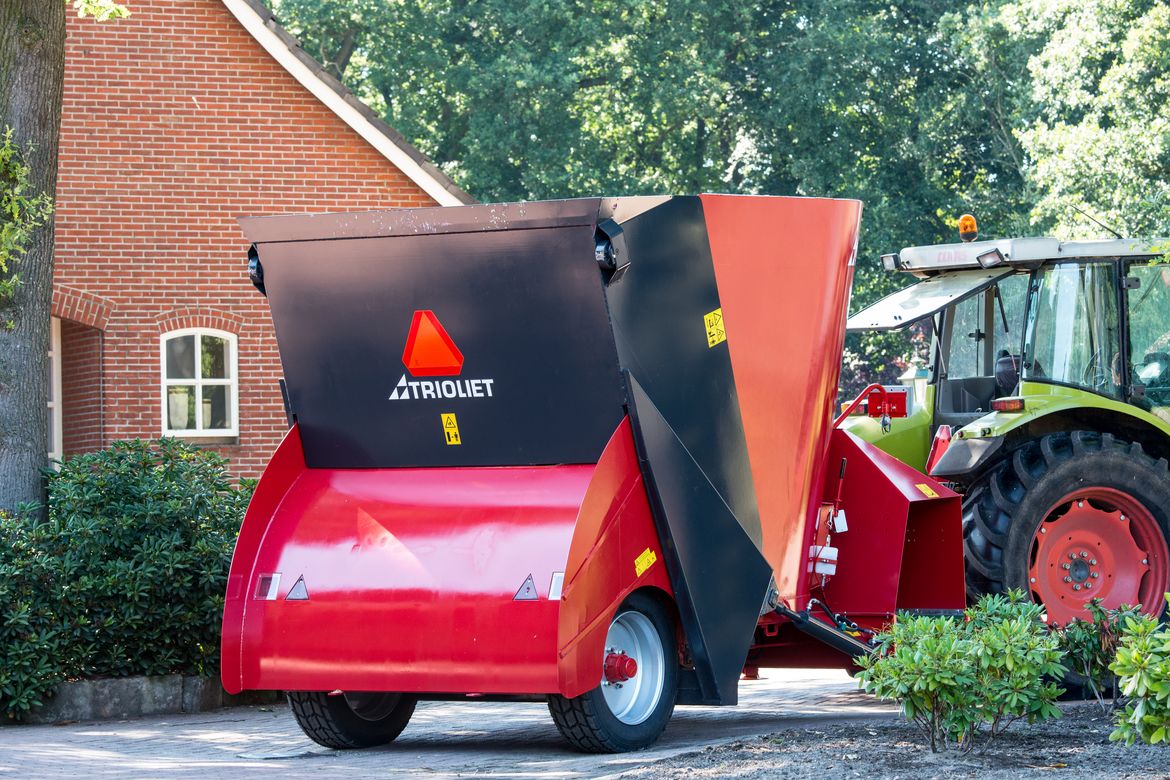

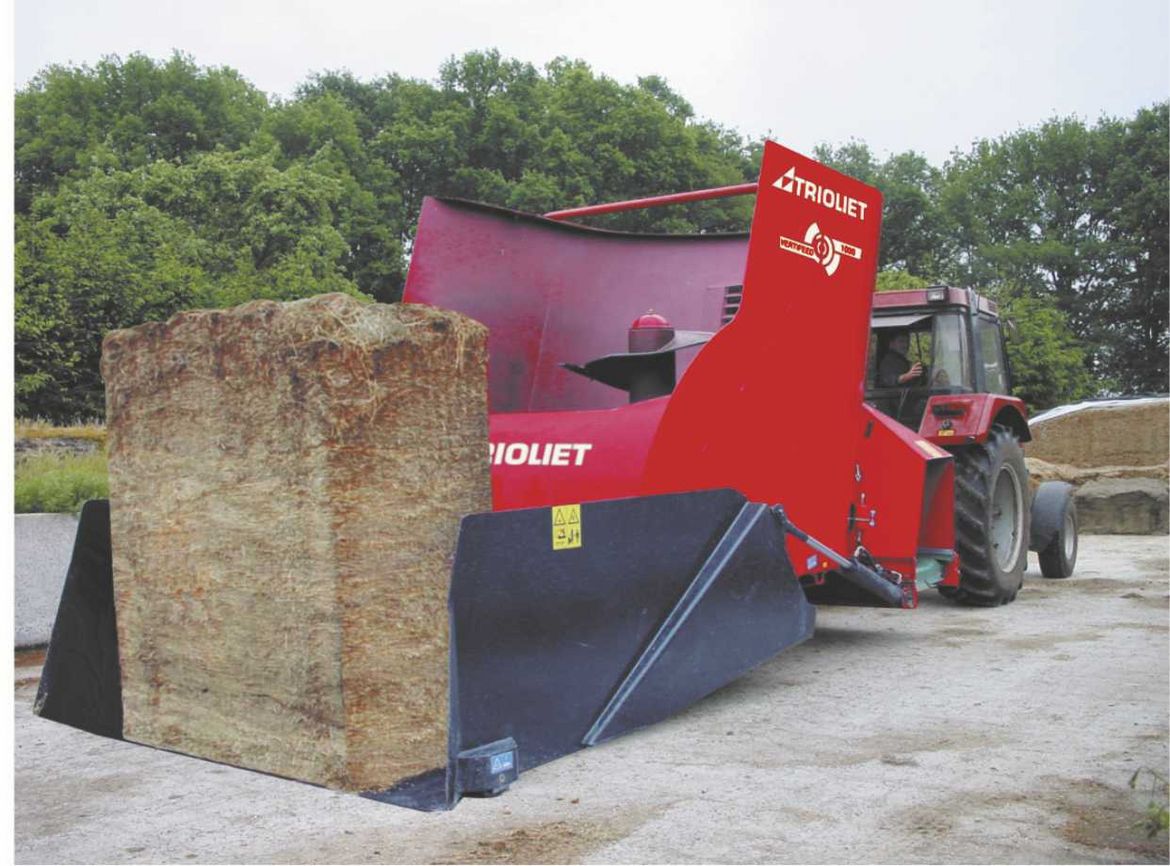

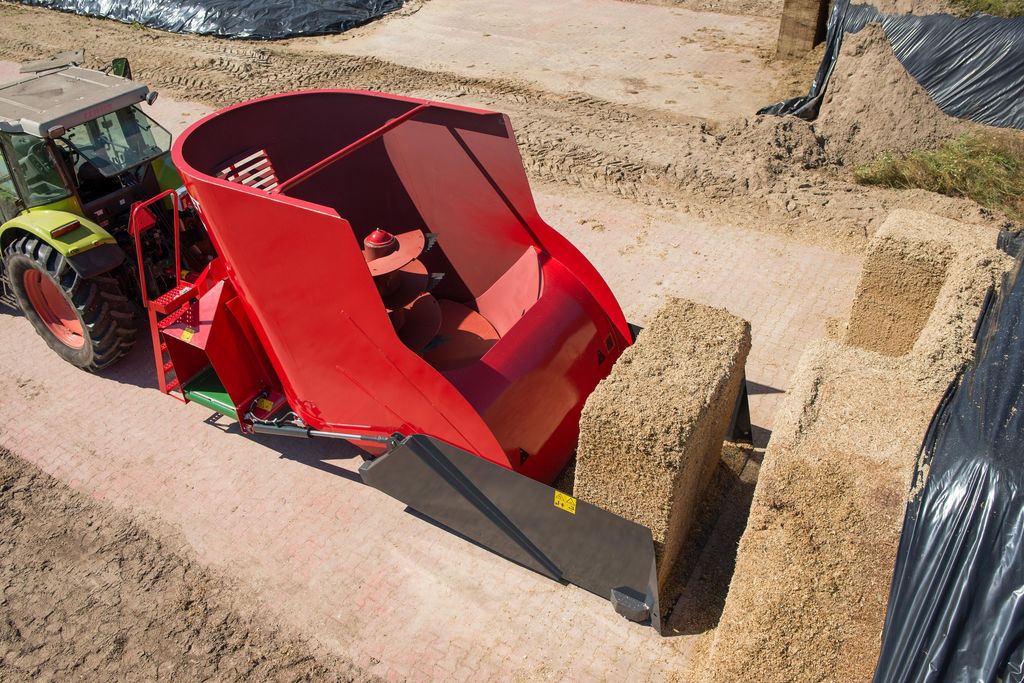

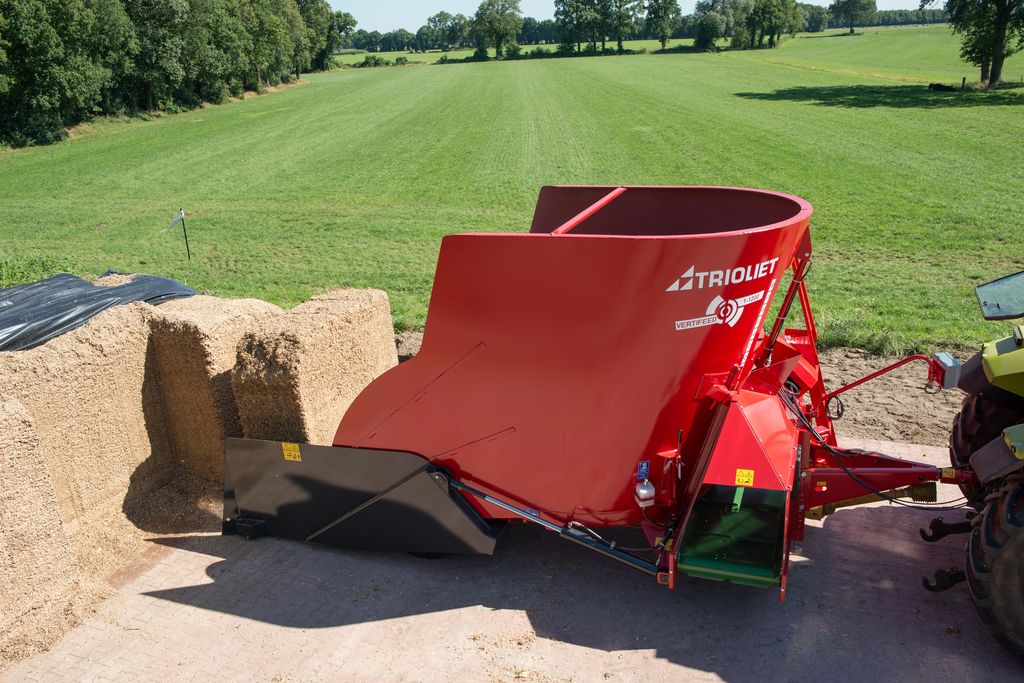

    The Vertifeed is a self-loading feed mixer, featuring a loading frame and a single vertical mixing auger. The hydraulic loading frame is operated from the tractor cabin. When the machine is reversed, the loading frame is pushed under the feed. Two cylinders raise the loading frame and the feed is then tipped into the mixing chamber from above. The window to the front and the low tipping height ensure maximum visibility during the loading process. The diet feeder can be used for all types of feed, allowing even the toughest (round or large square) bales of grass silage to be loaded, mixed and discharged effortlessly.

    attributes

    Capacity 12 m³
    Discharge type Front discharge
    Model Selfloading

    Brochure Vertifeed

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • One auger
      • Trioform auger knives short
      • One restrictor-blade
      • Wear ring
      • Constant velocity PTO-shaft
      • Hydraulic loading platform
      • Adjustable drawbar
      • Front conveyor belt
      • Hydraulic brake system
      • Two single wheels
      • Tub, auger(s), chassis and wear ring out of St. 52

      Technical specifications

      Vertifeed 1200
      Capacity m3 12
      Length m 5,28
      Width m 2,47
      Height m 2,94
      Discharge height m 0,55
      Width of U-shaped cutting frame  m 2,20
      Tractor power requirement HP (kW) 82 (60)
      Tyre size  (2 x) 295/60 R 22.5
