Turbobuster TU Silage cutter

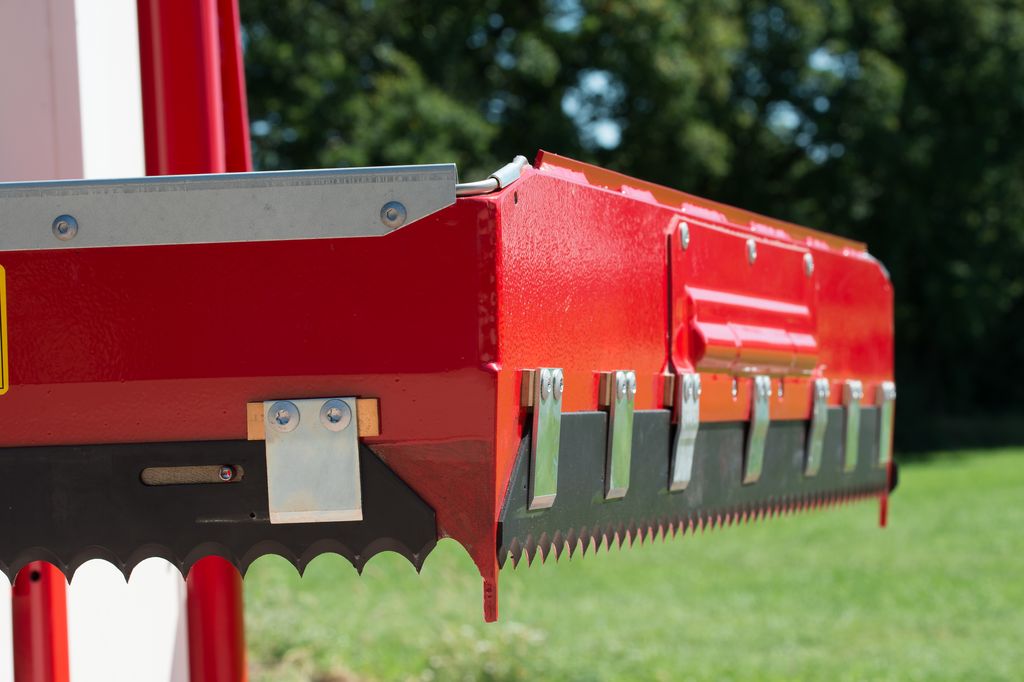

    The Turbobuster silage cutter is designed for extremely tough grass silage and has a high cutting capacity, thanks to the robust, deep serrations of the knives and the hydraulic bypass system, which is capable of providing high pressure independently of the tractor. The Turbobuster is capable of generating at least 40% more feed pressure and/or cutting force. The result is a smooth, clean-cut silage block.

    Read article:
    Limit feed loss from silage to barn

    attributes

    Capacity < 5 m³

    Brochure Silage cutters

      Share

      Photos

      Video

      Standard features

      • Silageblockcutter U-model
      • High capacity cutting system
      • By-pass system ensures high cutting capacity in all kinds of silage
      • Standard equipped with black-plates, completely protected cable housing, knife protectors and quick-fit coupling
      • The machine is for three-point linkage and is to be connected directly to the tractor hydraulics
      • Cutting system with direct drive on the knives and bypass system
      • Special tempered cutting knives
      • Powder coated

      Technical specifications

      Turbobuster TU TU 115 TU 145 TU 170 TU 195
      Capacity m3 1.70 2.10 2.50 2.85
      Length m 1,15 1,15 1,15 1,15
      Width m 1,97 1,97 1,97 1,97
      Height m 2,02 2,32 2,57 2,82
      Net weight kg.  550 580 600 620
      Loading capacity (max. height) m 1,65 1,95 2,20 2,45
      Required hydraulic capacity 25 l/min., 150 bar 25 l/min., 150 bar 25 l/min., 150 bar 25 l/min., 150 bar
      Max. hydraulic connection 45 l/min., 200 bar 45 l/min., 200 bar 45 l/min., 200 bar 45 l/min., 200 bar
