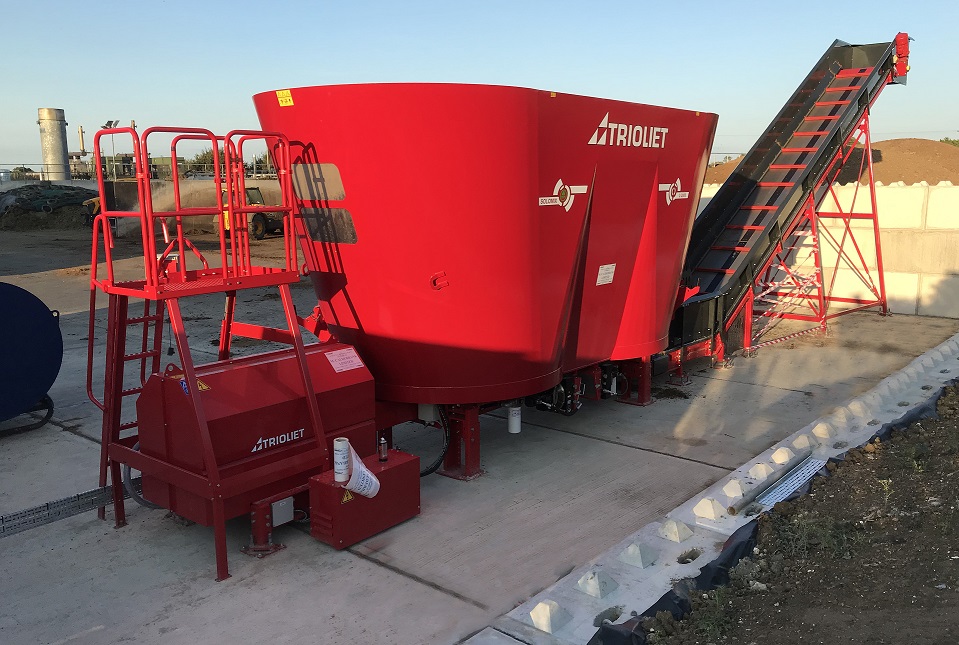

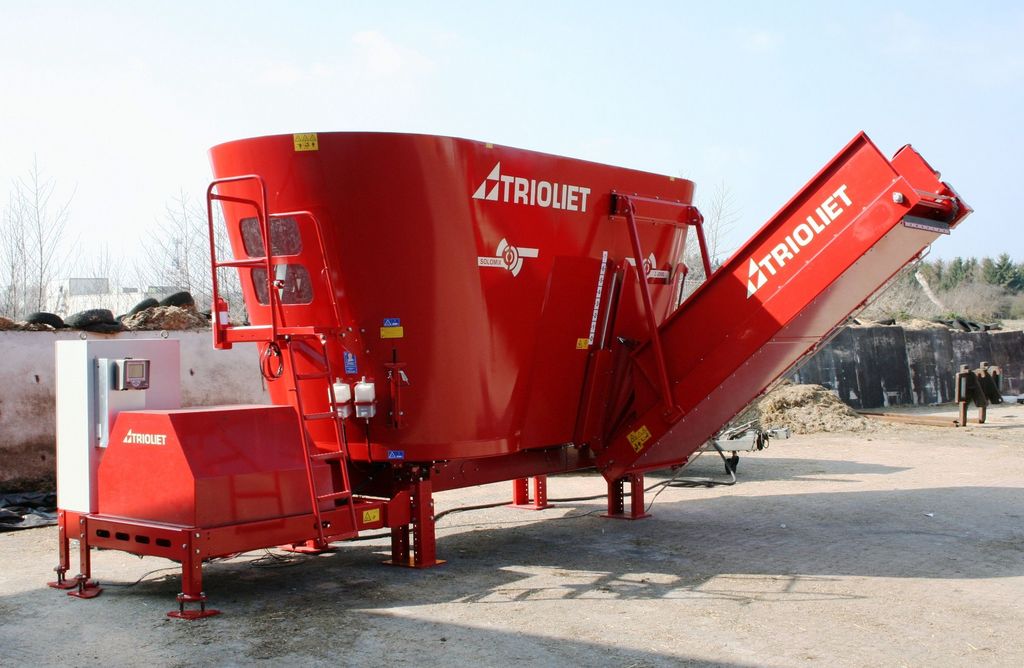

Solomix 2 stationary feed mixer for silage

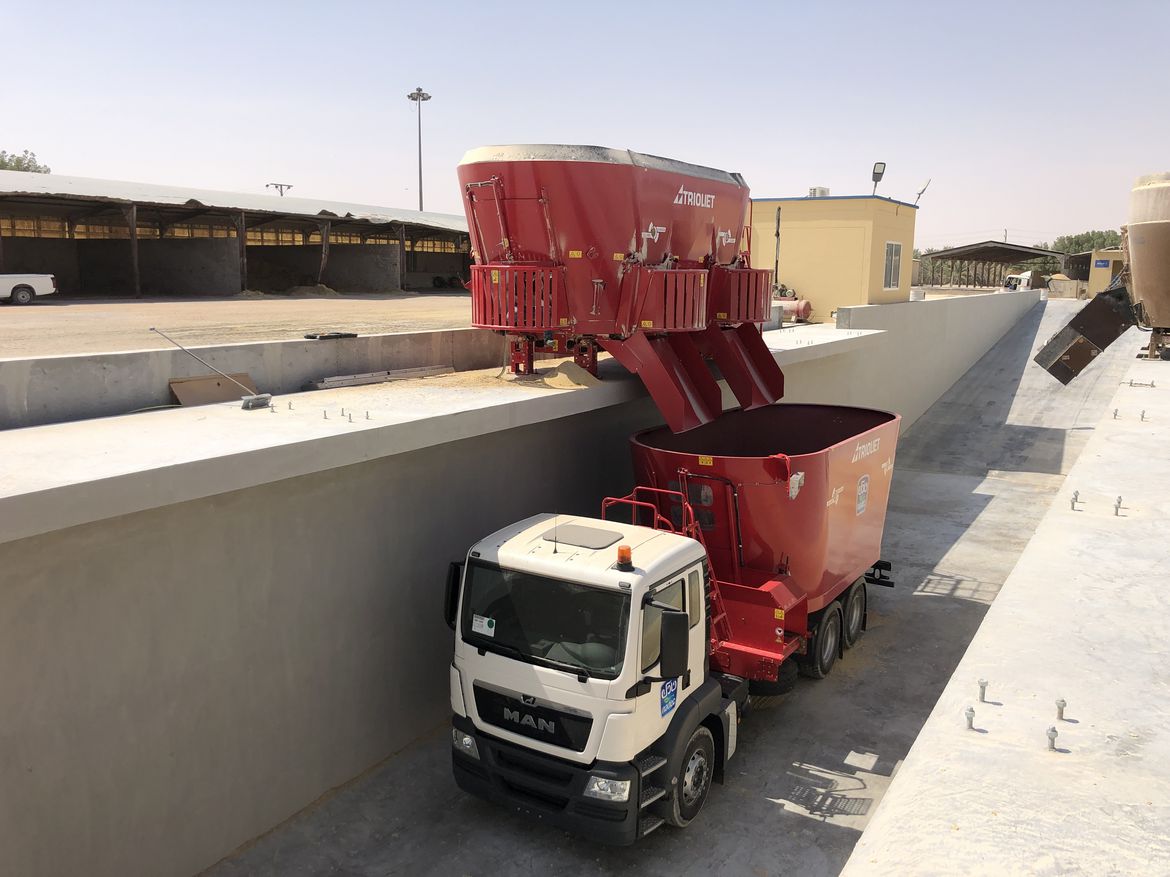

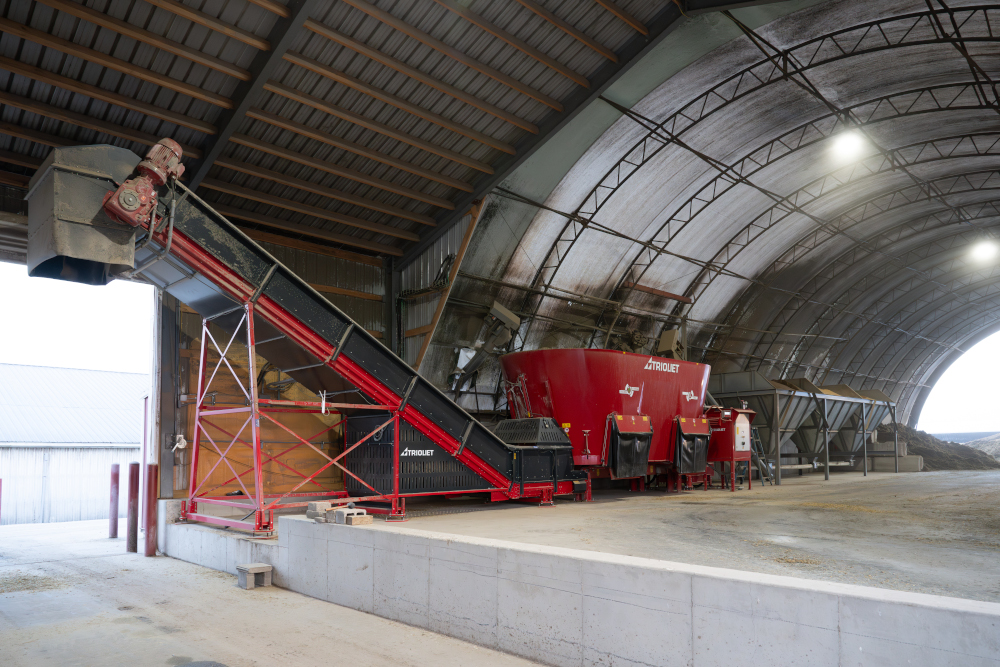

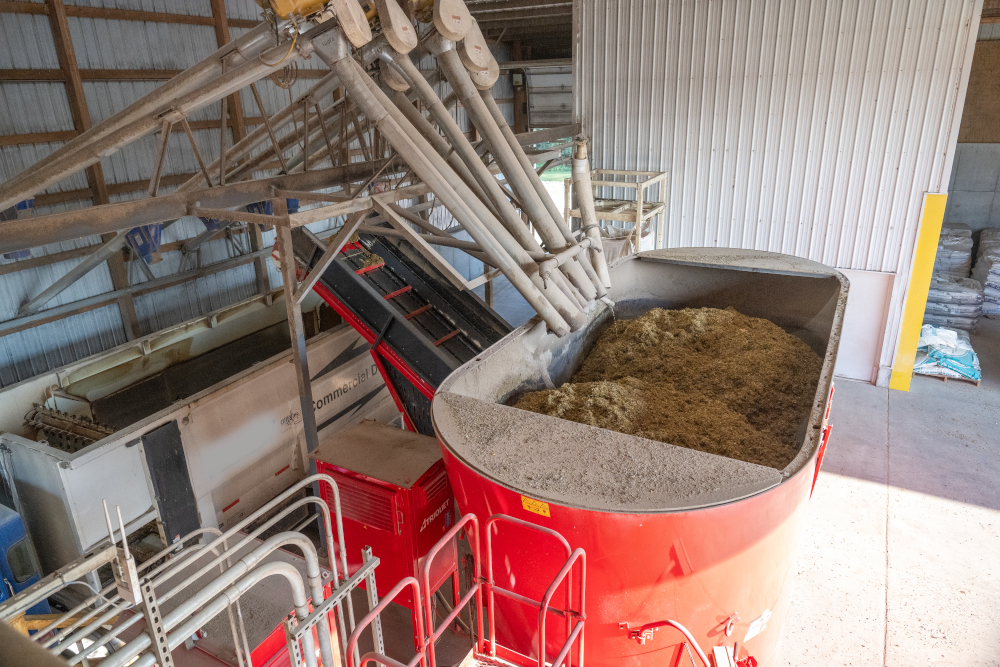

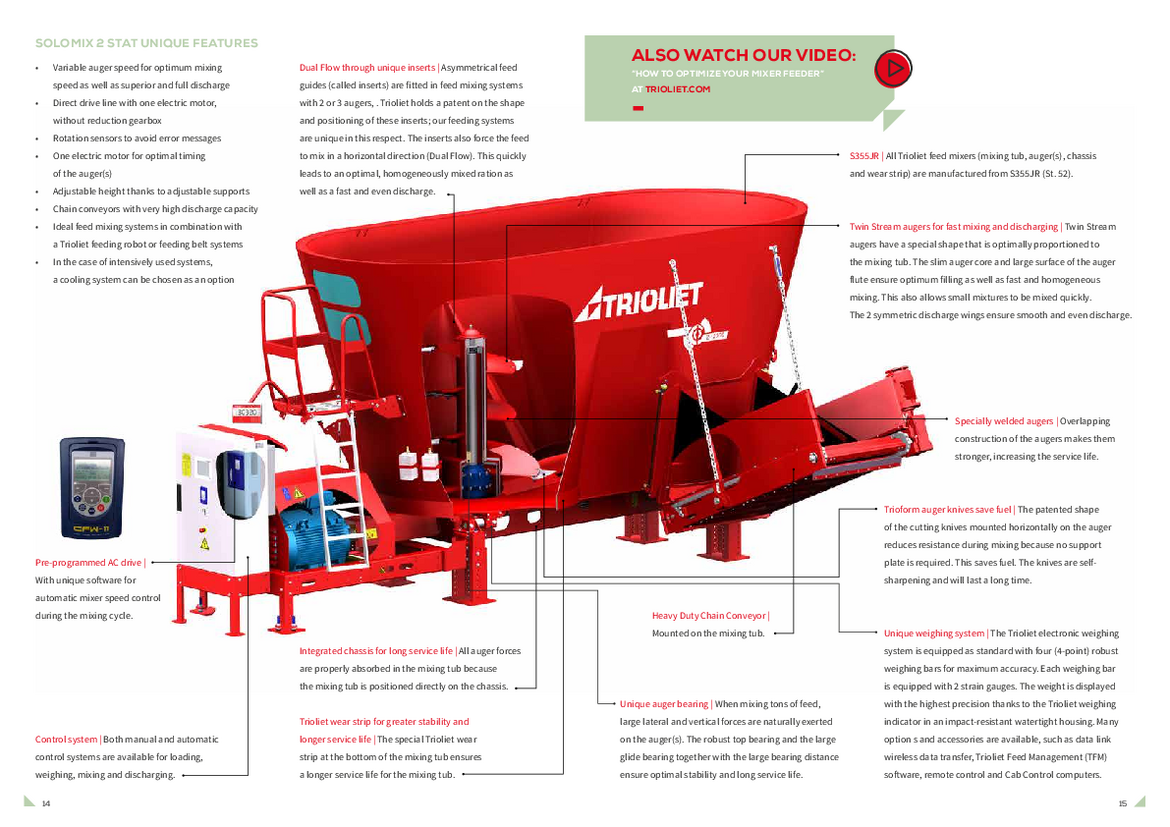

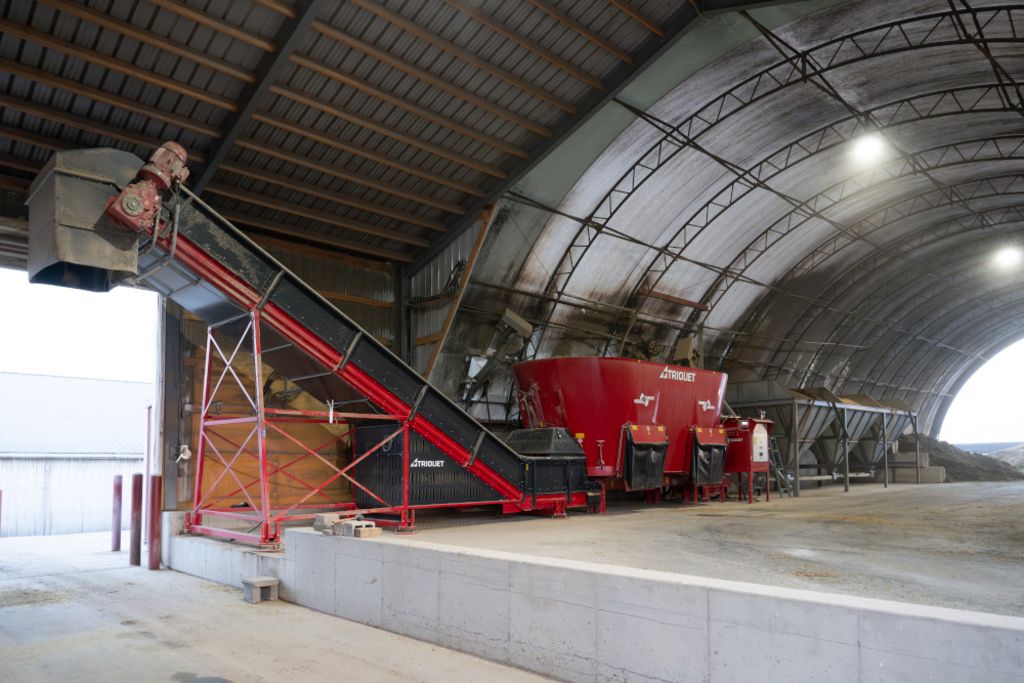

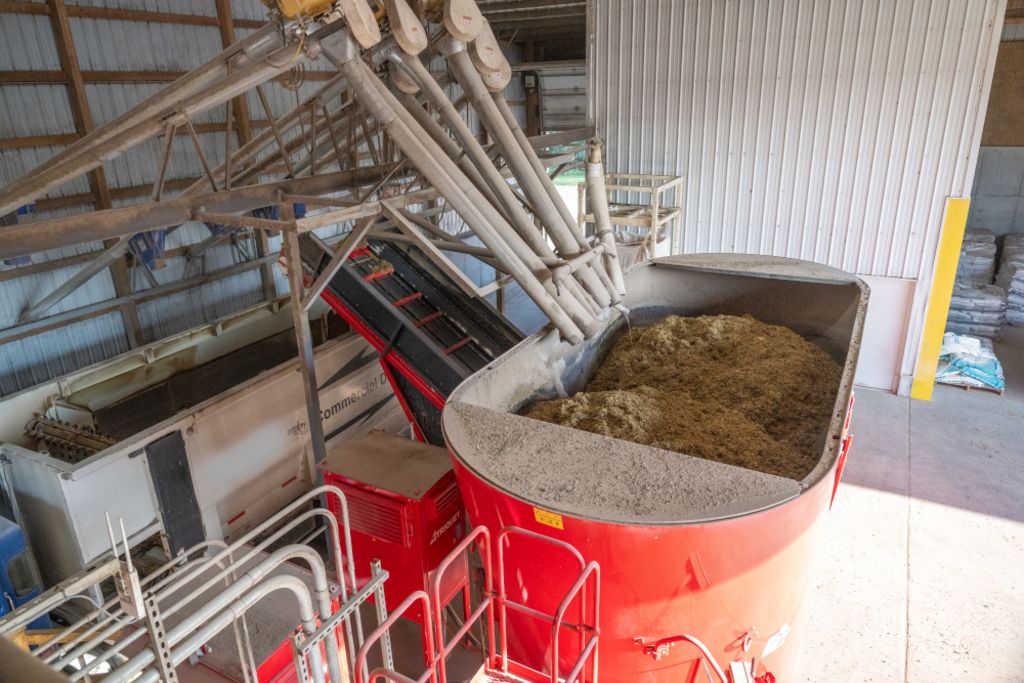

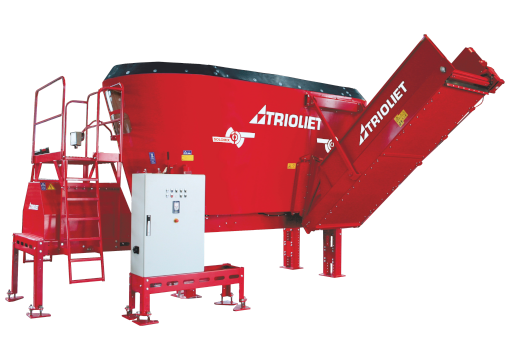

    The Solomix 2 STAT for feed is a stationary diet feeder featuring two vertical augers. This feed mixer is suitable for large and small-scale livestock breeders and is available in volumes ranging from 12 to 32 m3 (for cu.ft. visit our US website). After mixing, the feed is transported to a feed wagon, robot, or belt system, by means of a chain or belt conveyor. Our patented ’Horizontal Flow’ system ensures the feed is perfectly mixed. Click here to learn about all the unique Solomix features.

    Read the testimonial: How to use automation in order to improve feeding accuracy and efficiency

    attributes

    Capacity 12-32 m³ (for cu.ft. visit our US language website)
    Discharge type Front discharge/Side discharge door

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt

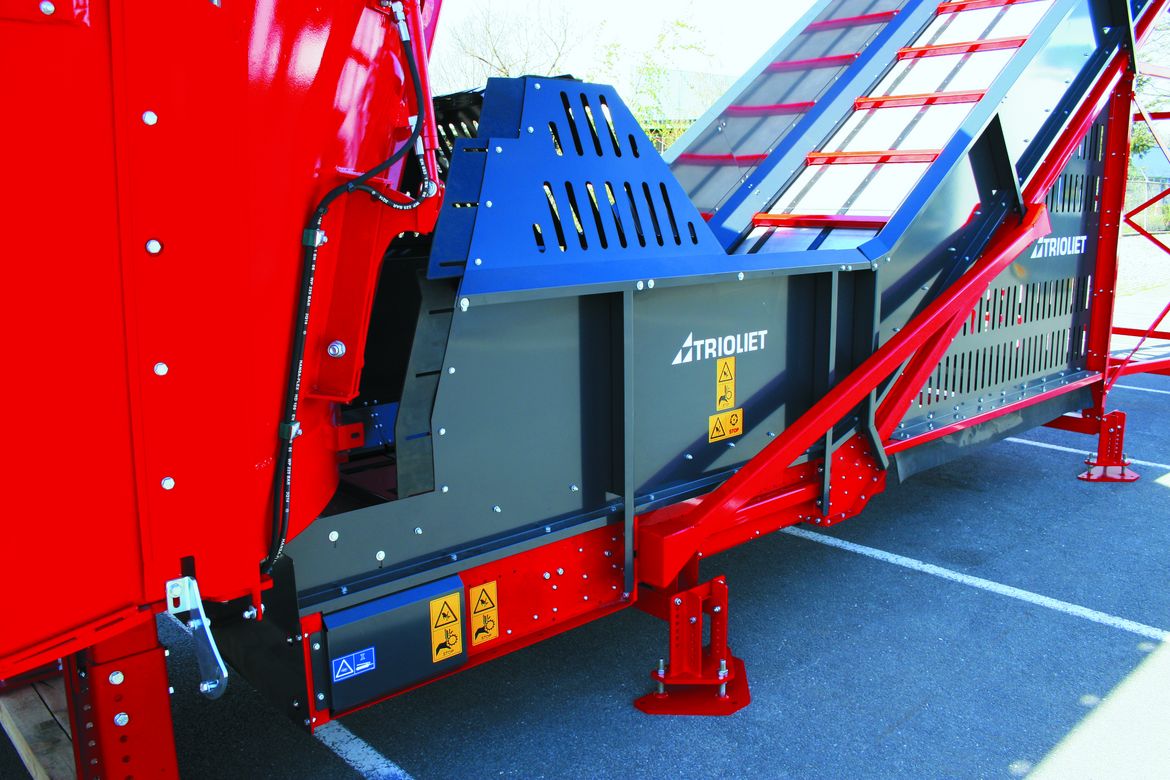

      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Dismountable auger supports
      • One door of the E-motor
      • Wear ring (1600-3200)
      • Trioform auger knives short

      Technical specifications

      If you want the values in cubic feet, please visit our US website, click here


      Solomix 2 stationary feed mixer for silage (VL)
      1200 VL  1600 VL 2000 VL 2000 VL C*** 2400 VL 2800 VL** 3200 VL HD
      Capacity m3 12 16 20 20 24 28 32
      Length (excl. motor) m 4,25 4,60 5,22 5,58 5,72 5,89 6,56
      Length (incl. motor) m 7,39 8,63 8,63 6,60 6,60 6,75 7,67
      Width m 2,15 2,29 2,44 2,29 2,44 2,75 2,80
      Height* m 2,55-2,85 2,85-3,15 2,85-3,15 2,55-2,85 2,77-3,07 3,08-3,38 2,75-3,05
      Nett weight (ex. motor and motor frame) kg. 3.400 4.300 5.000 5.500 6.400 6.650 9.850
      Number of auger knife positions per auger 7 8 8 8 9 10 12
      Number of auger knives fitted 4 5 5 5 6 7 9
      Auger diameter mm Ø 1500 Ø 1700 Ø 1960 Ø 2200 Ø 2200 Ø 2200 Ø 2660
      Required electrical installation Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive

      .

      Solomix 2 stationary feed mixer for silage (ZK) 1200 ZK  1600 ZK 2000 ZK 2000 ZK C*** 2400 ZK 2800 ZK**
      Capacity m3 12 16 20 20 24 28
      Length (excl. motor) m 4,55 5,04 5,29 5,58 5,72 6,20
      Length (incl. motor) m 7,28 8,63 9,27 6,60 6,60 7,28
      Width m 2,20 2,30 2,35 2,29 2,44 2,68
      Height* m 2,17-2,47 2,55-2,85 2,85-3,15 2,55-2,85 2,77-3,07 2,75-3,05
      Nett weight (ex. motor and motor frame) kg 3.400 4.500 5.200 5.500 6.250 7.800
      Number of auger knife positions per auger 7 8 8 8 9 12
      Number of auger knives fitted 4 5 5 5 6 9
      Auger diameter mm Ø 1800 Ø 1960 Ø 1960 Ø 2200 Ø 2200 Ø 2440
      Required electrical installation Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive

      * Supports are set to 800 mm height as standard
      ** The 2800 VL and ZK have a 22 mm auger as standard
      *** Container handling machine
