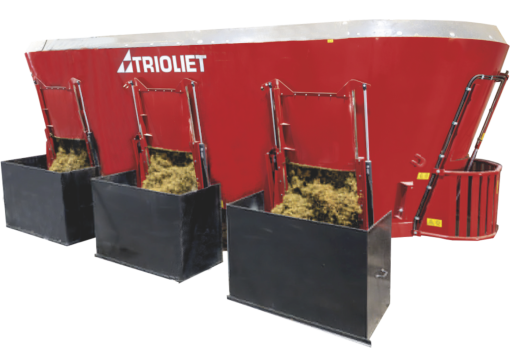

Solomix 3 stationary feed mixer for silage

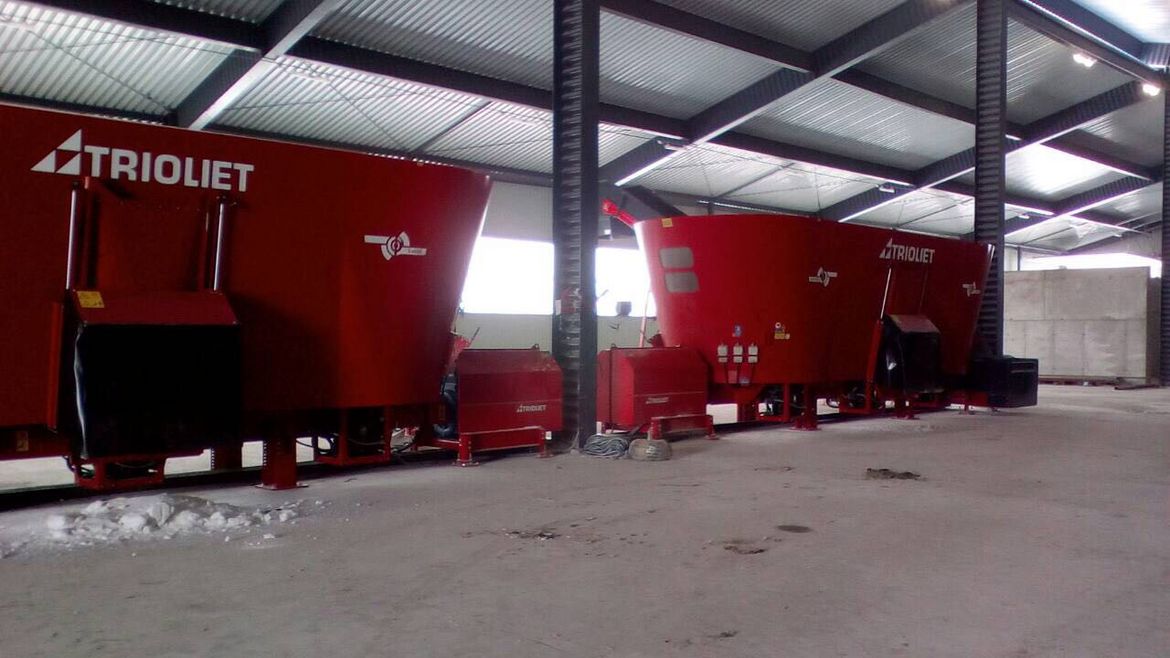

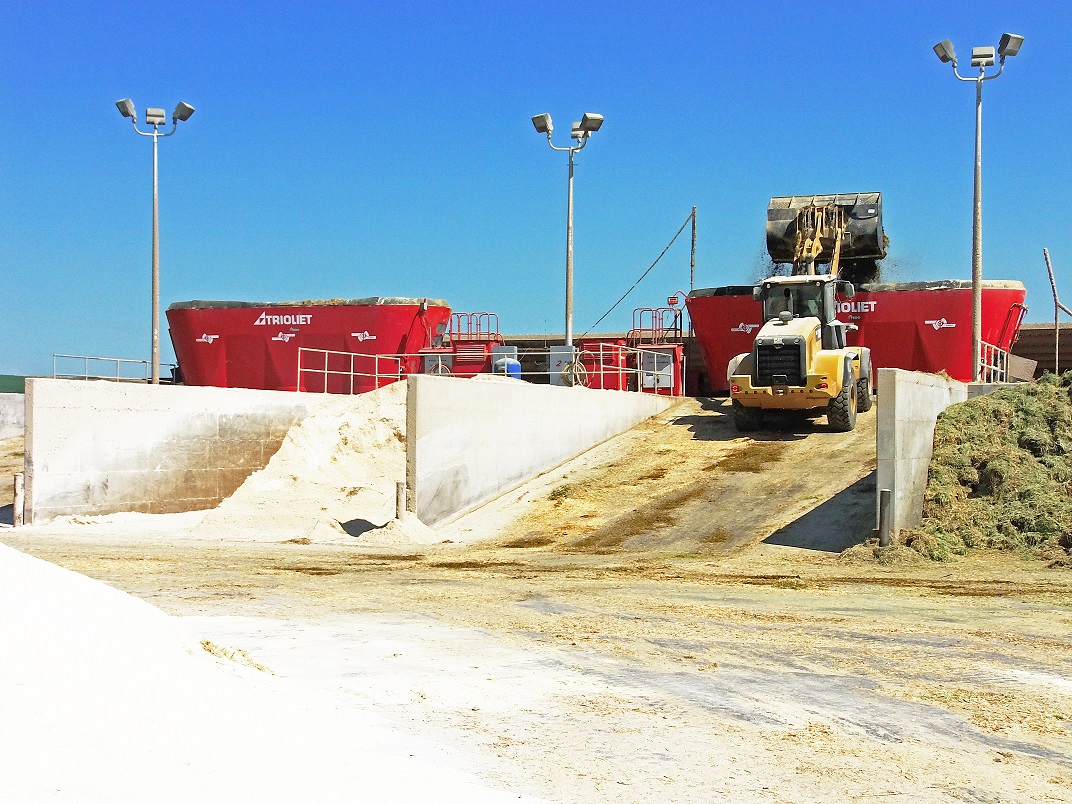

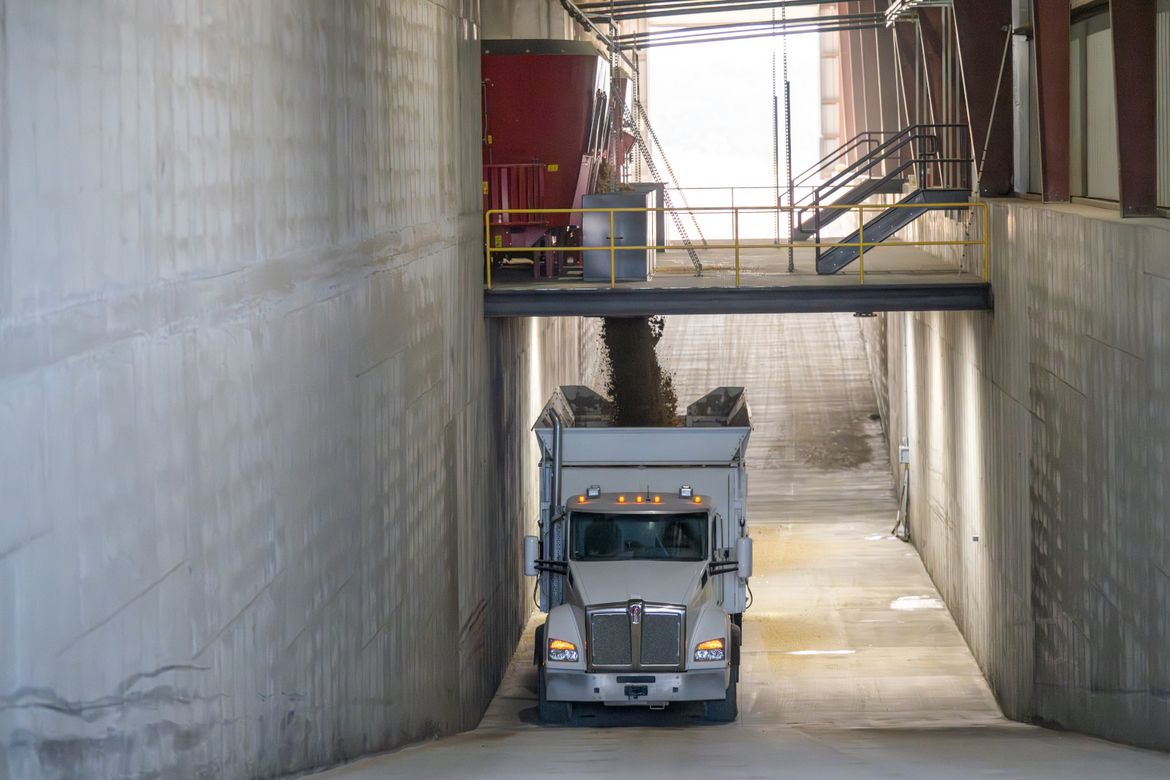

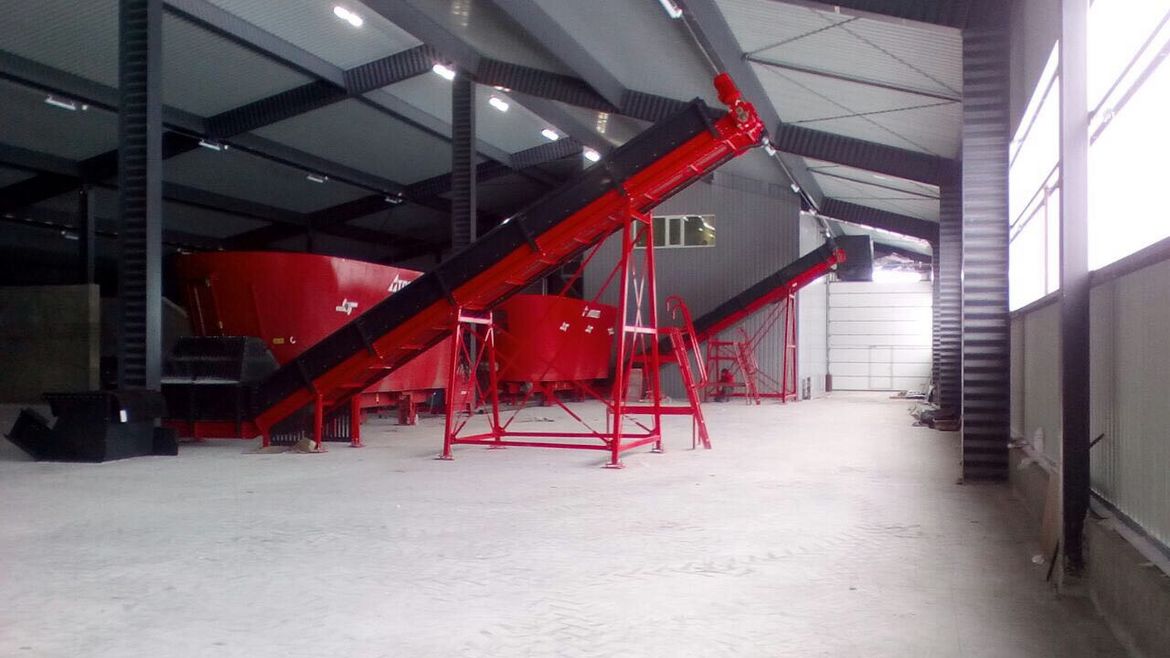

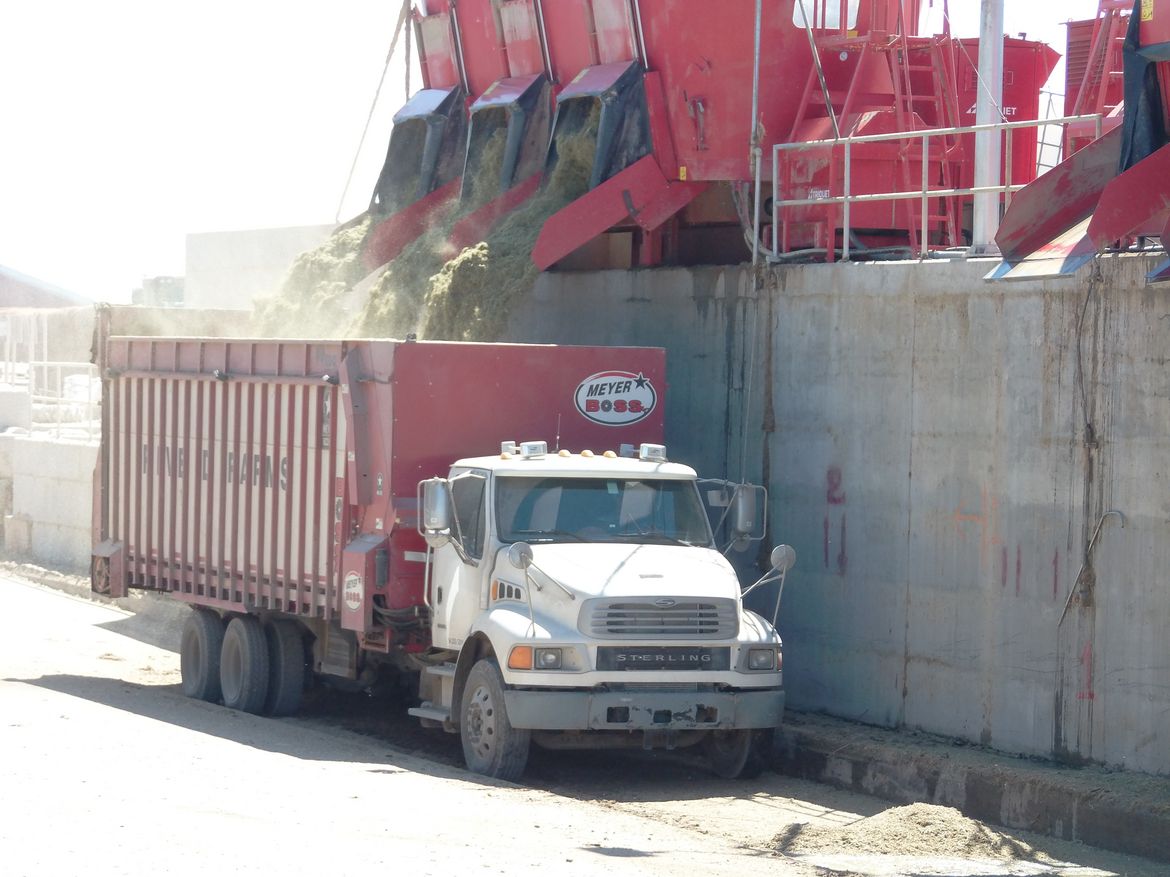

    The Solomix 3 STAT for silage is a stationary TMR mixer with three vertical augers and a chain or belt conveyor. The mixed hay or grass is discharged by the chain conveyor into a feed wagon, feeding robot or onto a belt system. The feed mixer is available with a capacity of 36, 46 and 52 m³ (for cu.ft. visit our .us website). Its simplicity means any maintenance costs are minimal and the machine operates at high efficiency. Click here to learn about all the unique Solomix features.

    Read the testimonial: How to use automation in order to improve feeding accuracy and efficiency

    attributes

    Capacity 36-52 m³ (for cu.ft. visit our US language website)
    Discharge type Front discharge

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain

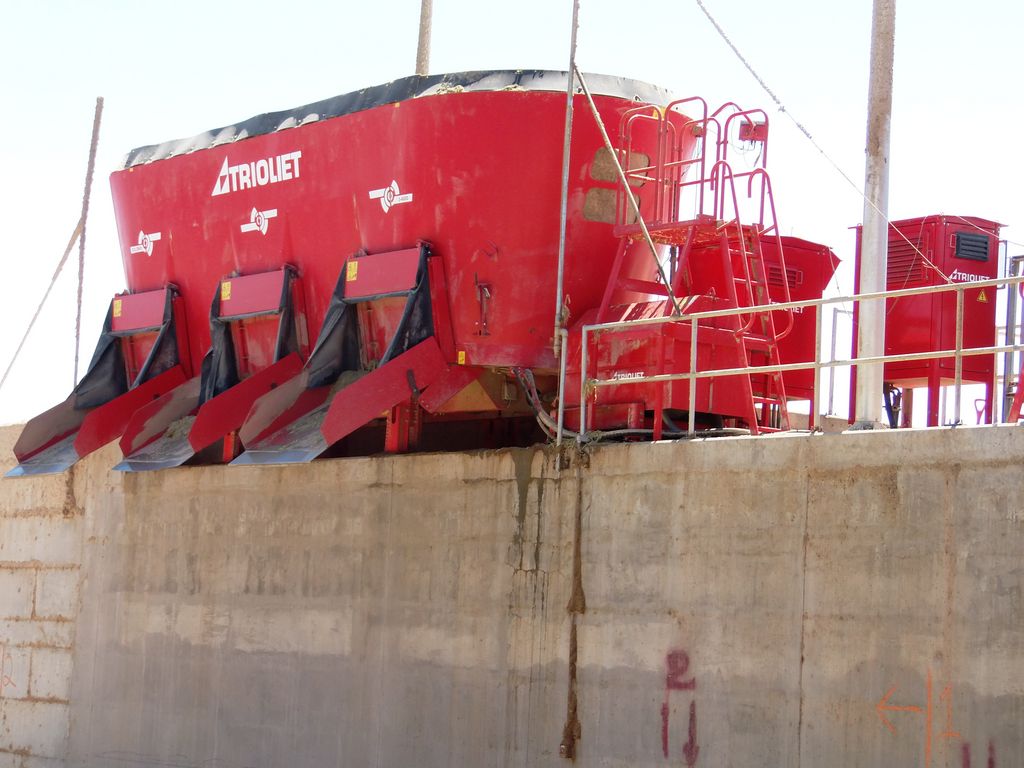

      • ZK = Side discharge doors
      • X = Heavy Duty

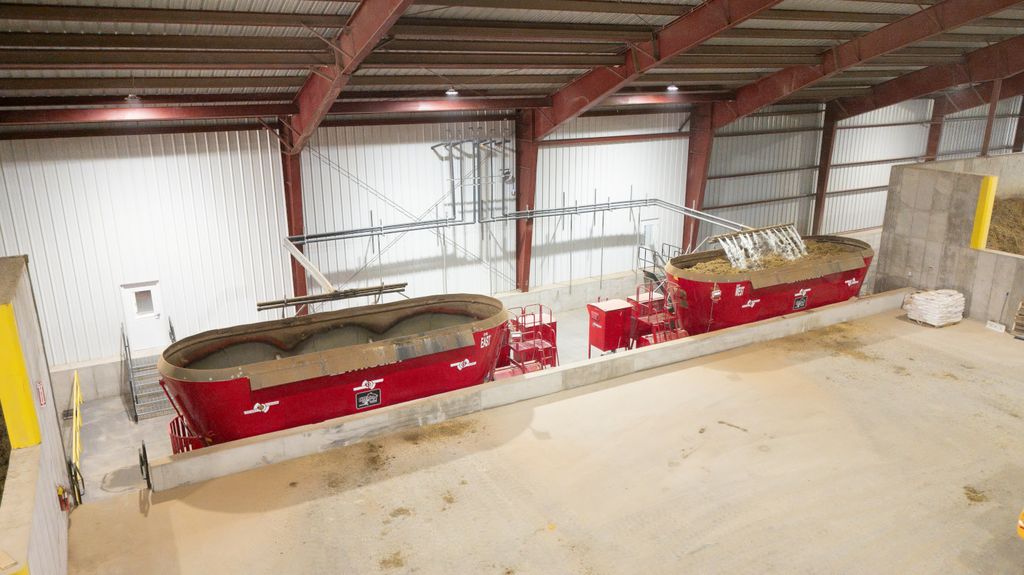

      Photos

      Video

      Standard features

      • Dismountable auger supports
      • Four supports adjustable in height
      • Wear ring
      • Trioform auger knives short

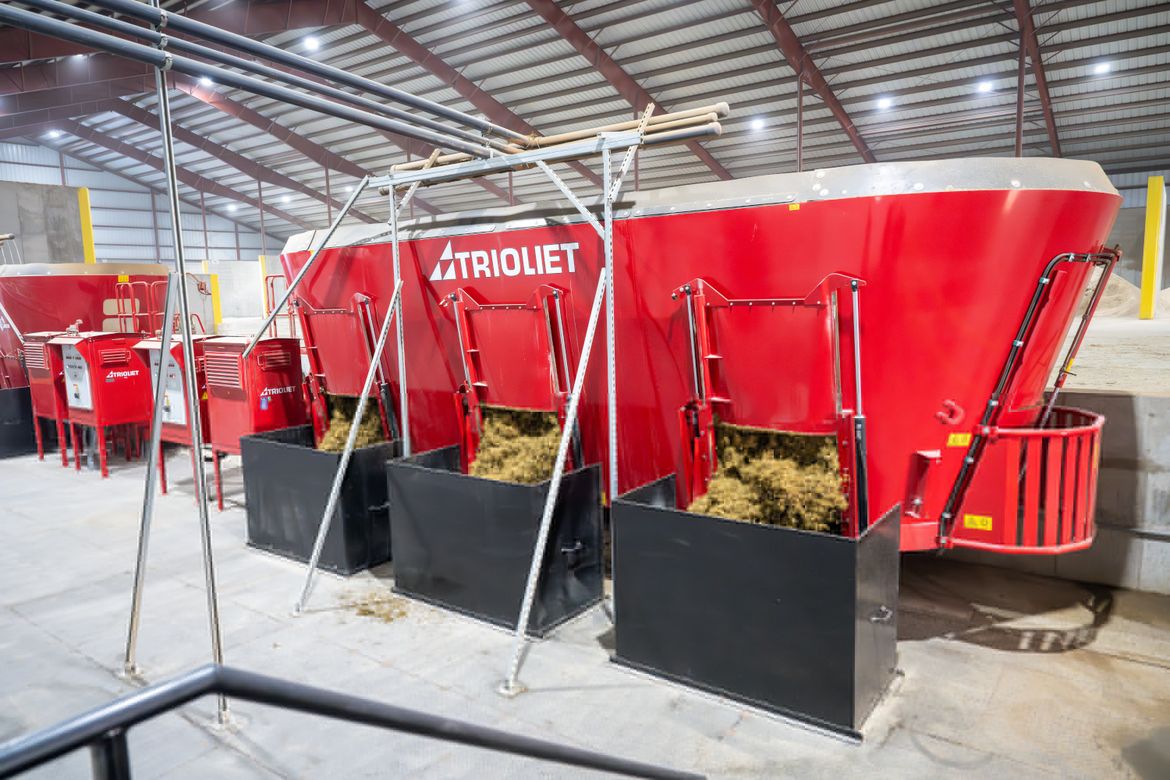

      • Discharge door at front
      • Tub, auger(s), chassis and wear ring out of St. 52
      • Machine is prepared for extra side discharge doors
      • Three vertical augers
      • Two manually operated restrictor blades

      If you want the values in cubic feet, please visit our US website, click here

      Technical specifications

       If you want the values in cubic feet, please visit our US website, click here

      Solomix 3 stationary feed mixer for silage HD (VL) 3600 VL  4600 VL 5200 VL
      Capacity m3 36 46 52
      Length (excl. motor) m 7.89 8.63 9.30
      Length (incl. motor) m 8.81 9.27 10.10
      Width m 2.65 2.97 2.97
      Height* m 2.85-3.15 2.77-3.07 2.75-3.05
      Nett weight (ex. motor and motor frame) kg. 11.100 13.600 15.000
      Number of auger knife positions per auger 10 12 12
      Number of auger knives fitted 7 9 9
      Auger diameter mm Ø 2200 Ø 2440 Ø 2660
      Required electrical installation Frequency drive Frequency drive Frequency drive

      * Supports are set to 800 mm height as standard

      If you want the values in cubic feet, please visit our US website, click here
