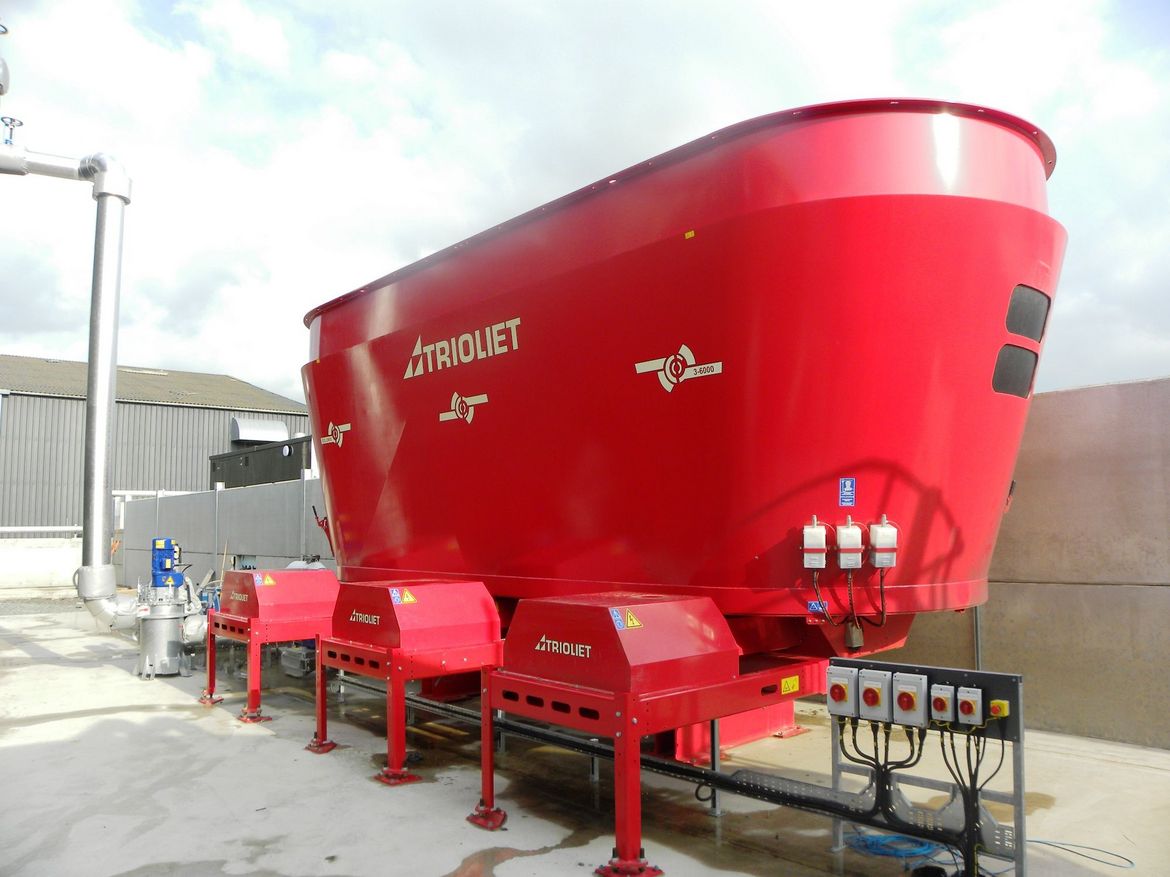

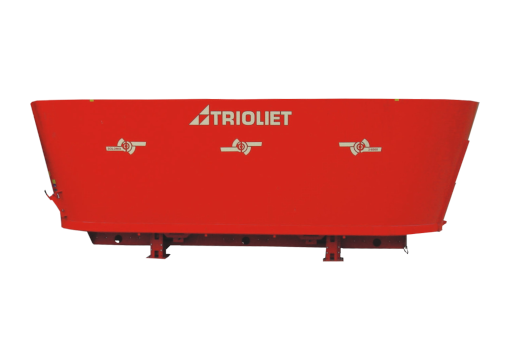

Solomix 3 stationary feed mixer for Biogas

    The challenge facing every biogas producer is to generate as much energy as possible with a minimum amount of input. Generating a positive yield is not always easy, however. A major factor is the type of delivery system used to transport the residual feed to the digester. Trioliet supplies stationary mixers with vertical augers and capacities ranging from 10 to 80 m³. The Solomix 3 STAT Biogas features 3 augers and is available in volumes ranging from 46-80 m³.

    attributes

    Capacity 46-80 m³

    Photos

    Video

    Standard features

    • The machine is equipped with one discharge door on one end as standard
    • Two manually operated counter knives
    • Trioform auger knives
    • Mixing augers with 22 mm winding / 25 mm auger wings
    • Four height-adjustable supports with the option to install weigh bars
    • Three mixing augers with planetary drive mechanism driven by three side-mounted electric motor(s)
    • Detachable auger bases

    Technical specifications


    Solomix 3 Biogas
    4600 6000 8000
    Capacity m3 46 60 80
    Length m 8.63 8.63 8.63
    Width m 2.97 2.97 2.97
    Width (incl. motoren) m 3.93 3.93 3.93
    Height m * 2.88 - 3.18 3.48 - 3.78 4.34 - 4.64
    Nett weight kg ** 11.700 12.900 13.900
    Maximum payload kg. 23.000  40.000****  55.000**** 40.000  55.000 40.000  55.000
    Number of auger knives  9 9 9
    Auger diameter mm Ø 2440 Ø 2440 Ø 2440
    Required electrical installation Soft-start device / Freq. drive Soft-start device / Freq. drive Soft-start device / Freq. drive
    Required electric motor power kW*** 3x22   3x30****  3x37**** 3x30   3x37 3x30   3x37

    * The height of the supports can be adjusted by 300 mm
    ** Nett weight = excl. motor frame and electric motor
    *** Indicated required electric motor power valid up to max. payload
    **** Only in combination with a heavy-duty drive line
