Triomatic T40 feed storage for automatic feeding system

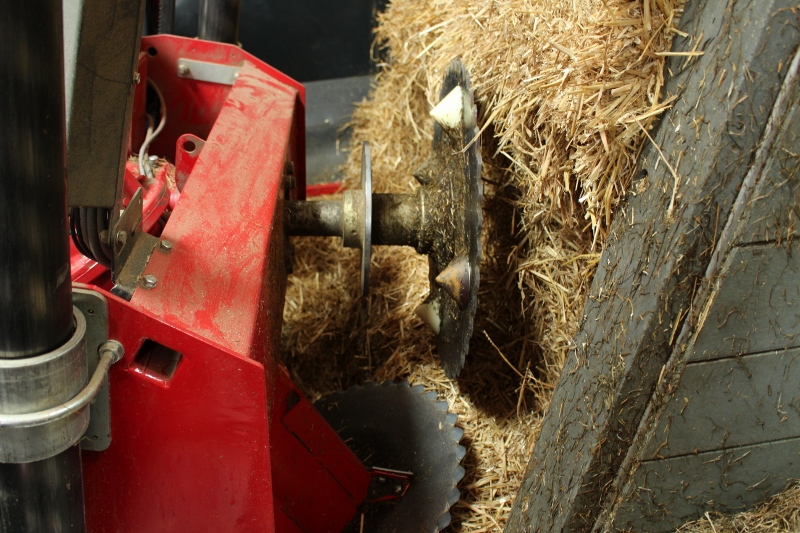

    The Triomatic T40 automatic feeding system consists of a feed kitchen/feed storage with feed floors for silage blocks and bales. The number of forage components determines the number of feed floors which can store feed for approx. 3-5 days. The cutting unit has round circular knives that cut the feed up evenly, leaving a perfect feed structure. The system can be combined with a battery-powered wheel-driven feeding robot, a mains-powered suspended feeding robot or a mains-powered wheel-driven feeding robot. Thanks to the simple technology of the circular cutting knives, the system uses little energy: only 0.5 to 1.0 kWh per load. This represents a saving of 50% compared to the existing (conventional) systems. Dairy Campus Leeuwarden also selected the Triomatic automatic feeding system.


    Number of days in storage 3-5 days
    Discharge type Extension chain
    Type Feed storage with feed floors for blocks or bales
    Feeding Robot Can be combined with any type of Triomatic feeding



    Standard features

    • Robust feed floors for storage of blocks and/or bales
    • Cutting thickness can be adjusted from 2.5 to 20 cm for each feed floor
    • Cutting unit with circular knives
    • All-electric drive
    • Wide cross conveyor chain and extension chain including weighing system
    • Durable materials
    • Knife and vertical speed adjustable for each feed floor
    • Clear touchscreen for entering feed types, rations, feed groups

    Technical specifications

    Triomatic T40 feed kitchen T40
    Max. number of feed floors 8
    Feed floor length m 6,25/7,60/8,90
    Feed floor width m 1,95
    Max. height of silage block or bale m   1,80
    Required height in the feed kitchen m 3,60
    Required feed kitchen depth (m) is the length of feed floor + 2,50
    Required connecting current in feed kitchen A 3x32
    Required voltage in feed kitchen V~ 400
    These specifications are subject to change.
