Solomix P3 Feed mixer with strawblower

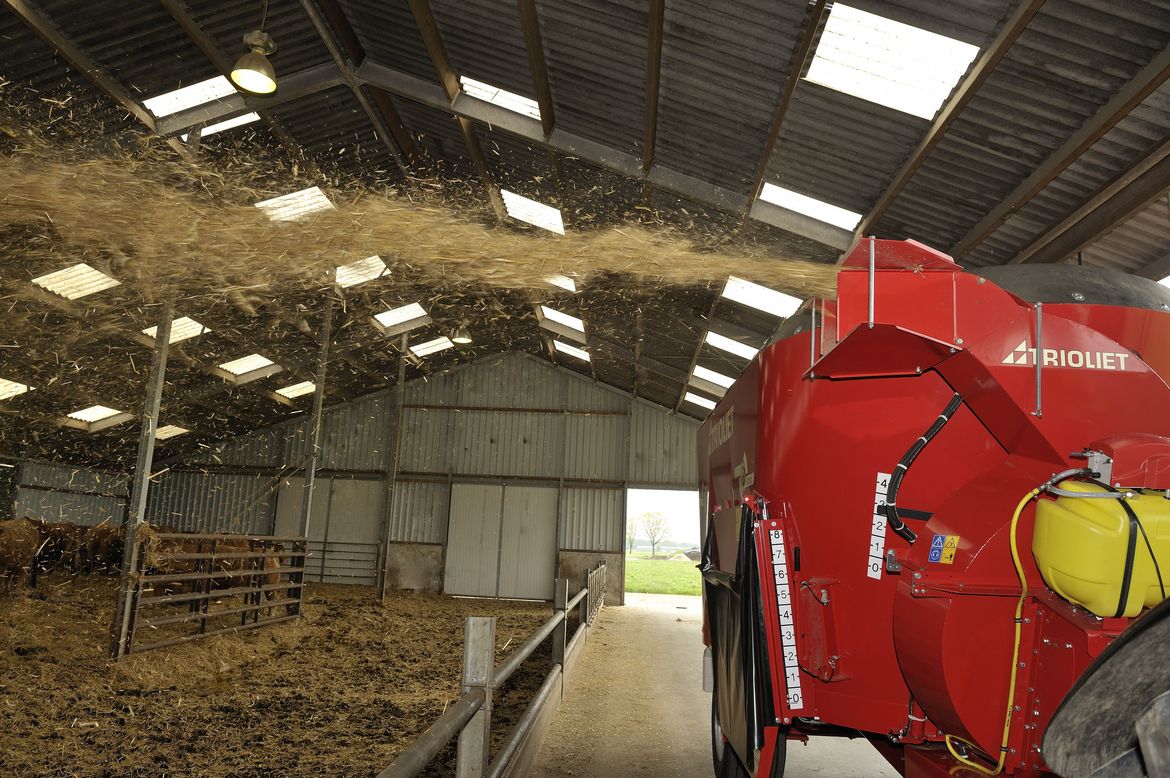

    The Solomix P3 is a (three auger) diet feeder with straw spreader unit. This feed mixer allows you not only to feed your cattle a balanced ration, but also to spread their stall with straw, to provide them with the comfort they require. Its compact dimensions make the Solomix P easy to manoeuvre and use in stalls with narrow feeding alleys and a low height clearance. This advantage becomes even more apparent when a smaller tractor is used. The Solomix P3 can furthermore be equipped with an optional dust control system. By wetting the straw, this system ensures that fewer dust particles and microorganisms are floating around, which is not only more comfortable, but also more hygienic. The Solomix P3 has 3 mixing augers. Click here to learn about all the unique Solomix features.

    attributes

    Capacity 24-36 m³
    Discharge type Front discharge
    Model Trailed
    Strawblower Yes

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

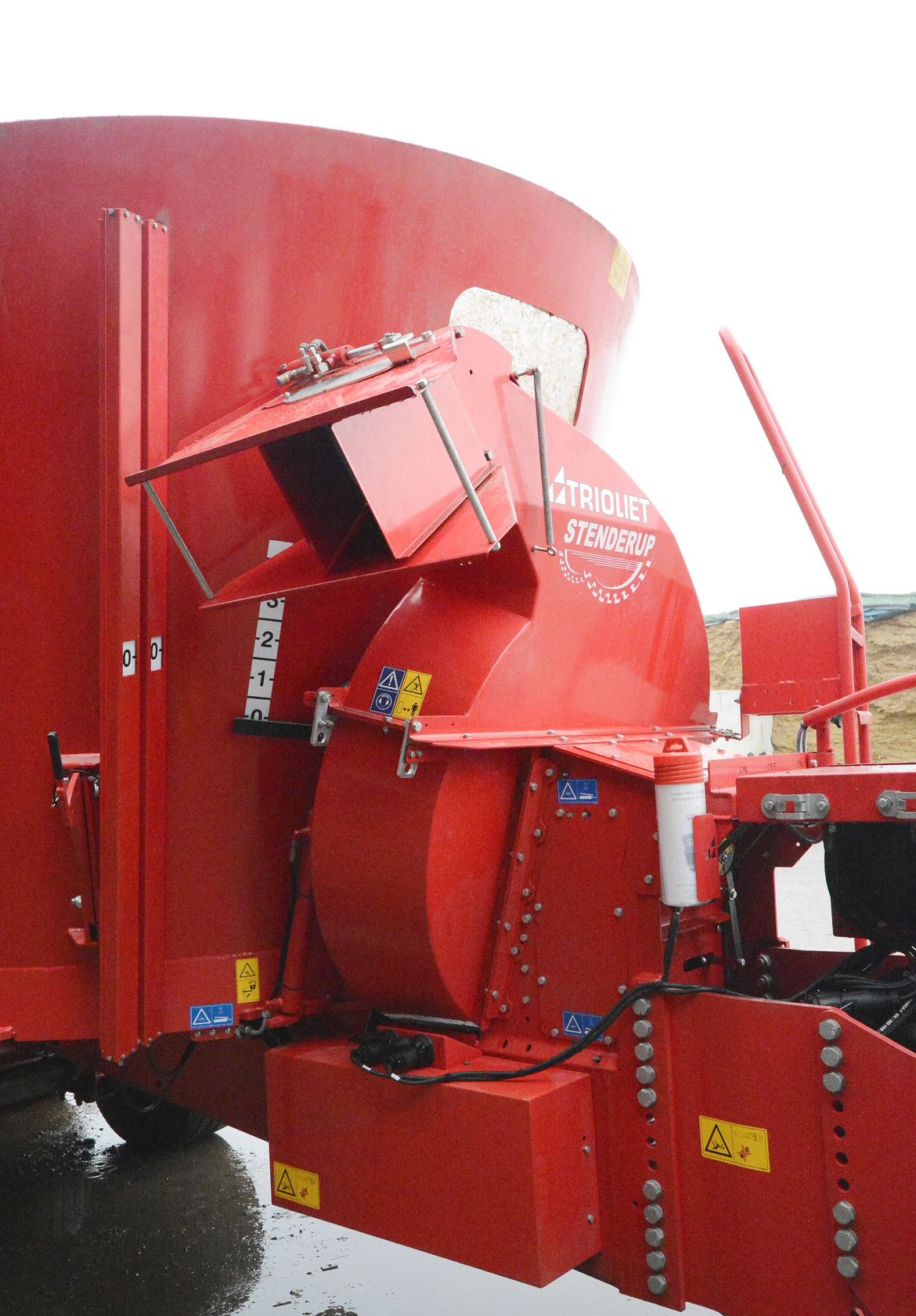

      • Mechanically driven (by V-belts) straw bedder at front
      • Low blower pipe for spreading width up to 25 m
      • Two Twin Stream augers (22 mm flighting / 25 mm wings)
      • Two side discharge doors with rounded edges for better discharge in front
      • Adjustable and reversible drawbar, standard low mounted with 50 mm (40 mm drawbar eye if mounted high) for 3000
      • Two manual restrictor blades
      • Right, left or dual discharge

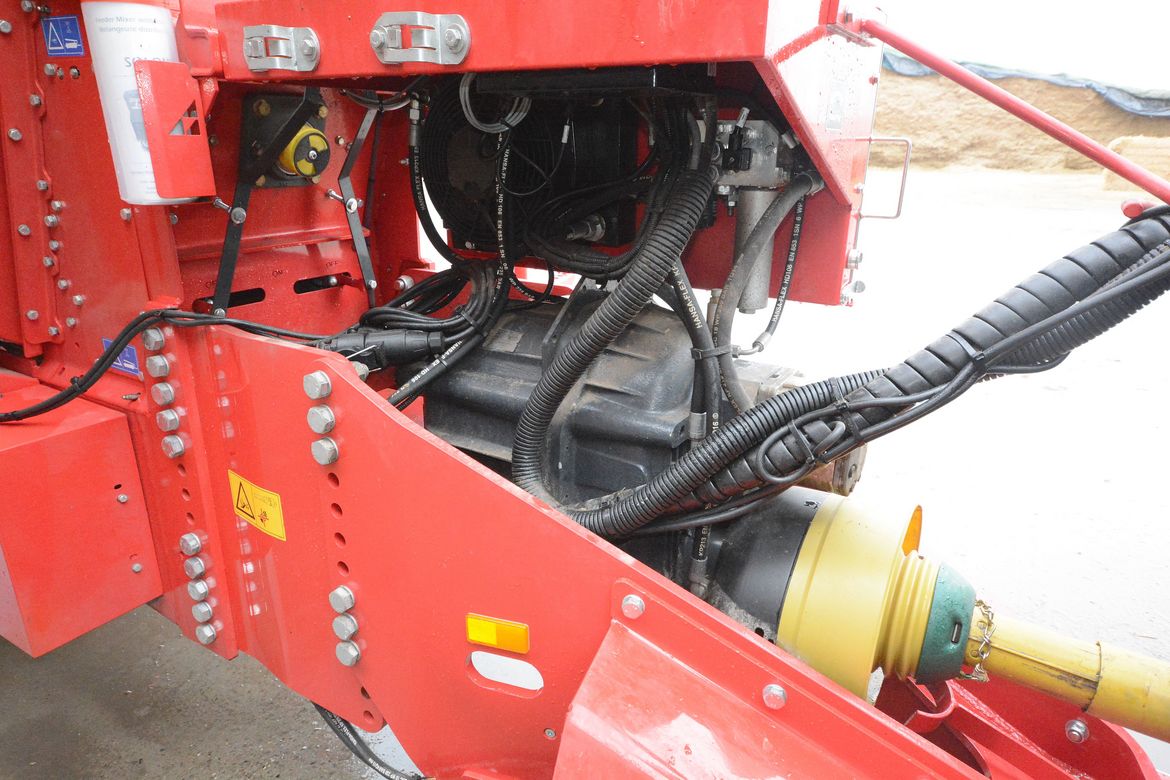

      • Constant velocity PTO shaft
      • Wear ring
      • Trioform auger knives short
      • Manual adjustable discharge chutes
      • Flexible and spacious side door covers
      • Electric operation
      • Four single wheels on a walking tandem (2400-3000)
      • With hydraulic brakes

      Technical specifications

      Solomix P3 2700L ZK-T 3000 ZK-T 3000L ZK-T 3400 ZK-T  3600 ZKX
      Capacity m3 27 30 30 34 36
      Length m 9,88 9,04 9,94 10,01 9,99
      Width m 2,61 2,54 2,54 2,54 2,66
      Height m 2,90 3,30 3,10 3,35 3,38
      PTO RPM 1000 540 1000 1000 1000
      Tractor power requirement HP (kW) 140 (103) 130 (95) 150 (110) 160 (117) 177 (130)
      Tyre size  435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      275/70
      R 22.5
      (4 x)

      * Alternative height dimensions are available on request. Ask your dealer about the available options.
