Solomix 3 ZKX Feed mixer

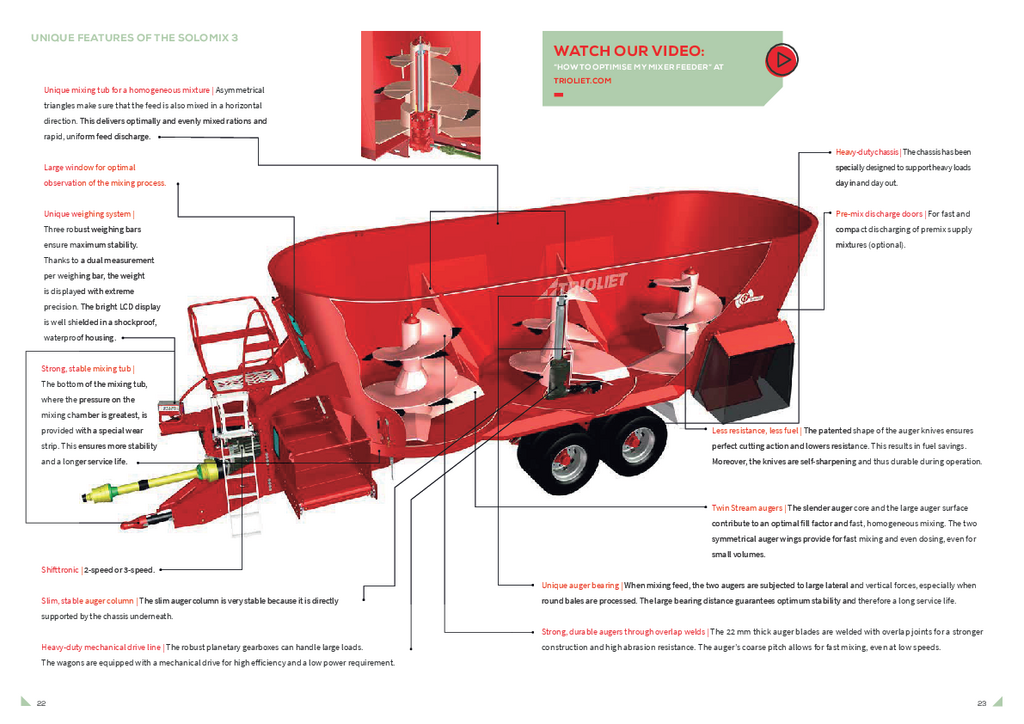

    The renewed Solomix 3 ZKX is a (heavy duty) diet feeder with three vertical mixing augers and two side discharge doors at right (front and rear). The machine is available in volumes from 36 to 52 m³. Its characteristic features, such as a specially shaped mixing chamber, made-to-measure augers, an adjusted auger speed and exceptionally high quality, ensure reliability, healthy cattle and savings in terms of time and costs. Click here to learn about all the unique Solomix features or read more about good feed management

    attributes

    Capacity 36-52 m³
    Discharge type Side discharge door
    Model Trailed
    Strawblower No

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Three Heavy Duty Twin Stream augers (22 mm flighting / 25 mm wings)
      • Two reversible restictor blades
      • Adjustable low drawbar with 50 mm ring hitch (European standard) 3600 Tandem
      • Adjustable low drawbar with K80 ball coupler 4000L-4600 Tandem
      • Adjustable low drawbar with K80 ball coupler and steering cylinders 4600 TR
      • Two side discharge doors on right hand side with rounded edges for better discharge (front and rear)
      • Flexible and spacious side door covers
      • Wide angle PTO-shaft with shearbolt
      • Walking tandem axle with twin wheels (3600/4000L/4600 Tandem)
      • Tridem axle with forced steering (front and rear axle) (4600/5200)
      • Reduction gear box standard for 3600-4600
      • Trioform auger knives
      • Manual adjustable discharge chutes
      • Shifttronic 3-speed and weighing system standard for the 5200
      • Hydraulic brake system
      • Directly operated by tractor hydraulics
      • Wear ring
      • New platform with stairs and windows

      Technical specifications

      Solomix 3 ZKX 3600 ZKX-T 4000L ZKX-T* 4600 ZKX-T 4600 ZKX-TR  5200 ZKX-TR
      Capacity  m3 36 40 46 46 52
      Length m 9,51 10,17 10,25 10,25 10,89
      Width m 2,66 2,97 2,97 2,97 2,97
      Height m 3,38 3,28 3,61 3,54 3,61
      PTO RPM 1000 1000 1000 1000 1000
      Tractor power requirement HP (kW) 177 (130) 191 (140) 204 (150) 204 (150) 240 (176)
      Tyre size 275/70
      R 22.5
      (8x)
      275/70
      R 22.5
      (8x)
      315/80
      R 22.5
      (8x)
      435/50
      R 19.5
      (6x)
      315/80
      R 22.5
      (12x)


      * Wagons in alternative heights are available on request.
