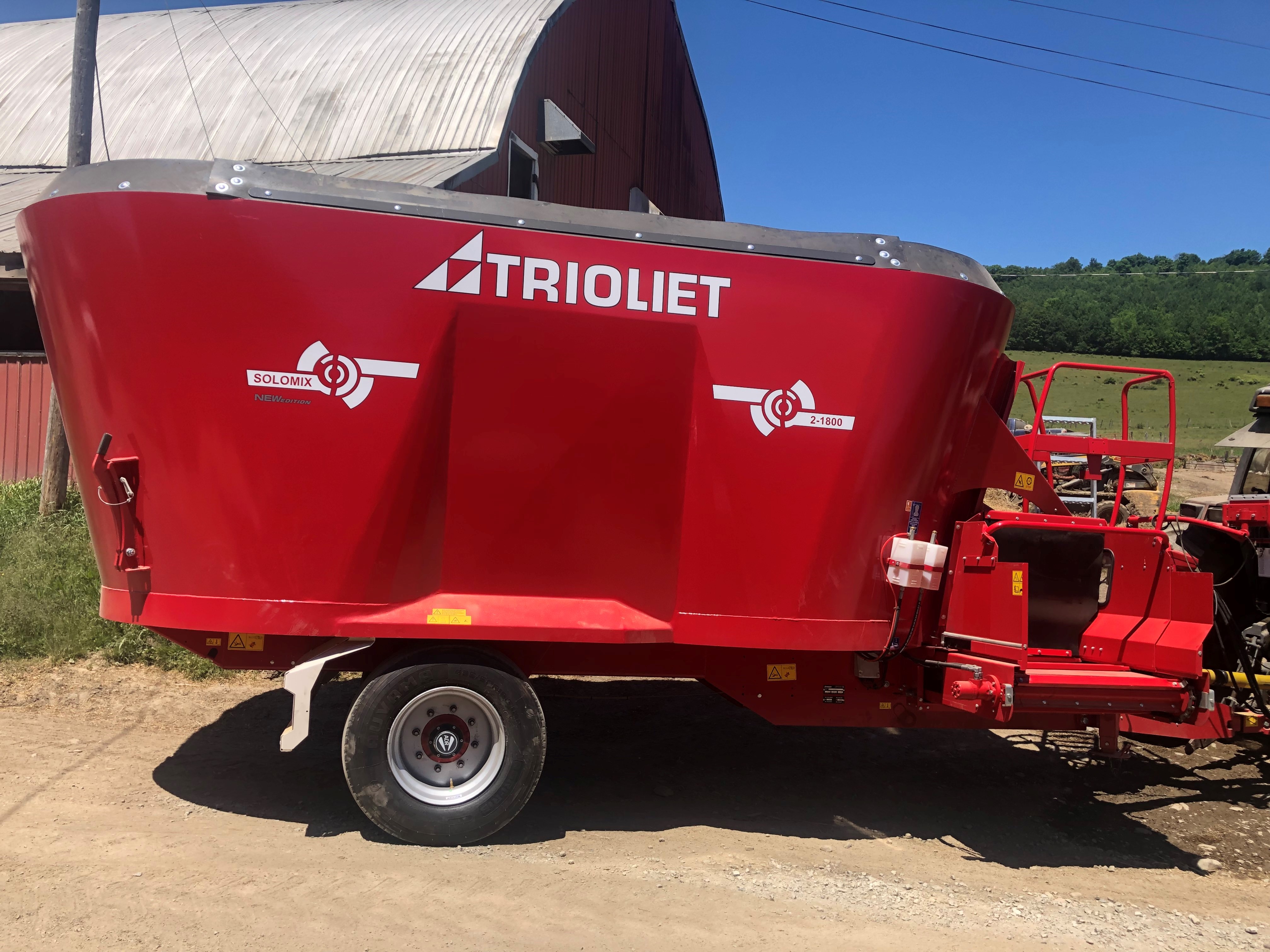

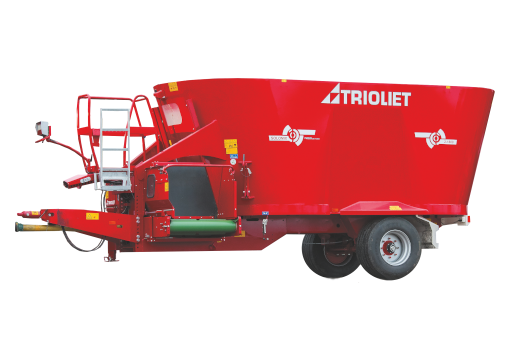

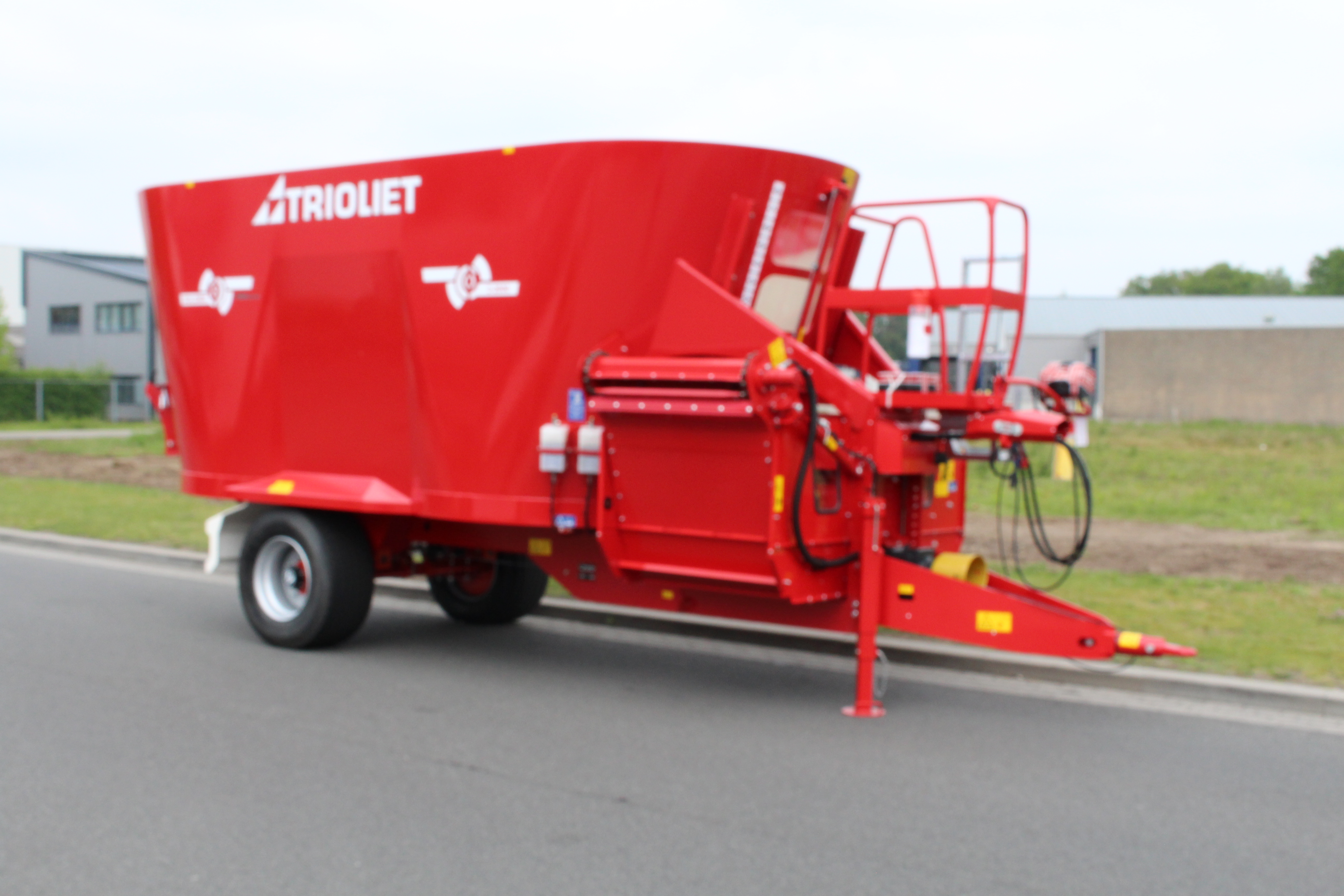

Solomix 2 VLH Feed mixer

    The Solomix 2 VLH is a feed mixer with two vertical mixing augers and a front-discharging cross conveyor belt (B) or (curved (C)) cross conveyor chain (K). The mixer wagon is also available with a cross conveyor chain at the front to discharge into a trough. Also available with a cross conveyor chain in combination with a retractable extension chain (S). All types are available in sizes from 12 to 28 m3. Our patented ’Horizontal Flow’ system ensures the feed is perfectly mixed. Click here for an overview of the unique characteristics of our feed mixers or read more about the use of magnet in your mixer wagon.

    attributes

    Capacity 12-28 m³
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • 2 Twin Stream augers (22 mm flighting / 25 mm wings)
      • 2 Reversible restrictor blades
      • Wide-angle PTO shaft with 1,3/8 - 6 profile
      • Adjustable and reversible drawbar with 40 mm drawbar eye (European standard)
      • Two large single wheels
      • Control by bowden cable
      • Wear ring
      • Hydraulic brake system
      • Trioform auger knives short
      • Larger discharge door with rounded edges for better discharge
      • Dual Flow: Improved shape of the mixing tub and offset inserts
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility

      Technical specifications

      Solomix 2 VLH 1200 1400 1500 1600  1600L 1800 2000 2000L 2400
      Capacity m3 12 14 15 16 16 18 20 20 24
      Length m 6,57 6,73 7,05 7,09 7,52 7,56 7,61 7,99 7,68
      Width m 2,22-2,42* 2,22-2,42* 2,28-2,45* 2,28-2,45* 2,29-2,46* 2,29-2,46* 2,29-2,46* 2,44-2,54* 2,44-2,54*
      Height m 2,51 2,74 2,64 2,77 2,69 2,83 3,02 2,70 3,23
      PTO RPM 540 540 540 540 540 540 540 540 540
      Tractor power requirement HP (kW) 82 (60) 82 (60) 85 (62) 85 (62) 102 (75) 102 (75) 102 (75) 112 (82) 109 (80)
      Tyre size 400/45
      L 17.5
      (2 x)
      400/45
      L 17.5
      (2 x)
      235/75
      R 17.5
      (4 x)
      235/75
      R 17.5
      (2 x.)
      435/50
      R 19.5
      (2 x)
      435/50
      R 19.5
      (2 x)
      435/50
      R 19.5
      (2 x)
      435/50
      R 19.5
      (2 x)
      435/50
      R 19.5
      (2 x)

      .

      Solomix 2 VLH-T 1600L  1800 2000 2000L 2400 2400L 2800
      Capacity m3 16 18 20 20 24 24 28
      Length m 7,52 7,56 7,61 7,99 7,68 8,08 8,18
      Width m 2,29-2,46* 2,29-2,46* 2,29-2,46* 2,44-2,54* 2,44-2,54* 1,99 2,54
      Height m 2,74 2,87 3,06 2,74 3,27 3,02 3,33
      PTO RPM 540 540 540 540 540 5400/1000 540/1000
      Tractor power requirement HP (kW) 102 (75) 102 (75) 102 (75) 112 (82) 109 (80) 120 (88) 140 (103)
      Tyre size 435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)
      435/50
      R 19.5
      (4 x)

      The following applies to both tables:
      * Width dimensions vary according to discharge unit
      Alternative height dimensions are available on request. Ask your dealer about the available options.
