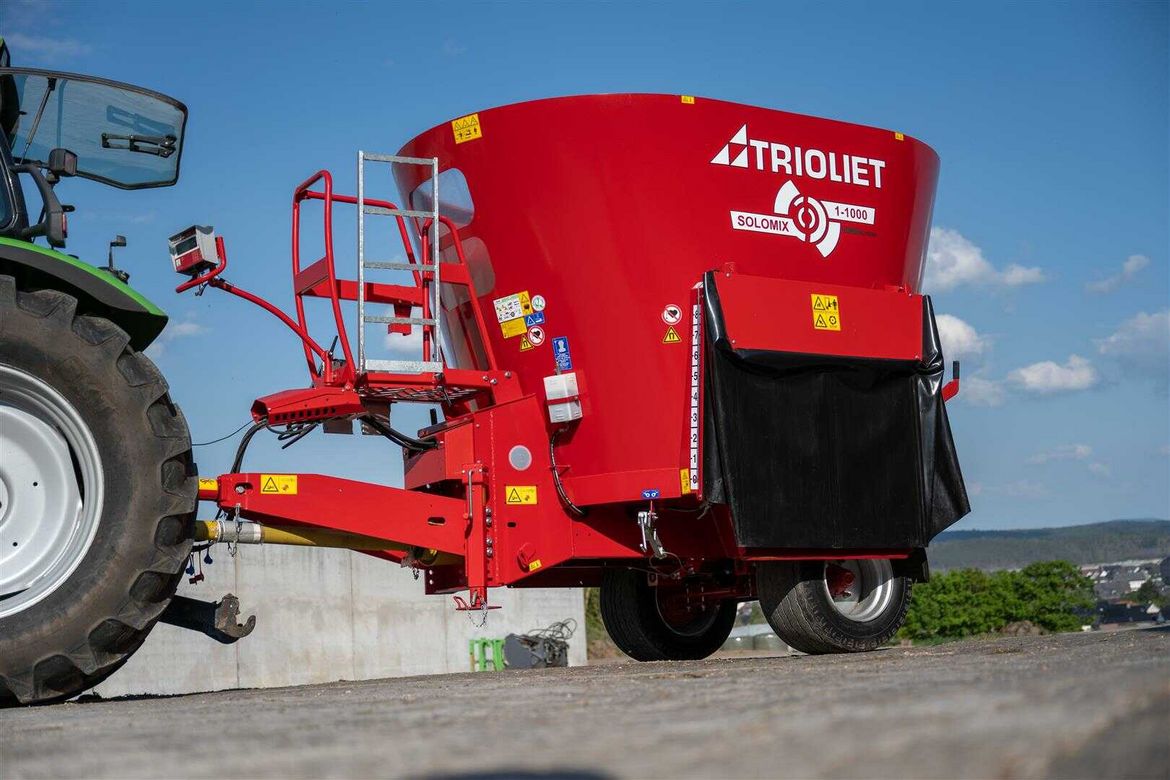

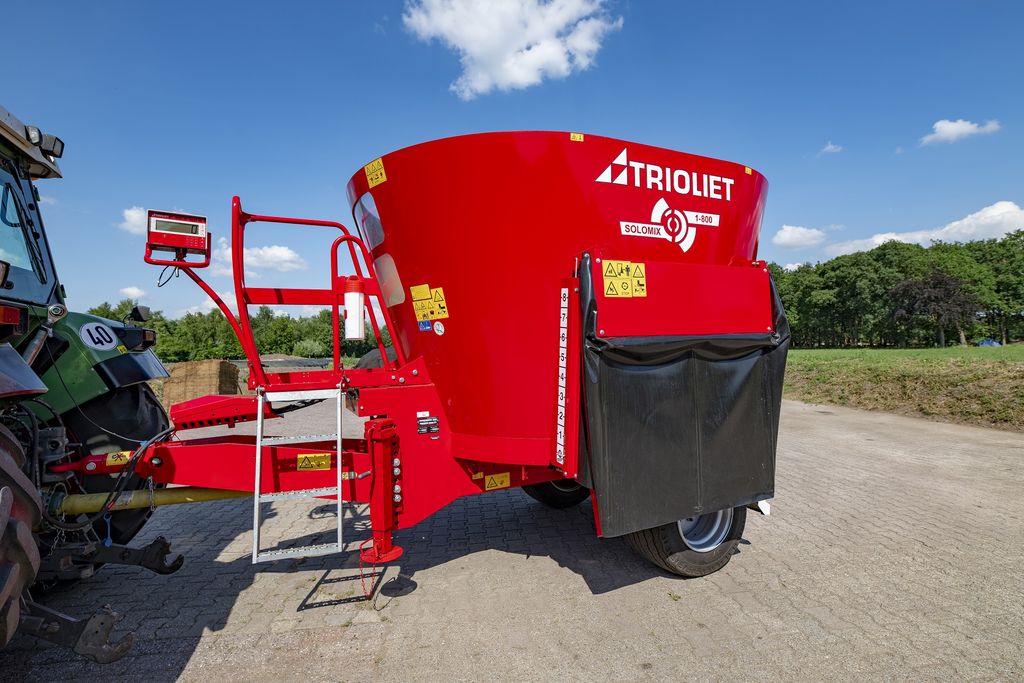

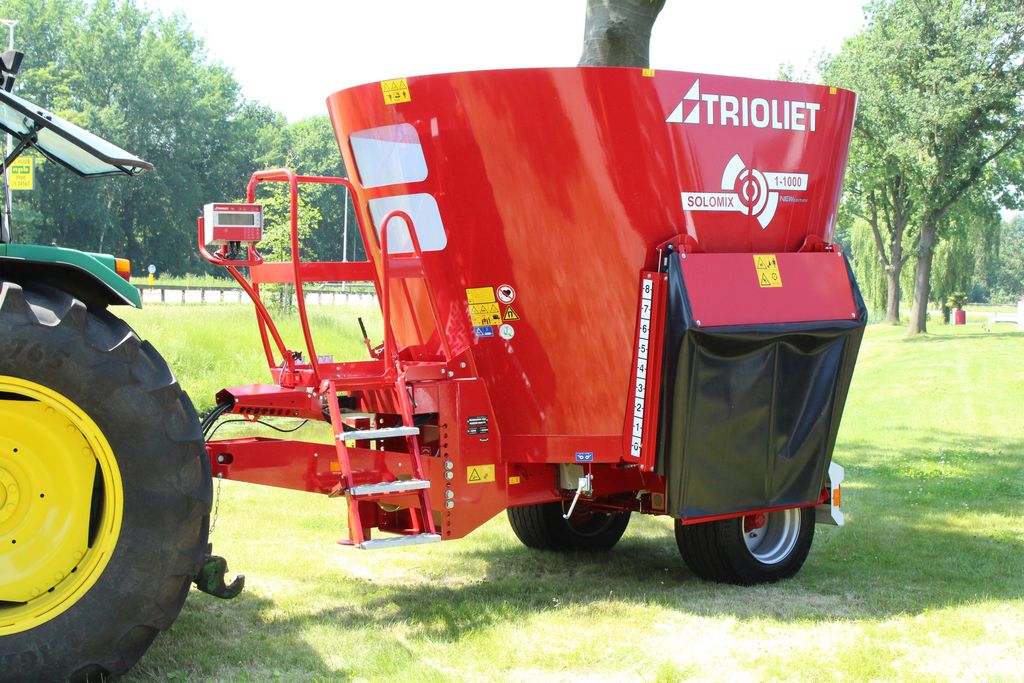

Solomix 1 ZK Feed mixer

    The renewed Solomix 1 ZK(L) is a compact diet feeder, featuring a single vertical auger and a hydraulic discharge slide on both sides. This trailed feed mixer is suitable for both large and small-scale livestock breeders and is available in volumes from 5-14 m³. The Solomix 1 ZK is available in a range of different heights. The exceptional simplicity of this mixer feeder means any maintenance costs are minimal, while the machine is furthermore extremely easy to use. Click here to learn about all the unique Solomix features or read more about the importance of the correct loading order for well-mixed rations.

    Capacity 5-14 m³
    Discharge type Side discharge door
    Model Trailed
    Strawblower No

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors

      Share

      Photos

      Video

      Standard features

      • One Twin Stream vertical auger (15 mm flighting/18 mm wings)
      • One or two restrictor blade(s)
      • Wide-angle PTO shaft
      • Adjustable and reversible drawbar for top connection with 40 mm drawbar eye (European standard) (800/1400)
      • New, in height adjustable arm for the weighing indicator
      • Drawbar for top connection with 40 mm drawbar eye (European standard)
      • Directly operated by tractor hydraulics
      • Two side discharge doors
      • Wear ring
      • With hydraulic brakes (not for 500 ZK)
      • Manual adjustable discharge chutes (800-1400)
      • New protection and cover for hydraulic hoses and wires with storage possibility
      • Trioform auger knives short
      • Two Large single wheels
      • Side doors with rounded edges for better discharge (700/900)
      • Flexible and spacious side door covers (not 500)
      • Rubber side door covers (500)
      • New platform with stairs and windows (700/900)

      Technical specifications

      Solomix 1 ZK 500 700 800 900  1000 1000L  1200 1200L 1400
      Capacity m3 5 7 8 9 10 10 12 12 14
      Length m 4,16 4.32 4.52 4.43 4.61 4.76 4.67 4.85 4.93
      Width m 2.18 2.29 2.47 2.28 2.46 2.70 2.47 2.70 2.70
      Height m 2.16 2.40 2.50 2.77 2.78 2.49 2.97 2.77 3.02
      PTO RPM 540 540 540 540 540 540 540 540 540
      Tractor power requirement HP (kW) 55 (40) 55 (40) 66 (48) 60 (44) 68 (50) 75 (55) 75 (55) 82 (60) 82 (60)
      Tyre size (2x) 10.0/75-15.3 340/55-16 400/45
      L 17.5
      340/55-16 400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5

      * Alternative height dimensions are available on request. Ask your dealer about the availble options.
