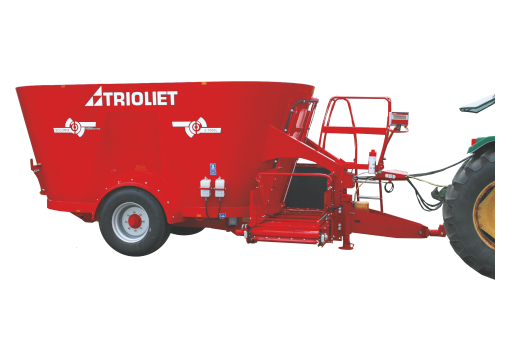

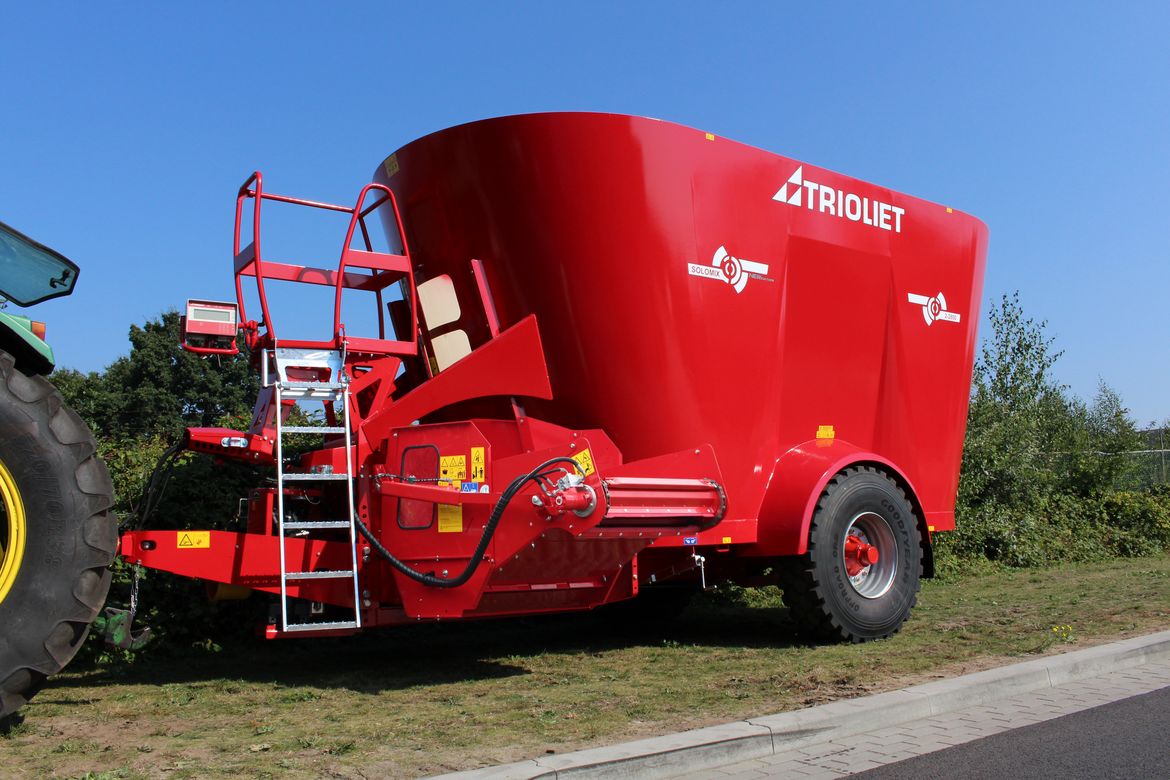

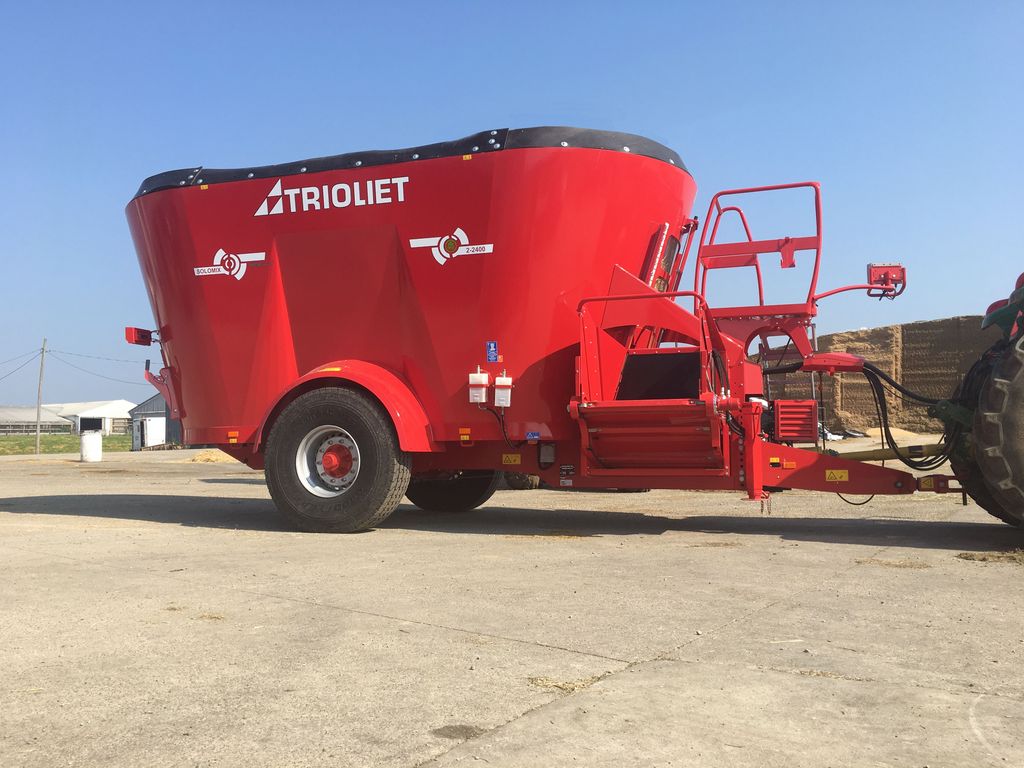

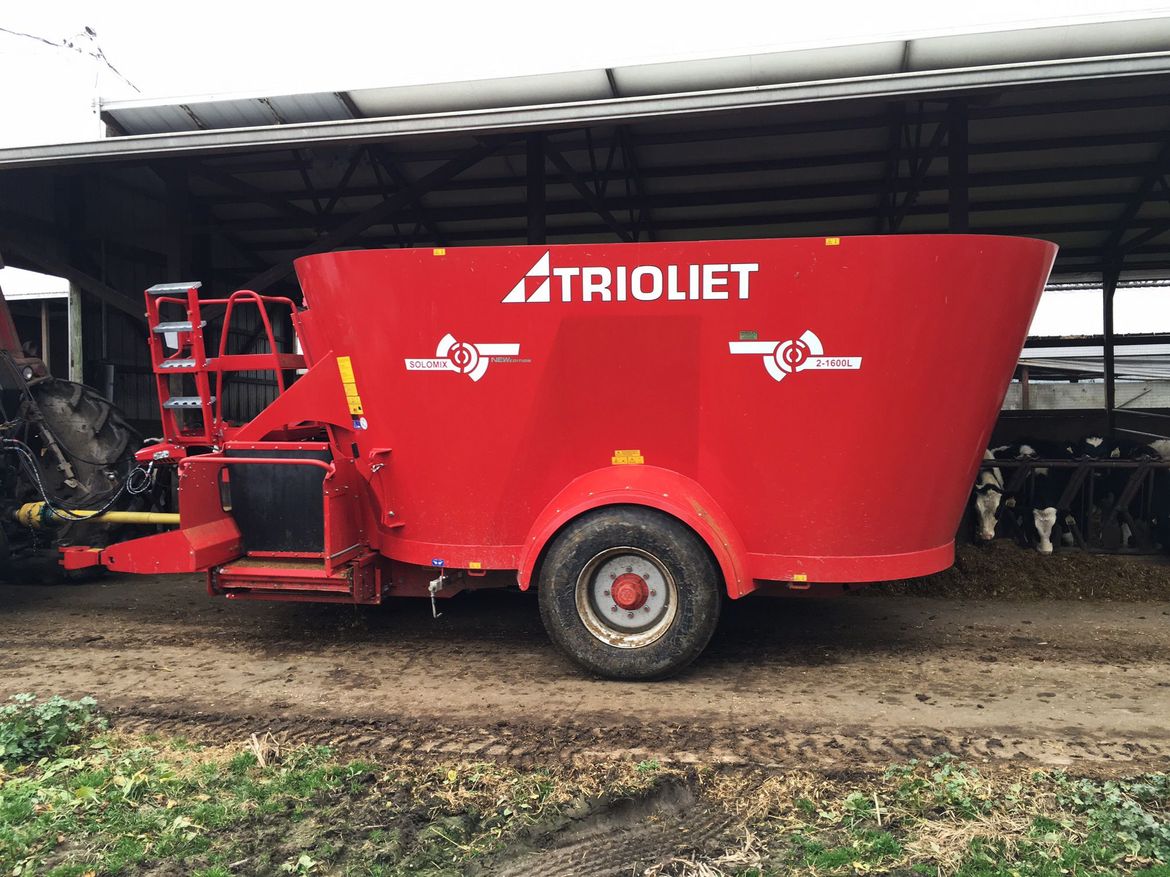

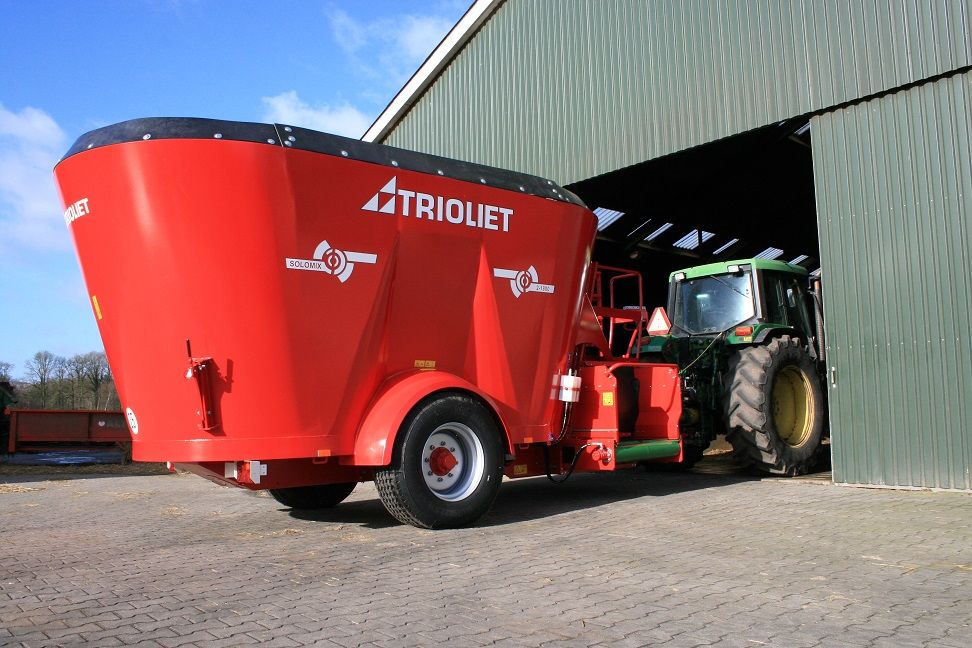

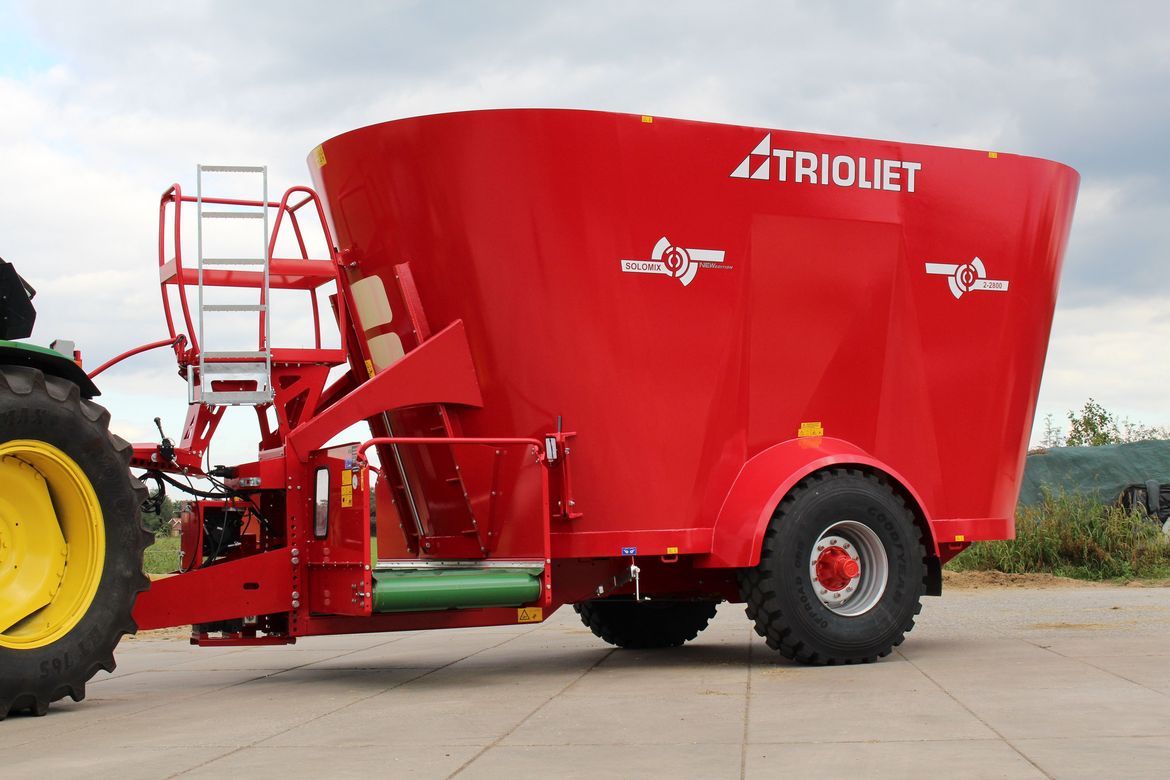

Solomix 2 VLL Feed mixer

    New design feed mixer with 2 augers and a cross conveyor belt (B) or cross conveyor chain (K) at the front (or optionally at the rear). There are also options for a feed trough such as a curved cross conveyor chain at the front with side shift (C) or a cross conveyor chain in combination with a retractable extension chain (S). This type of machine has a deep mixing tub. The wheels are positioned outside the mixing tub. This keeps the machine relatively low, so it is suitable for low sheds. The new design of the mixing tub enables mixing in both a horizontal and vertical direction, the so-called Dual Flow principle. Click here for an overview of the unique characteristics of our feed mixers

    attributes

    Capacity 10-28 m³
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Two Twin Stream augers (15 mm flighting / 18 mm wings) (1000/1200)
      • Two Twin Stream augers (22 mm flighting / 25 mm wings) (1200L-2800)
      • Two (reversible) restrictor blades
      • Front conveyor belt (w=0,75) (1000-1200)
      • Wide-angle PTO shaft
      • Wide discharge unit with conveyor belt or (curved) chain conveyor, for discharge at both sides (B,K,C)
      • Wide chain conveyor with in height adjustable chain extension on right hand side (S)
      • Adjustable and reversible drawbar with 40 mm drawbar eye (European standard)
      • Hydraulic brake system
      • Two large single wheels
      • Wear ring (1200L-2800)
      • Reduction gearbox standard with cooling system (2800)
      • Control by bowden cable
      • Trioform auger knives short
      • Dual Flow: Improved shape of the mixing tub and offset inserts (1200L-2800)
      • Larger discharge door with rounded edges for better discharge (1200L-2800)
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility (1200L-2800)
      • Two windows in discharge unit (1200L-2800)

      Technical specifications

      Solomix 2 VLL 1000 1200 1200L 1400  1600 1600L 1800 2000 2000L 2400 2800
      Capacity m3 10 12 12 14 16 16 18 20 20 24 28
      Length m 5,56 5,63 6,50 6,58 6,64 7,09 7,13 7,20 7,60 7,68 7,78
      Width* m 2,14 2,15 2,29-2,46* 2,29-2,46* 2,29-2,46* 2,44-2,54* 2,44-2,54* 2,44-2,54* 2,85 2,85 2,85
      Height m 2,40 2,67 2,46 2,77 2,94 2,58 2,74 2,95 2,76 3,00 3,36
      PTO RPM 540 540 540 540 540 540 540 540 540 540 1000
      Tractor power requirement HP (kW) 66 (48) 66 (48) 75 (55) 75 (55) 82 (60) 85 (62) 85 (62) 96 (70) 102 (75) 109 (80) 120 (88)
      Tyre size (2x) 315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      19,5
      R 22.5
      19,5
      R 22.5
      19,5
      R 22.5

      * Width dimensions vary according to discharge unit.
      Alternative height dimensions are available on request. Ask your dealer about the available options.
