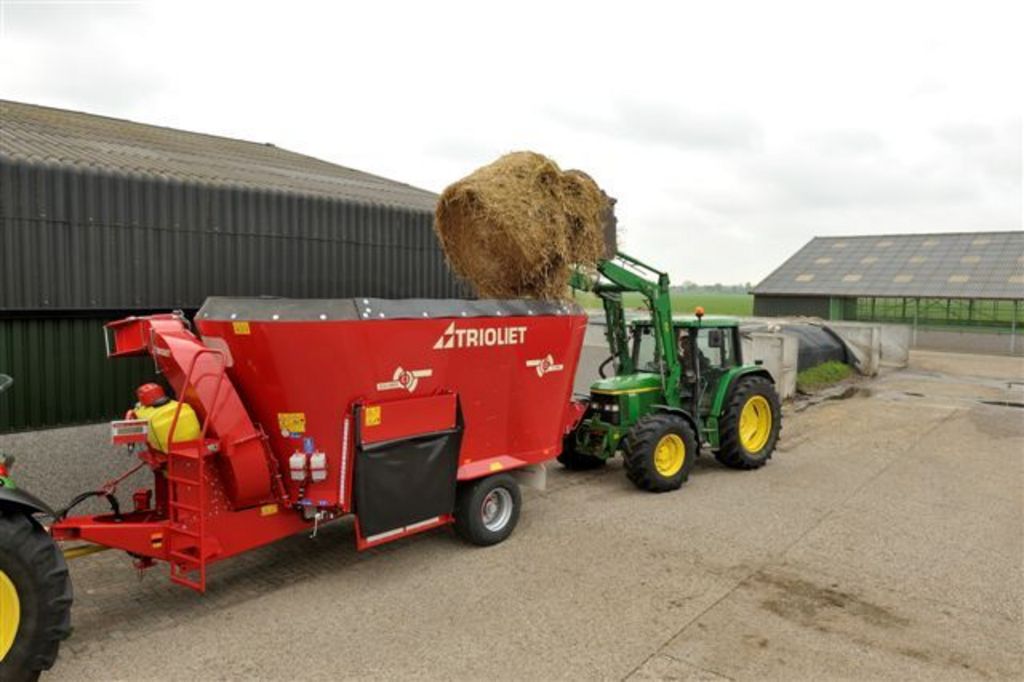

Solomix P2 Feed mixer with strawblower

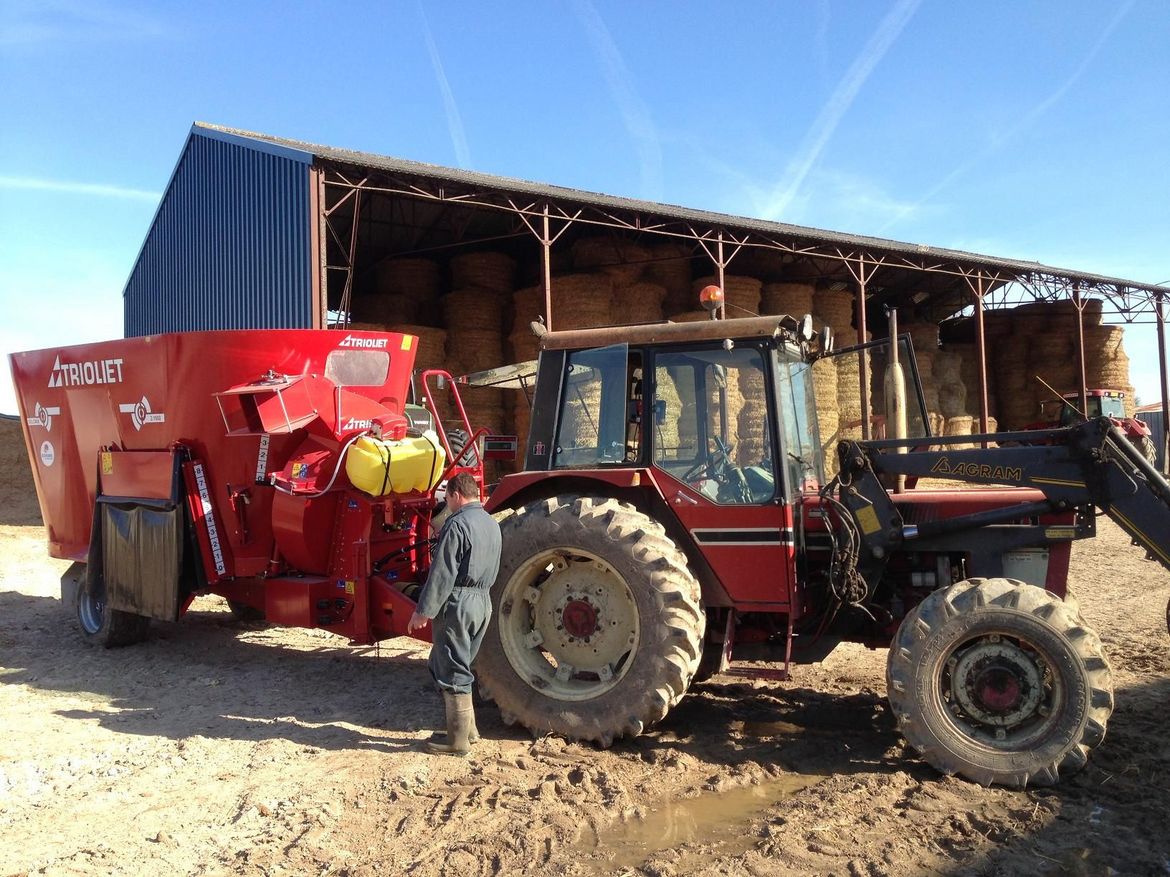

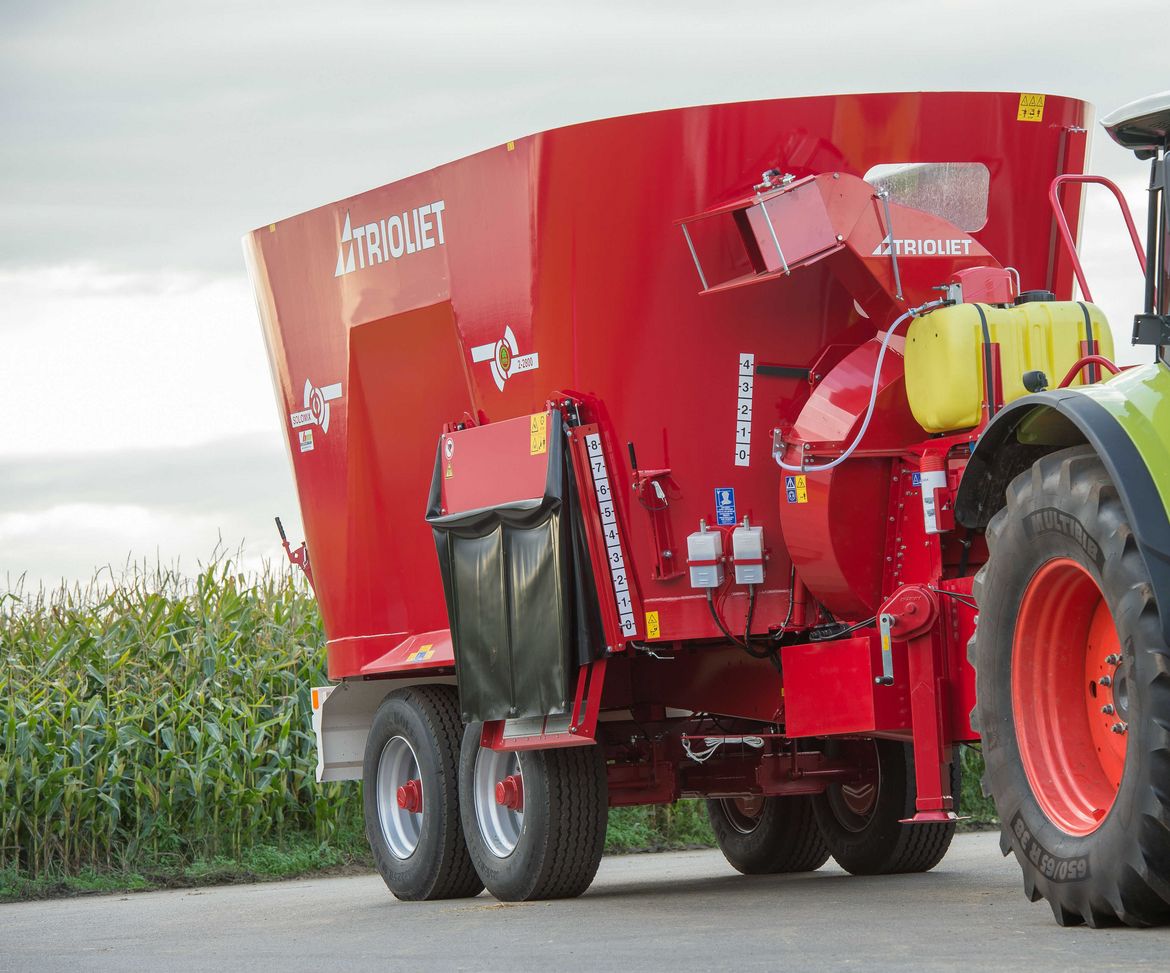

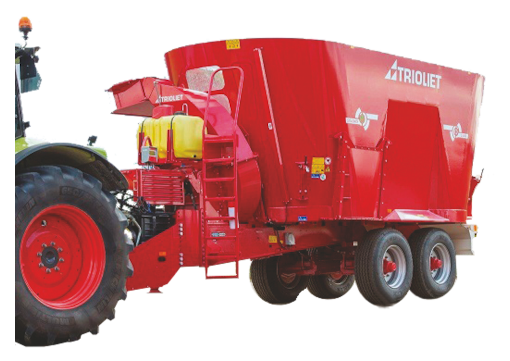

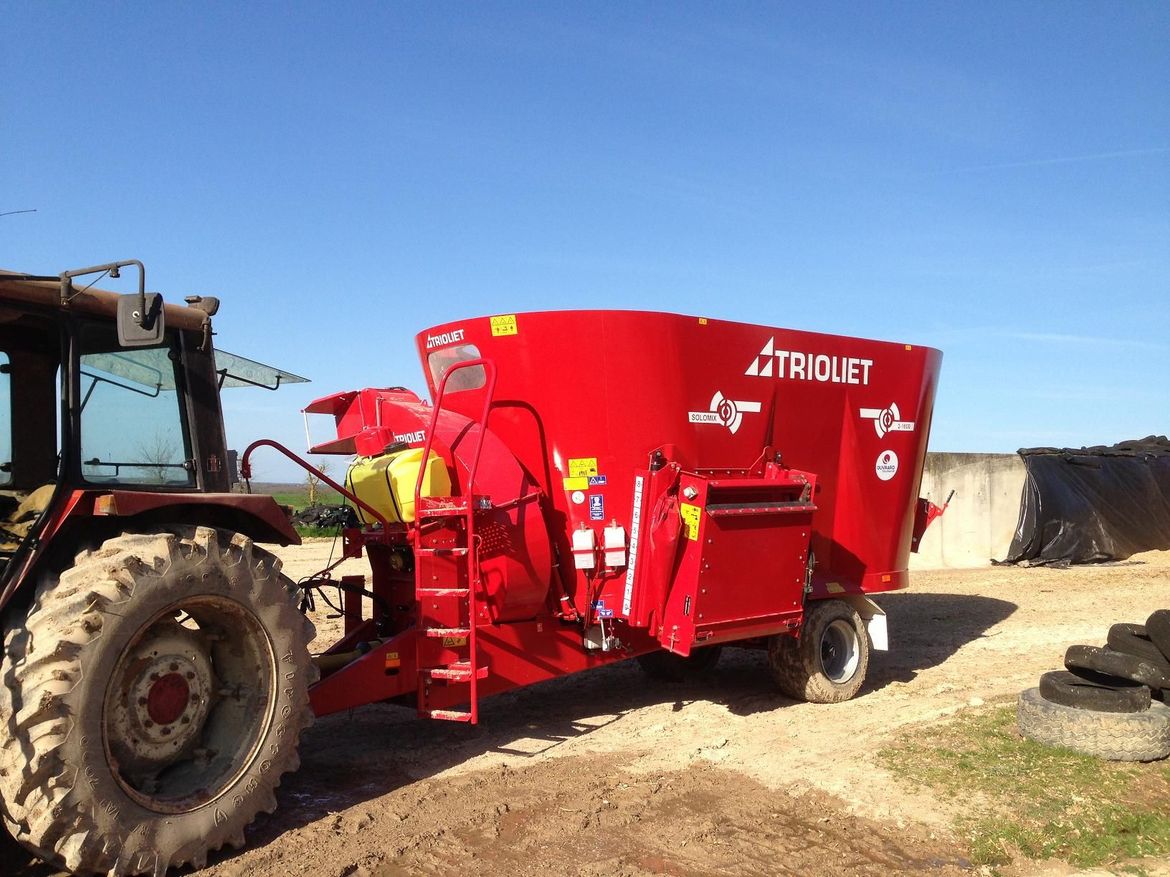

    The Solomix P2 is a (two auger) diet feeder with straw blower unit. This feed mixer allows you not only to feed your cattle a balanced ration, but also to spread their stall with straw, to provide them with the comfort they require. Its compact dimensions make the Solomix P easy to manoeuvre and use in stalls with narrow feeding alleys and a low height clearance. This advantage becomes even more apparent when a smaller tractor is used. The Solomix P2 can furthermore be equipped with an optional dust control system. By wetting the straw, this system ensures that fewer dust particles and microorganisms are floating around, which is not only more comfortable, but also more hygienic. The Solomix P2 has 2 mixing augers. Click here to learn about all the unique Solomix features.

    attributes

    Capacity 12-28 m³
    Discharge type Side discharge door
    Model Trailed
    Strawblower Yes

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

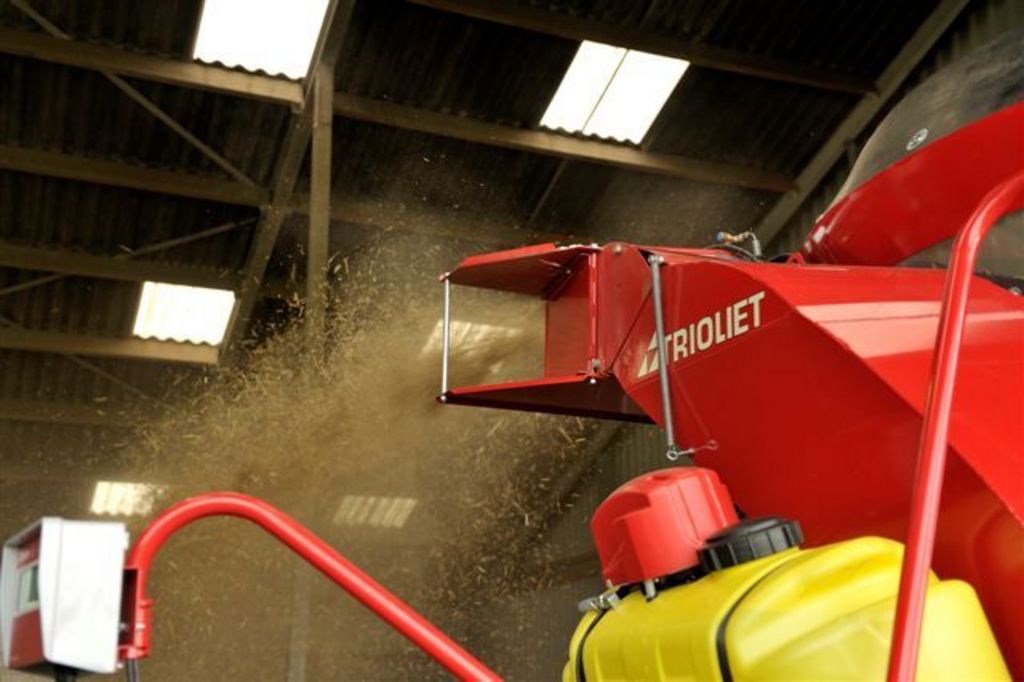

      • Mechanically driven (by V-belts) straw bedder at front

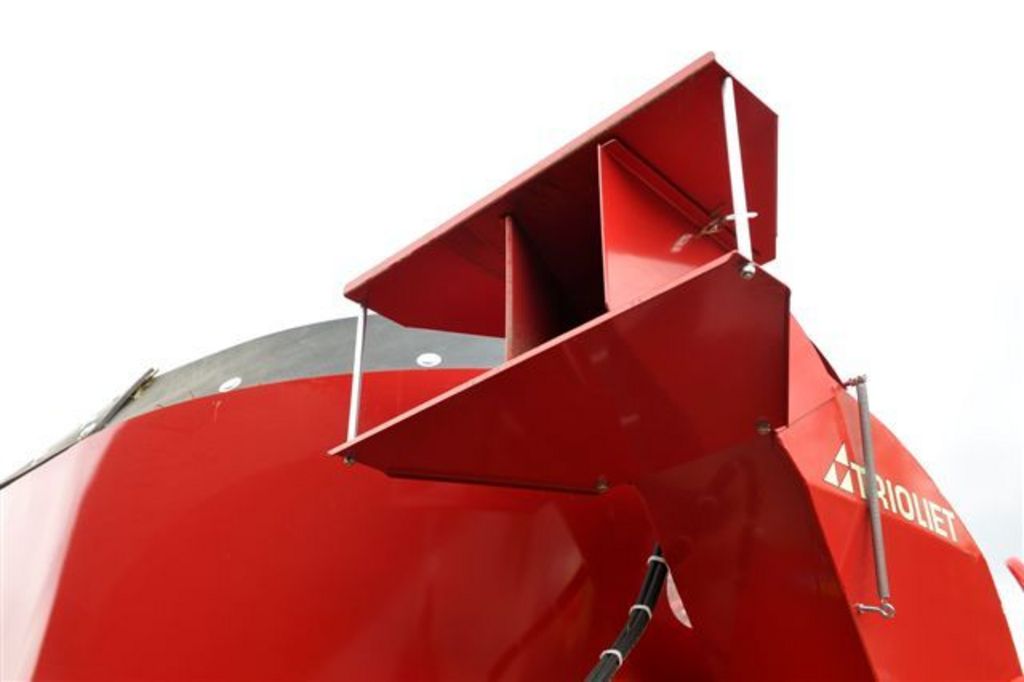

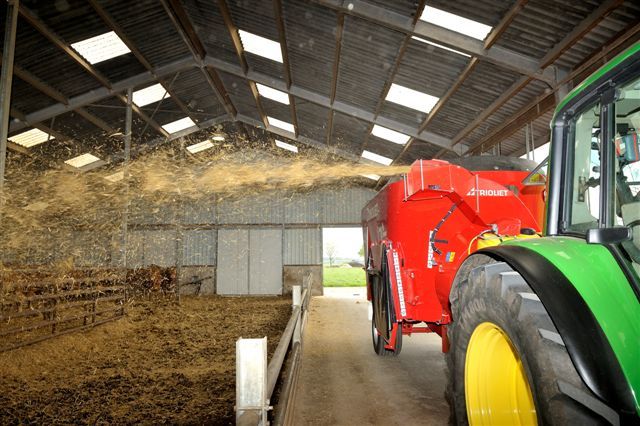

      • Low blower pipe for spreading width up to 25 m
      • Two Twin Stream augers (22 mm flighting / 25 mm wings)
      • Constant velocity PTO shaft

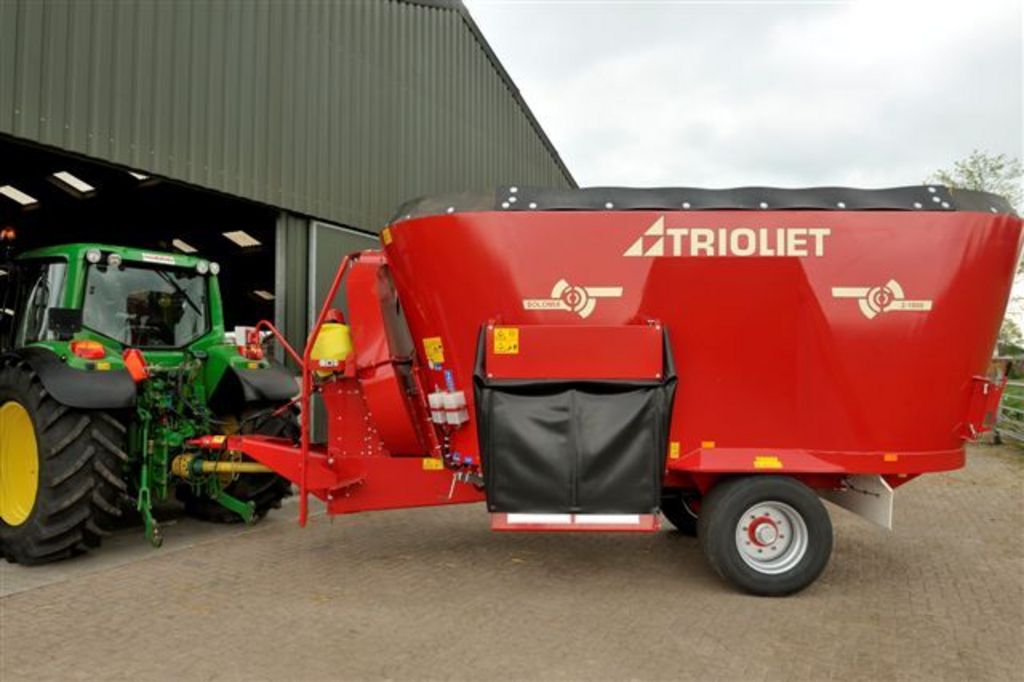

      • Two side discharge doors with rounded edges for better discharge in front
      • Adjustable and reversible drawbar with 40 mm drawbar eye (European standard) for 1200-2400
      • Adjustable and reversible drawbar, standard low mounted with 50 mm drawbar eye for 2800
      • Two manual restrictor blades
      • Right, left or dual discharge
      • Wear ring
      • Manual adjustable discharge chutes
      • Flexible and spacious side door covers
      • Electric operation
      • Two wide single wheels (1200-2000) or four single wheels on a walking tandem (2400-3000)
      • With hydraulic brakes
      • Trioform auger knives short

      Technical specifications

      Type 1200 ZK 1600 ZK 1800 ZK 2000 ZK 2400 ZK-T 2400L ZKX 2800 ZKX
      Solomix P2 Two side discharge doors + straw bedder
      Capacity m3 12 16 18 20 24 24 28
      Length m 6,29 6,66 7,16 7,21 7,28 7,95 8,02
      Width  m 2,29 2,38 2,49 2,49 2,54 2,78 2,77
      Height m 2,51** 2,77 2,83** 3,02 3,27 3,04 3,44
      PTO RPM 540 540 540 540 540 1000 1000
      Tractor power requirement HP (kW) 82 (60) 85 (62) 102 (75) 102 (75) 109 (80) 120 (88) 130 (95)
      Tyre size  400/45
      17.5
      2 x
      400/45
      L17.5
      2 x
      435/50
      R 19.5
      2 x.
      435/50
      R 19.5
      2 x
      435/50
      R 19.5
      2 x
      435/50
      R 19.5
      4 x
      375/65
      R 22.5
      4 x


      * Alternative height dimensions are available on request. Ask your dealer about the available options.
      ** Note: Side door will rise 27 cm (1200 ZK) respectively 7 cm (1800 ZK) above the tub
      ***Note: Strawblower rises above the tub
