Solomix 1 VLH Feed mixer

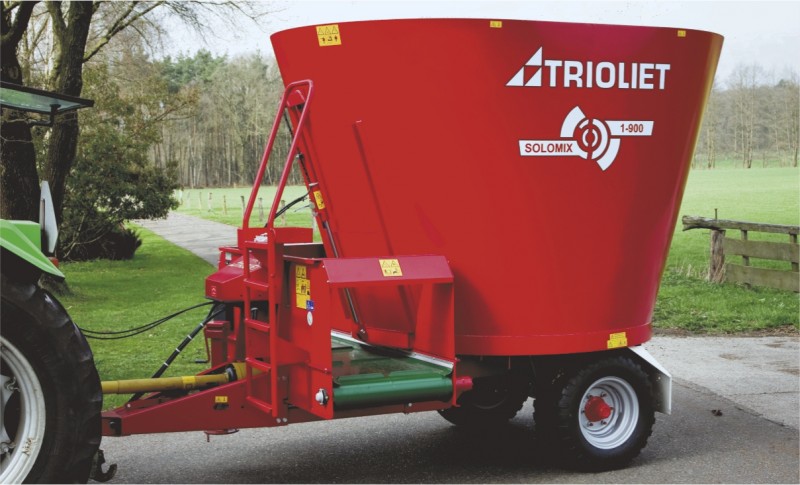

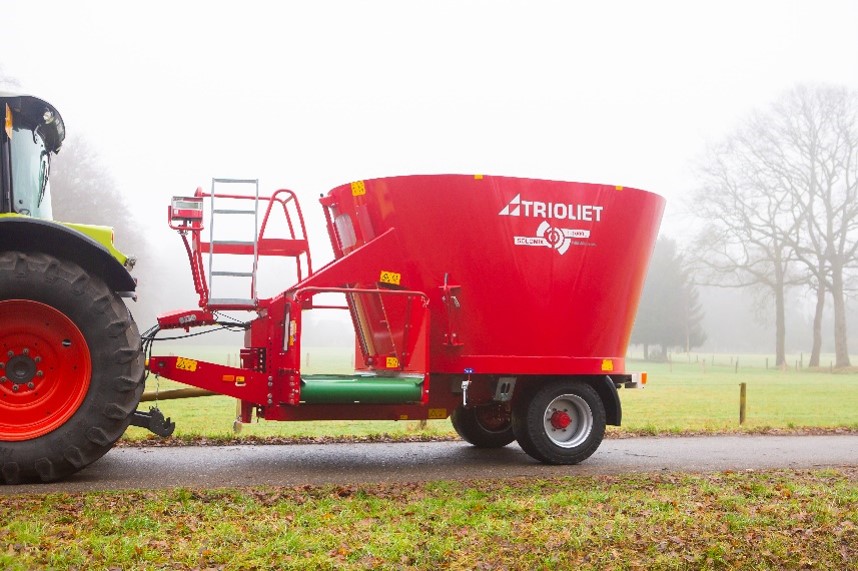

    The Solomix 1 VLH-B is a compact diet feeder, featuring a single vertical auger and a cross conveyor belt (B) in the front. The mixer wagon is also available with a curved (C) cross conveyor chain (K). This trailed feed mixer is suitable for both large and small scale livestock breeders and is available in volumes from 8 - 14 m³. The Trioform auger knives are mounted at horizontal position on the auger flighting. This ensures an optimum cutting performance with less resistance in the feed (fuel saving). The patented Trioform auger knives are self-sharpening and the special shape lead up to a higher strength and long life. Its specific characteristics and high quality make the mixer feeder wagon unique, efficient and very easy to work with. Click here to learn about all the unique Solomix features.

    Capacity 8-14 m³
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors

      Share

      Photos

      Video

      Standard features

      • 1 Twin Stream auger (15 mm flighting/18 mm wings)
      • 2 Restrictor blades
      • Two wide single wheels
      • Wide-angle PTO shaft
      • Adjustable and reversible drawbar for top connection with 40 mm drawbar eye (European standard)
      • Control by bowden cable
      • Wear ring
      • With hydraulic brakes
      • Trioform auger knives short
      • Tub, auger(s), chassis and wear ring out of St. 52

      Technical specifications

      Solomix 1 VLH 800 1000 1000L 1200 1200L 1400
      Capacity m3 8 10 10 12 12 14
      Length m 4,74 4,82 4,99 4,87 5,08 5,16
      Width m 2,30 2,29-2.30 2,44-2-54 2,29-2.30 2,44-2.54 2.44-2.54
      Height* m 2.50 2.78 2.49 2.94 2.78 3.02
      PTO RPM 540 540 540 540 540 540
      Tractor power requirement HP (kW) 66 (48) 68 (50) 75 (55) 75 (55) 82 (60) 82 (60)
      Tyre size (2x) 400/45
      L 17.5
      400/45
      L 17.5

      400/45
      L 17.5

      400/45
      L 17.5

      400/45
      L 17.5
      400/45
      L 17.5

      ​​​​​​* Alternative height dimensions are available on request. Ask your dealer about the available options.
