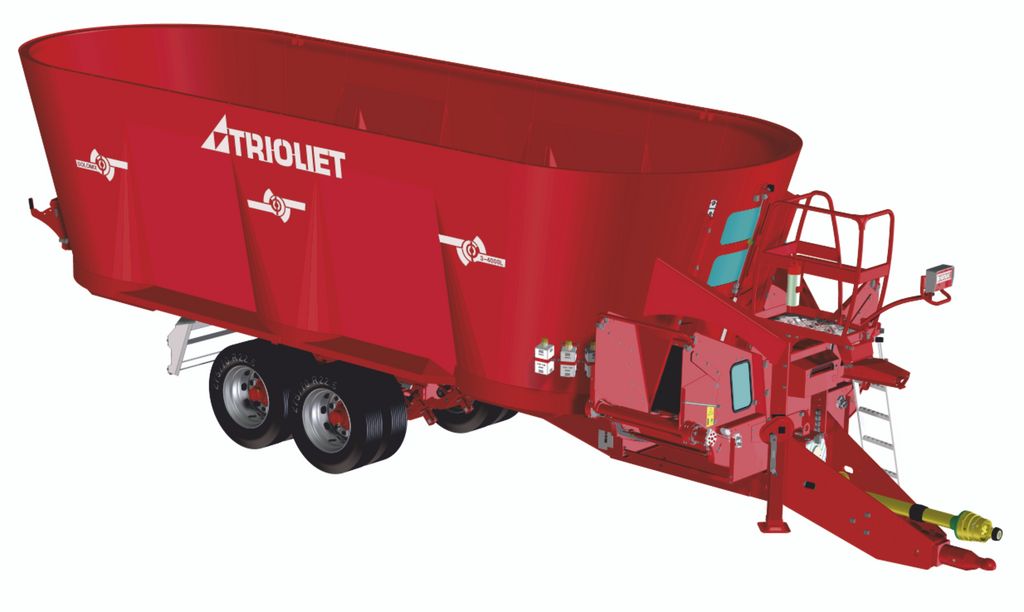

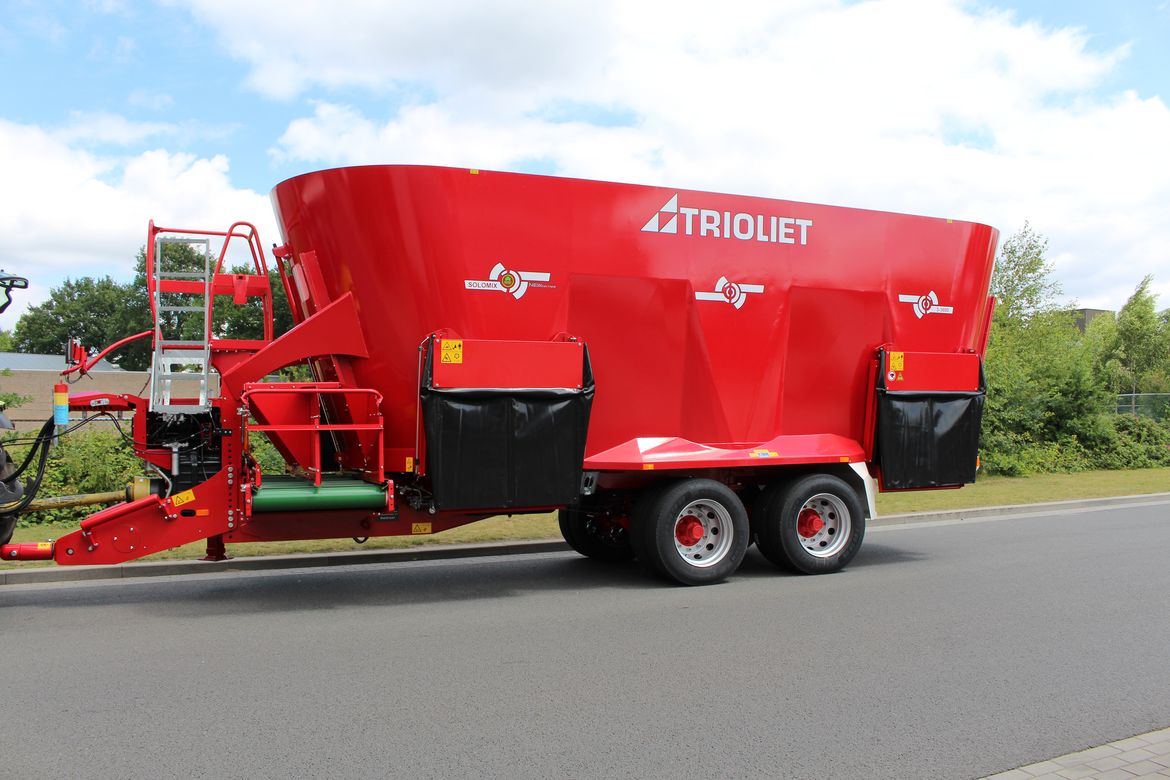

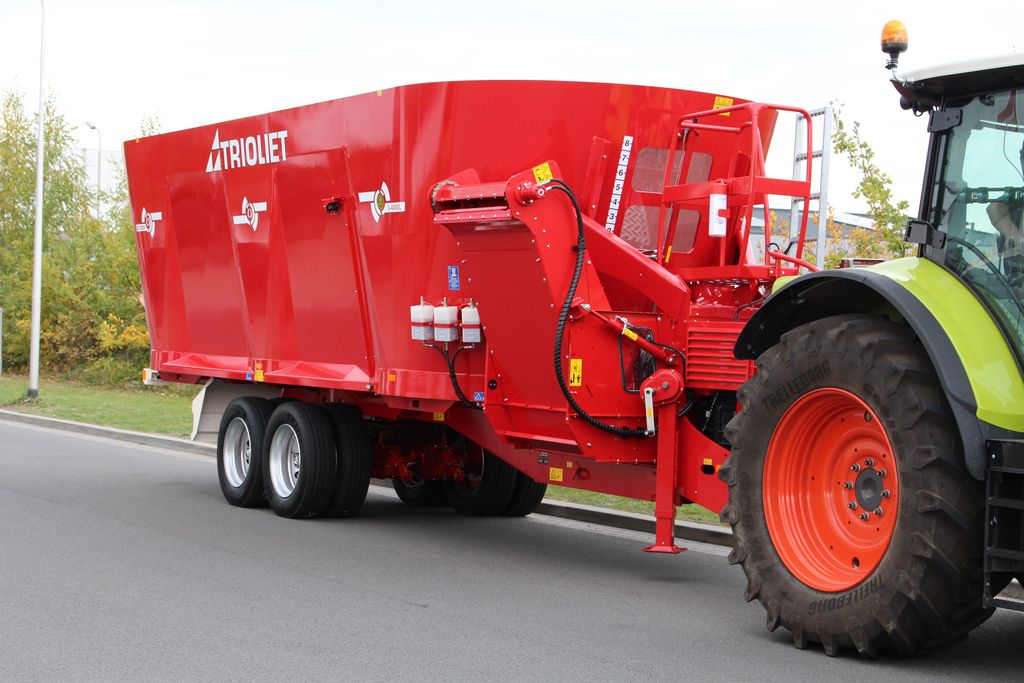

Solomix 3 VLX Feed mixer

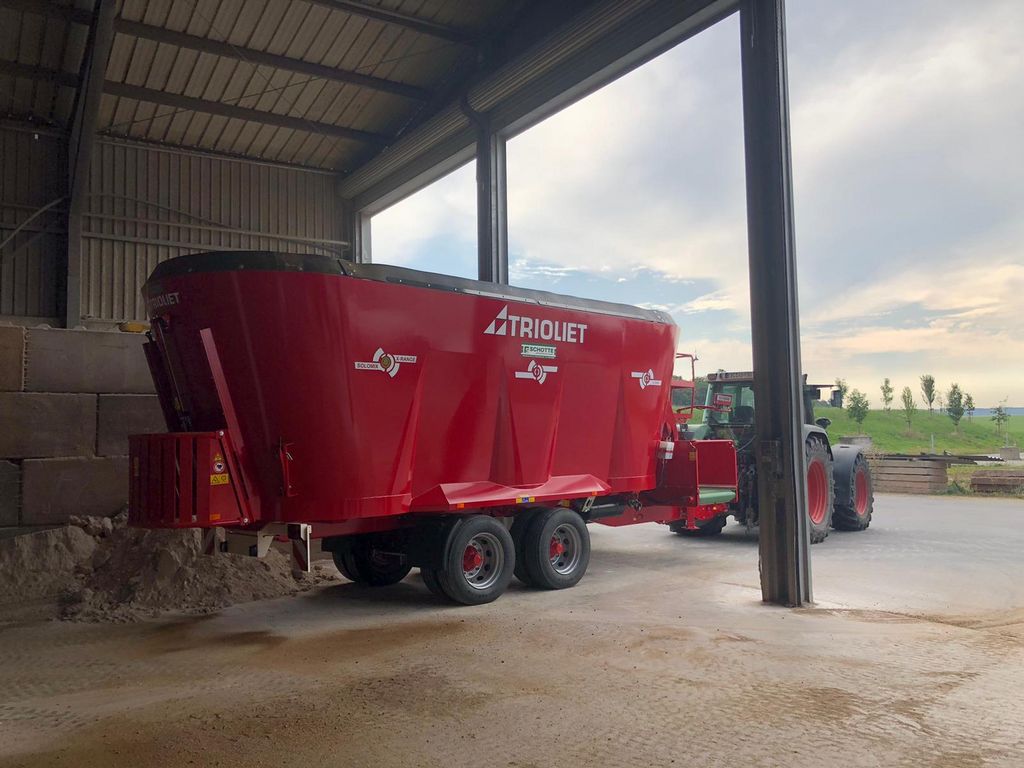

    The Solomix 3 VLX is a heavy-duty feed mixer wagon with a wider cross conveyor belt or (curved) cross conveyor chain and three vertical augers. This trailed feed mixer wagon is well-suited to dairy farms that wish to process large quantities of feed in a short space of time. The wagon is available in sizes from 36 to 46 m³. Whether processing small or large quantities, feed is mixed quickly to produce a mix of uniform structure. Click here for an overview of the unique characteristics of our feed mixers.

    attributes

    Capacity 36-46 m³
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Three Heavy Duty Twin stream augers (22 mm flighting / 25 mm wings) with Trioform auger knives short
      • Two reversible restrictor blades
      • Adjustable low drawbar with 50 mm ring hitch (European standard) 3600 Tandem
      • Adjustable low drawbar with K80 ball coupler 4000L-4600 Tandem
      • Adjustable low drawbar with K80 ball coupler and steering cylinders 4600 TR
      • Wide angle PTO-shaft with shearbolt

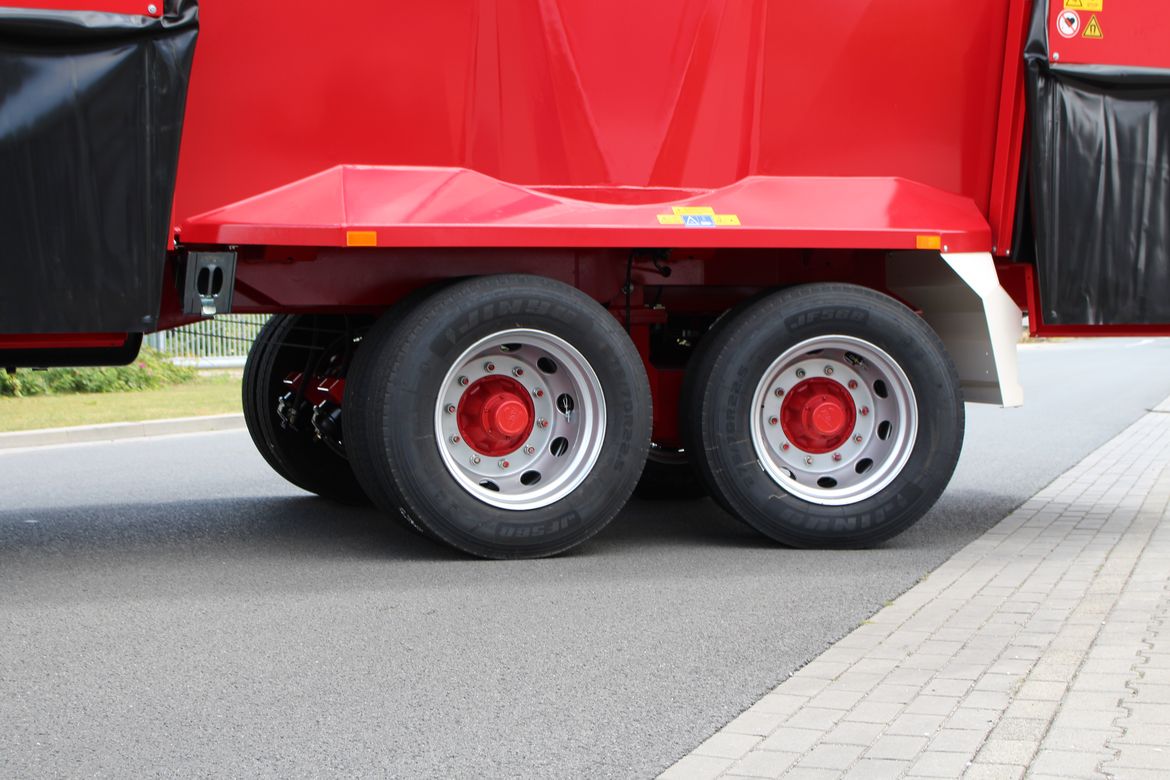

      • Walking tandem axle with twin wheels (3600/4000L/4600)
      • Tridem axle with forced steering (front and rear axle) on 6 single wheels (4600 Tridem)
      • Reduction gearbox standard
      • Hydraulic brake system
      • Control by bowden cable
      • Dual Flow: Improved shape of the mixing tub and offset inserts
      • Large discharge door with rounded edges for better discharge
      • Wear ring
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility
      • Two windows in discharge unit

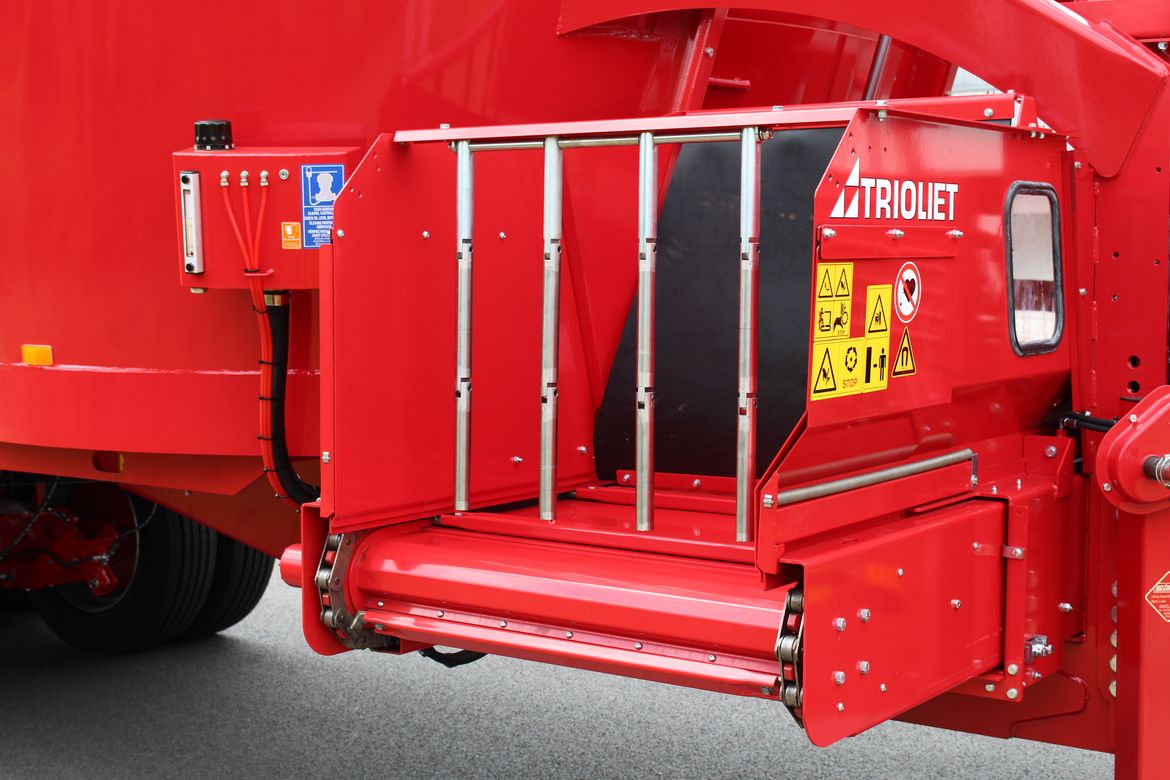

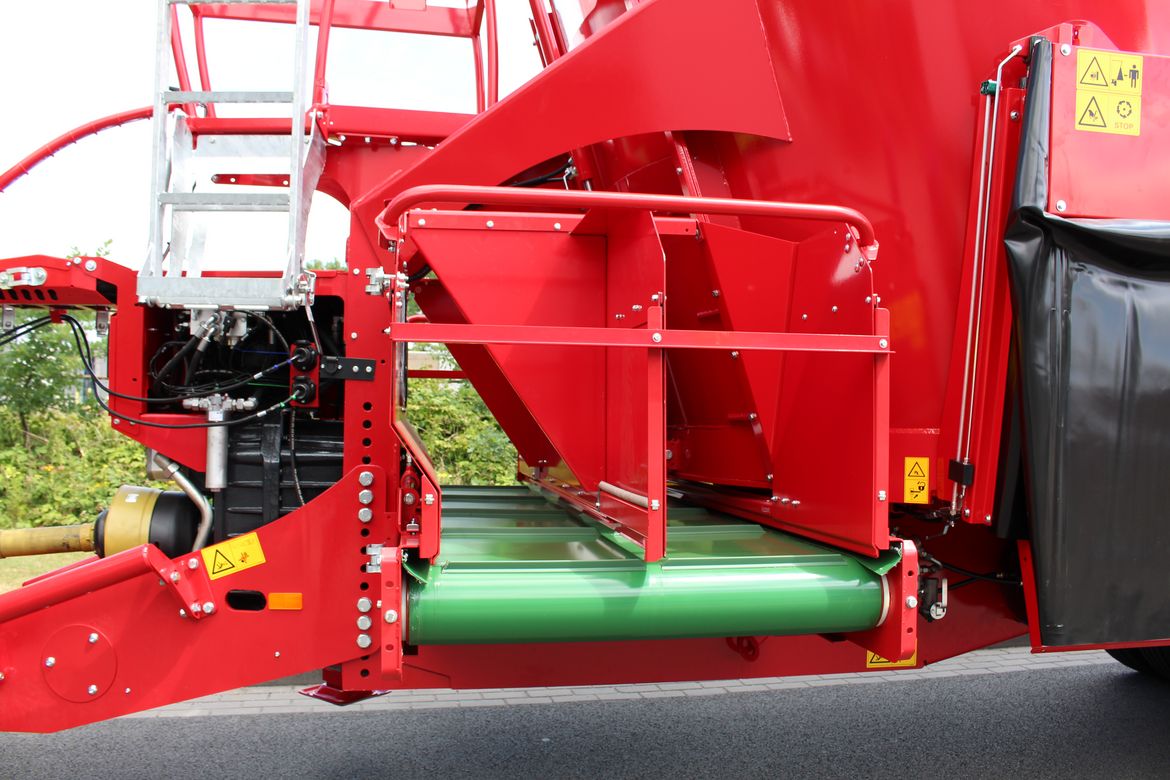

      • Wide discharge unit with conveyor belt (B) or (curved) chain conveyor (C/K) for discharge at both sides
      • Wide chain conveyor with in height adjustable chain extention on right hand side (S)

      Technical specifications

      Solomix 3 VLX 3600 4000L 4600 4600 TR
      Capacity m3 36 40 46 46
      Length m 10,10 10,75 10,83 10,83
      Width m 2,75 2,97 2,97 2,97
      Height m 3,38 3,28 3,61 3,54
      PTO RPM 1000 1000 1000 1000
      Tractor power requirement HP (kW) 177 (130) 191 (140) 204 (150) 204 (150)
      Tyre size 275/70
      R 22.5
      (8 x)
      275/70
      R 22.5
      (8 x)
      315/80
      R 22.5
      (8 x)
      435/50
      R 19.5
      (6 x)

      * Alternative height dimensions are available on request. Ask your dealer about the available options.
