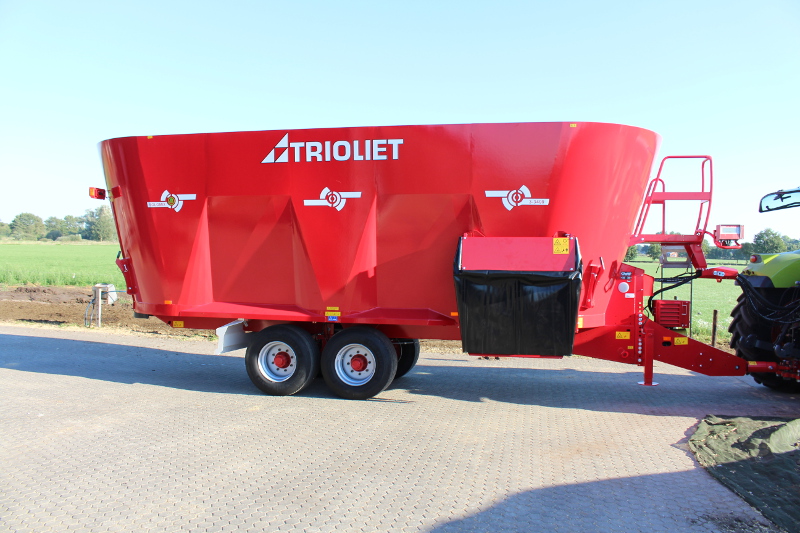

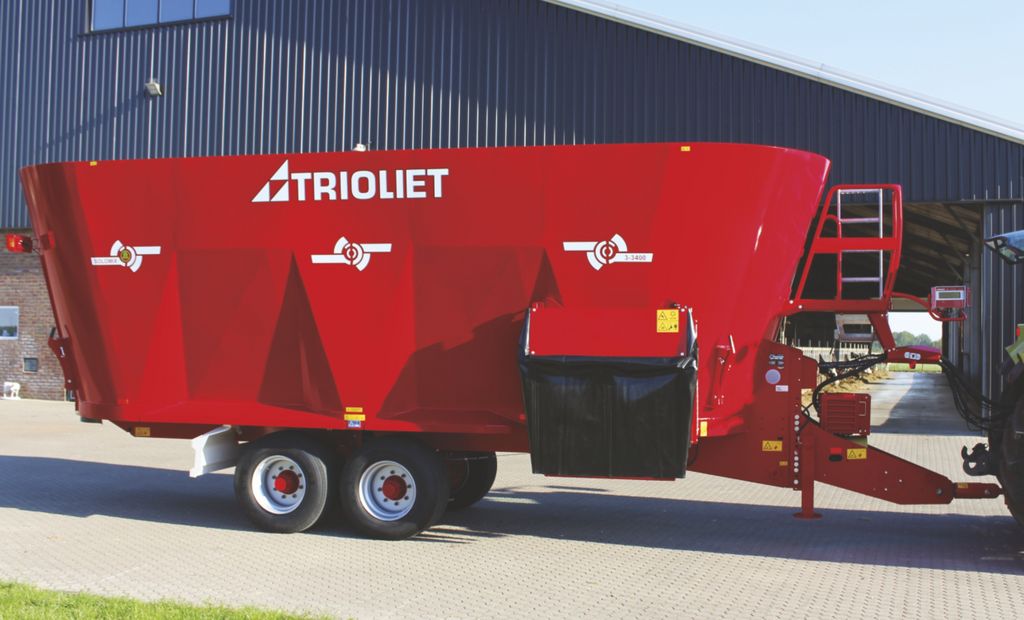

Solomix 3 ZK Feed mixer

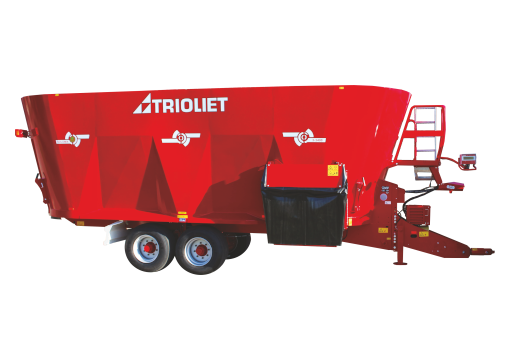

    The renewed Solomix 3 ZK is a mixer feeder with three vertical mixing augers and two side discharge slides (front left and right). The machine is available with a capacity of 27, 30 and 34 m³. Its characteristic features, such as a specially shaped mixing chamber, made-to-measure augers, an adjusted auger speed and exceptionally high quality, ensure reliability, healthy cattle and savings in terms of time and costs. Click here to learn about all the unique Solomix features.

    attributes

    Capacity 27-34 m³
    Discharge type Side discharge door
    Model Trailed
    Strawblower No

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • 540 RPM drive line
      • Three Twin Stream augers (22 mm flighting / 25 mm wings)
      • Two reversible restrictor blades
      • Wide-angle PTO-shaft with shearbolt
      • Adjustable and reversible drawbar, standard low mounted with 50 mm drawbar eye (40 mm drawbar eye if mounted high)
      • Tandem axle with 4 single wheels
      • Two side discharge doors with rounded edges for better discharge in front
      • Manual adjustable discharge chutes
      • Flexible and spacious side door covers
      • Directly operated by tractor hydraulics
      • Hydraulic brake system with parking brake
      • Wear ring
      • Trioform auger knives short
      • Dual Flow: improved shape of the mixing tub and offset inserts
      • New platform with stairs and windows
      • New, in height adjustable arm for the weighing indicator
      • Reduction gearbox standard with cooling system (2700L/3000L/3400)
      • Tandem axle with 4 single wheels (2700L/3000L/3400)
      • Windows in front of the mixing tub (2700L/3000L/3400)
      • Intended to be used up till 8 loads per day (2700L/3000L/3400)

      Technical specifications

      Solomix 3 ZK 2700L 3000 3000L 3400
      Capacity m3 27 30 30 34
      Length m 9,38 8,53 9,44 9,51
      Width m 2,54 2,54 2,54 2,54
      Height m 2,90 3,30 3,10 3,35
      PTO RPM 1000 540 1000 1000
      Tractor power requirement HP (kW) 140 (103) 130 (95) 150 (110) 160 (117)
      Tyre size (4 x.) 435/50
      R 19.5
      435/50
      R 19.5
      435/50
      R 19.5
      435/50
      R 19.5

      * Wagons in alternative heights are available on request.
